TinkerCell Core 1.0
TinkerCell's Core library providing all basic functionalities
|
|
TinkerCell Core 1.0
TinkerCell's Core library providing all basic functionalities
|
Classes | |
| class | PopupListWidgetDelegateDialog |
| dialog for list widget More... | |
| class | PopupListWidgetDelegate |
| delegate used inside the SimpleInputWindow More... | |
| class | AbstractInputWindow |
| Classes that inherit from this class can be used as GUI windows that provide interface to C programs (library files). More... | |
| class | SimpleInputWindow |
| Used to create an input window that can receive user inputs for C plugins. More... | |
| class | Core_FtoS |
| Function to Signal converter for MainWindow. More... | |
| class | C_API_Slots |
| A set of slots that are called by C libraries. More... | |
| class | CodeEditor |
| class | LineNumberArea |
| class | ArrowHeadItem |
| A node graphics item that is used to draw arrow heads on connection items. More... | |
| class | ConnectionGraphicsItem |
| A graphics nodes item that draws connection between two or more nodes and the arrow heads at the ends. More... | |
| class | CommandTextEdit |
| A command-line type text box that other tools can use for scripting interface. More... | |
| class | ConsoleWindow |
| Used to create an output window that can display outputs. More... | |
| class | ControlPoint |
| A simple circle or square that is used for changing specific locations. More... | |
| class | CThread |
| This class is used to run specific functions inside a C dynamic library as a separate thread. The class can be used to load a library or just run a specific function inside an already loaded library. If the library is loaded by this class, the library will be unloaded upon completion on the function. To prevent the automatic unloading, use the setAutoUnload option. Only four types of functions are supported. More... | |
| class | ProcessThread |
| This class is used to run a process (command + args) as a separate thread as a separate thread. More... | |
| class | DataTable |
| DataTable is a 2D vector with row names and column names. More... | |
| class | ChangeDataCommand |
| This template class allows undo and redo of a change made to a data table. More... | |
| class | Change2DataCommand |
| Changes two different data tables. More... | |
| class | GlobalSettings |
| This class stores global variables such as project names, enables/disabled feature, etc. Use the following static bools to enable or disable features: ENABLE_HISTORY_WINDOW ENABLE_CONSOLE_WINDOW ENABLE_GRAPHING_TOOLS ENABLE_CODING_TOOLS ENABLE_ALIGNMENT_MENU ENABLE_COLOR_TOOLBAR ENABLE_ZOOM_TOOLBAR ENABLE_TEXT_TOOLBAR ENABLE_PYTHON ENABLE_RUBY ENABLE_OCTAVE ENABLE_LOADSAVE_TOOL. More... | |
| class | GraphicsScene |
| The primary task of the graphics scene is to draws items. All interactions with the GraphicsScene is done through MainWindow or NetworkHandle. NetworkHandle provides functions such as move, insert, and remove. MainWindow relays all the signals, such as mouse and key events, from the GraphicsScene. So, there is rarely a need to directly interact with the GraphicsScene. More... | |
| class | GraphicsView |
| GraphicsView class that is used to view the contents of a GraphicsScene. The class inherits from QGraphicsView. More... | |
| class | HistoryWindow |
| This is a small class extending QUndoView that manages a stack of undo commands. More... | |
| class | Unit |
| A unit of measurement. More... | |
| class | ItemFamily |
| This class defines the family of a node or connection. The class contains the icon for the family, family name, and minimal data that defines the family. Each family has a name, which is internally converted to an integer (ID) The ID is used to perform isA checks, thus avoiding repeated string matches. More... | |
| class | NodeFamily |
| This class defines the family of a node. Inherits from ItemFamily. It contains a list of NodeGraphicsItems that is the default for this family of nodes. More... | |
| class | ConnectionFamily |
| This class defines the family of a connection. Inherits from ItemFamily It contains a list ofConnectioGraphicsItems that is the default for this family of connections. More... | |
| class | ItemData |
| This class is used to store information about nodes or connections. It contains a hashtable of data tables, which is used by different tools to store specific data. The versions queue can be used to keep previous versions of the data. More... | |
| class | ItemHandle |
| The ItemHandle represents a complete object in the network, whether it is a node or a connection. The ItemHandle contains the name of the object and pointers to all the QGraphicsItems that are used to represent the object. Tools associated with the object can be stored within the ItemHandle as well. The ItemHandle can also optionally contain an ItemFamily, which can be used to distinguish different types of nodes or connections, if needed. Each ItemHandle can contain one parent. Several functions are available for convinently getting the parents and children of an ItemHandle. More... | |
| class | NodeHandle |
| The handles are used to bring together data and graphics items. Node Handle contains pointers to all the graphics items that belong to it, the tools that apply to this item, the data for this item, and the family that it belongs with. More... | |
| class | ConnectionHandle |
| The handles are used to bring together data and graphics items. Connection Handle contains pointers to all the graphics items that belong to it, the tools that apply to this item, the data for this item, the family that it belongs with, and pointers to nodes connected (in and out) More... | |
| class | DroppableTabWidget |
| class | MainWindow |
| MainWindow is the parent container for all the other widgets in TinkerCell The central widget in MainWindow is a tab widget. Each tab widget can hold a GraphicsView or a TextEditor. One of the main roles of MainWindow is to serve as a signal/slot hub for Tools. More... | |
| class | MultithreadedSliderWidget |
| This class is used to run specific functions inside a C dynamic library as a separate thread. Uses CThread to call the C functions. More... | |
| class | NetworkHandle |
| A class that is used to store a network. The network is a collection of Item Handles. The history stack is also a key component of a network. The network can either be represented as text using TextEditor or visualized with graphical items in the GraphicsScene. Each node and connection are contained in a handle, and each handle can either be represented as text or as graphics. The two main components of NetworkWindow are the SymbolsTable and HistoryStack This class provides functions for inserting items, removing items, and changing information inside the model. More... | |
| class | NetworkWindow |
| class | NodeGraphicsItem |
| A simple figure made from one or more polygons. The class can be represented in an XML file. More... | |
| class | Ontology |
| A set of node and connection families. All functions are static. More... | |
| class | SymbolsTable |
| The symbols table is updated every time the scene or text editor changes. The symbols table contains the list of item names and ItemHandle pointers as well as names and pointers to each data entry in each item. More... | |
| class | TextEditor |
| This is the window that allows used to construct networks using text, as opposed to graphics, which is done by GraphicsScene. The TextEditor requires a supporting tool that parses the text and calls the itemsInserted or itemsRemoved methods. Without a supporting parser tool, the TextEditor will not do anything. More... | |
| class | TextUndoCommand |
| this command performs a text change More... | |
| class | TextGraphicsItem |
| editable text item More... | |
| class | Tool |
| everything other than the main window is a tool More... | |
| class | ToolGraphicsItem |
| tools that are drawn on the scene instead of displayed as a window More... | |
| class | InsertHandlesCommand |
| this command inserts new handles to a NetworkHandle More... | |
| class | RemoveHandlesCommand |
| this command inserts new handles to a NetworkHandle More... | |
| class | MoveCommand |
| this command performs a move and allows redo/undo of that move More... | |
| class | InsertGraphicsCommand |
| this command performs an insert and allows redo/undo of that insert More... | |
| class | RemoveGraphicsCommand |
| this command performs an removal and allows redo/undo of that removal More... | |
| class | ChangeBrushCommand |
| this command changes the brush of an item More... | |
| class | ChangePenCommand |
| this command changes the pen of an item More... | |
| class | ChangeBrushAndPenCommand |
| this command changes the pen and/or brush of an item More... | |
| class | ChangeZCommand |
| this command changes the pen of an item More... | |
| class | TransformCommand |
| this command changes the size, angle, and orientation of an item More... | |
| class | ChangeParentCommand |
| this command changes the parent of a graphics item (not handles) More... | |
| class | RenameCommand |
| this command changes the name of the handle of an item. important: use full name of the items! More... | |
| class | CompositeCommand |
| this command can be used to combine multiple commands into one command More... | |
| class | ReverseUndoCommand |
| this command can be used to invert another undo command (i.e. flip the redo/undo) More... | |
| class | ReplaceNodeGraphicsCommand |
| this command can be used to replace the graphical representation of a node from an xml file More... | |
| class | AssignHandleCommand |
| this command assigns handles to items More... | |
| class | MergeHandlesCommand |
| this command places all the graphics items inside one handle into the other More... | |
| class | SetParentHandleCommand |
| this command assigns parent(s) to one or more handles More... | |
| class | SetGraphicsSceneVisibilityCommand |
| this command is used to hide graphics items. Hidden graphics items will be part (unless their handles are also hidden) of the network but not visible on the screen. More... | |
| class | SetHandleFamilyCommand |
| this command is used to hide graphics items. Hidden graphics items will be part (unless their handles are also hidden) of the network but not visible on the screen. More... | |
| class | AddControlPointCommand |
| An command that adds a new control point to a connection item; it has undo and redo functionality. More... | |
| class | RemoveControlPointCommand |
| A command that removed control points. Allows undo and redo. More... | |
| class | AddCurveSegmentCommand |
| An command that adds a new control point to a connection item; it has undo and redo functionality. More... | |
| class | RemoveCurveSegmentCommand |
| A command that removed control points. Allows undo and redo. More... | |
| class | ReplaceConnectedNodeCommand |
| this command replaces one node item in a connection item with another More... | |
| class | LineTypeChanged |
| command for changing line type of connections More... | |
| class | ChangeArrowHeadDistance |
| command for changing distance between arrowhead and objects More... | |
Typedefs | |
| typedef void(* | main_api_func )(tc_items(*tc_allItems0)(), tc_items(*tc_selectedItems0)(), tc_items(*tc_itemsOfFamily0)(const char *), tc_items(*tc_itemsOfFamily1)(const char *, tc_items), long(*tc_find0)(const char *), tc_items(*tc_findItems0)(tc_strings), tc_items(*tc_findItemsUsingRegex0)(const char *), void(*tc_select0)(long), void(*tc_deselect0)(), const char *(*tc_getName0)(long), const char *(*tc_getUniqueName0)(long), void(*tc_setName0)(long item, const char *name), tc_strings(*tc_getNames0)(tc_items), tc_strings(*tc_getUniqueNames0)(tc_items), const char *(*tc_getFamily0)(long), int(*tc_isA0)(long, const char *), void(*tc_clearText)(), void(*tc_outputText0)(const char *), void(*tc_errorReport0)(const char *), void(*tc_outputTable0)(tc_matrix), void(*tc_printFile0)(const char *), void(*tc_removeItem0)(long), long(*tc_insertItem0)(const char *, const char *), long(*insertConnection)(tc_items, const char *, const char *), tc_items(*getConnectedNodes)(long), tc_items(*getConnections)(long), double(*tc_getY0)(long), double(*tc_getX0)(long), tc_matrix(*tc_getPos0)(tc_items), void(*tc_setPos0)(long, double, double), void(*tc_setPos1)(tc_items, tc_matrix), void(*tc_moveSelected0)(double, double), int(*tc_isWindows0)(), int(*tc_isMac0)(), int(*tc_isLinux0)(), const char *(*tc_appDir0)(), const char *(*tc_homeDir0)(), void(*tc_createInputWindow0)(tc_matrix, const char *, const char *), void(*tc_createInputWindow1)(long, tc_matrix, const char *, void(*f)(tc_matrix)), void(*createSliders)(long, tc_matrix, void(*f)(tc_matrix)), void(*tc_addInputWindowOptions0)(const char *, int i, int j, tc_strings), void(*tc_addInputWindowCheckbox0)(const char *, int i, int j), void(*tc_openNewWindow0)(const char *title), tc_items(*tc_getChildren0)(long), long(*tc_getParent0)(long), tc_matrix(*tc_getNumericalData0)(long, const char *), void(*tc_setNumericalData0)(long, const char *, tc_matrix), tc_table(*tc_getTextData0)(long, const char *), void(*tc_setTextData0)(long, const char *, tc_table), tc_strings(*tc_getNumericalDataNames0)(long), tc_strings(*tc_getTextDataNames0)(long), void(*tc_zoom0)(double factor), void(*tc_viewWindow0)(const char *), const char *(*getString)(const char *), int(*getSelectedString)(const char *, tc_strings, const char *), double(*getNumber)(const char *), tc_matrix(*getNumbers)(tc_strings), const char *(*getFilename)(), int(*askQuestion)(const char *), void(*messageDialog)(const char *), void(*openFile)(const char *), void(*saveToFile)(const char *), void(*setSize)(long, double, double, int), double(*getWidth)(long), double(*getHeight)(long), void(*setAngle)(long, double, int), const char *(*getColor)(long), void(*setColor)(long, const char *, int), void(*changeGraphics)(long, const char *), void(*changeArrowHead)(long, const char *), void(*screenshot)(const char *, int, int), int(*screenWidth)(), int(*screenHeight)(), int(*screenX)(), int(*screenY)(), const char *(*annotations)(), void(*insertAnno)(const char *, double, double), void(*setNumericalValues)(tc_matrix), void(*setNumericalValue)(const char *, double), void(*setTextValues)(tc_table), void(*setTextValue)(const char *, const char *), double(*getNumericalValue)(const char *), const char *(*getTextValue)(const char *), tc_matrix(*getNumericalValueRegexp)(const char *), tc_table(*getTextValueRegexp)(const char *), void(*openUrl)(const char *), double(*getControlPointX)(long, long, int), double(*getControlPointY)(long, long, int), void(*setControlPoint)(long, long, int, double, double), void(*setCenterPoint)(long, double, double), double(*getCenterPointX)(long), double(*getCenterPointY)(long), void(*setStraight)(long, int), void(*setAllStraight)(int), void(*setLineWidth)(long, double, int)) |
| typedef void(* | MatrixInputFunction )(tc_matrix) |
| typedef void(* | TinkercellCEntryFunction )() |
| typedef void(* | VoidFunction )() |
| typedef void(* | IntFunction )(int) |
| typedef void(* | DoubleFunction )(double) |
| typedef void(* | CharFunction )(const char *) |
| typedef void(* | MatrixFunction )(tc_matrix) |
| typedef void(* | cthread_api_initialize )(long cthread, void(*callback)(long, void(*f)(void)), void(*callWhenExiting)(long, void(*f)(void)), void(*showProgress)(long, const char *, int)) |
| typedef DataTable< QString > | TextDataTable |
| a numerical data table | |
| typedef DataTable< qreal > | NumericalDataTable |
| a numerical data table | |
| typedef ChangeDataCommand < QString > | ChangeTextDataCommand |
| this command is used to replace text data inside a handle | |
| typedef ChangeDataCommand< qreal > | ChangeNumericalDataCommand |
| this command is used to replace numerical data inside a handle | |
Functions | |
| QGraphicsItem * | getGraphicsItem (QGraphicsItem *item) |
| gets the parent of this item that is a node, text, connection, or control point | |
| QGraphicsItem * | cloneGraphicsItem (QGraphicsItem *item) |
| Clone a graphics item. The item handle will NOT be duplicated. | |
| QList< QGraphicsItem * > | cloneGraphicsItems (QList< QGraphicsItem * > &items, QList< ItemHandle * > &newHandles, bool deep=true) |
| Clone a list of graphics items. | |
| QList< ItemHandle * > | cloneHandles (const QList< ItemHandle * > &) |
| clone given handles | |
| QPointF | pointOnEdge (const QRectF &rect0, const QPointF &p1, qreal dist, bool straight) |
| gets the point on the edge of the rect such that it is in the same line as the center of the rect and the point (arg) | |
| QPointF | pointOnEdge (const NodeGraphicsItem &node, const QPointF &pt, qreal dist, bool straight) |
| gets the point on the edge of the shape such that it is in the same line as the center of the rect and the point (arg) | |
| tc_matrix | emptyMatrix () |
| construct a tc_matrix with 0 rows and columns | |
| ItemHandle * | ConvertValue (long) |
| convert void* to ItemHandle pointer | |
| long | ConvertValue (ItemHandle *) |
| convert ItemHandle pointer to void * | |
| QList< ItemHandle * > * | ConvertValue (tc_items) |
| convert tc_items to QList of ItemHandle pointers | |
| tc_items | ConvertValue (const QList< ItemHandle * > &) |
| convert QList of ItemHandle pointers to tc_items | |
| QString | ConvertValue (const char *) |
| convert char* to QString | |
| const char * | ConvertValue (const QString &) |
| convert QString to null-terminated char* | |
| DataTable< qreal > * | ConvertValue (tc_matrix) |
| convert matrix to datatable<double> (see DataTable.h and TC_structs.h) | |
| tc_matrix | ConvertValue (const DataTable< qreal > &) |
| convert Datatable<double> to tc_matrix (see DataTable.h and TC_structs.h) | |
| DataTable< QString > * | ConvertValue (tc_table) |
| convert tc_table to DataTable of QString | |
| tc_table | ConvertValue (const DataTable< QString > &) |
| convert DataTable of QStrings to tc_table | |
| QStringList | ConvertValue (tc_strings) |
| convert tc_strings to QStringList | |
| tc_strings | ConvertValue (const QStringList &) |
| convert QStringList to tc_strings | |
| QString | RemoveDisallowedCharactersFromName (const QString &) |
| This function replaces disallowed characters in a name string. | |
| ItemHandle * | getHandle (QGraphicsItem *) |
| get the handle from a graphics item | |
| QList< ItemHandle * > | getHandle (const QList< QGraphicsItem * > &, bool includeNull=true) |
| get the handles from graphics items | |
| void | setHandle (QGraphicsItem *, ItemHandle *) |
| set the handle of a graphics item (use 0 to remove handle) | |
Variables | |
| class TINKERCELLCOREEXPORT | SetHandleFamilyCommand |
| typedef void(* Tinkercell::CharFunction)(const char *) |
Definition at line 114 of file CThread.cpp.
| typedef void(* Tinkercell::cthread_api_initialize)(long cthread, void(*callback)(long, void(*f)(void)), void(*callWhenExiting)(long, void(*f)(void)), void(*showProgress)(long, const char *, int)) |
Definition at line 178 of file CThread.cpp.
| typedef void(* Tinkercell::DoubleFunction)(double) |
Definition at line 112 of file CThread.cpp.
| typedef void(* Tinkercell::IntFunction)(int) |
Definition at line 110 of file CThread.cpp.
| typedef void(* Tinkercell::main_api_func)(tc_items(*tc_allItems0)(), tc_items(*tc_selectedItems0)(), tc_items(*tc_itemsOfFamily0)(const char *), tc_items(*tc_itemsOfFamily1)(const char *, tc_items), long(*tc_find0)(const char *), tc_items(*tc_findItems0)(tc_strings), tc_items(*tc_findItemsUsingRegex0)(const char *), void(*tc_select0)(long), void(*tc_deselect0)(), const char *(*tc_getName0)(long), const char *(*tc_getUniqueName0)(long), void(*tc_setName0)(long item, const char *name), tc_strings(*tc_getNames0)(tc_items), tc_strings(*tc_getUniqueNames0)(tc_items), const char *(*tc_getFamily0)(long), int(*tc_isA0)(long, const char *), void(*tc_clearText)(), void(*tc_outputText0)(const char *), void(*tc_errorReport0)(const char *), void(*tc_outputTable0)(tc_matrix), void(*tc_printFile0)(const char *), void(*tc_removeItem0)(long), long(*tc_insertItem0)(const char *, const char *), long(*insertConnection)(tc_items, const char *, const char *), tc_items(*getConnectedNodes)(long), tc_items(*getConnections)(long), double(*tc_getY0)(long), double(*tc_getX0)(long), tc_matrix(*tc_getPos0)(tc_items), void(*tc_setPos0)(long, double, double), void(*tc_setPos1)(tc_items, tc_matrix), void(*tc_moveSelected0)(double, double), int(*tc_isWindows0)(), int(*tc_isMac0)(), int(*tc_isLinux0)(), const char *(*tc_appDir0)(), const char *(*tc_homeDir0)(), void(*tc_createInputWindow0)(tc_matrix, const char *, const char *), void(*tc_createInputWindow1)(long, tc_matrix, const char *, void(*f)(tc_matrix)), void(*createSliders)(long, tc_matrix, void(*f)(tc_matrix)), void(*tc_addInputWindowOptions0)(const char *, int i, int j, tc_strings), void(*tc_addInputWindowCheckbox0)(const char *, int i, int j), void(*tc_openNewWindow0)(const char *title), tc_items(*tc_getChildren0)(long), long(*tc_getParent0)(long), tc_matrix(*tc_getNumericalData0)(long, const char *), void(*tc_setNumericalData0)(long, const char *, tc_matrix), tc_table(*tc_getTextData0)(long, const char *), void(*tc_setTextData0)(long, const char *, tc_table), tc_strings(*tc_getNumericalDataNames0)(long), tc_strings(*tc_getTextDataNames0)(long), void(*tc_zoom0)(double factor), void(*tc_viewWindow0)(const char *), const char *(*getString)(const char *), int(*getSelectedString)(const char *, tc_strings, const char *), double(*getNumber)(const char *), tc_matrix(*getNumbers)(tc_strings), const char *(*getFilename)(), int(*askQuestion)(const char *), void(*messageDialog)(const char *), void(*openFile)(const char *), void(*saveToFile)(const char *), void(*setSize)(long, double, double, int), double(*getWidth)(long), double(*getHeight)(long), void(*setAngle)(long, double, int), const char *(*getColor)(long), void(*setColor)(long, const char *, int), void(*changeGraphics)(long, const char *), void(*changeArrowHead)(long, const char *), void(*screenshot)(const char *, int, int), int(*screenWidth)(), int(*screenHeight)(), int(*screenX)(), int(*screenY)(), const char *(*annotations)(), void(*insertAnno)(const char *, double, double), void(*setNumericalValues)(tc_matrix), void(*setNumericalValue)(const char *, double), void(*setTextValues)(tc_table), void(*setTextValue)(const char *, const char *), double(*getNumericalValue)(const char *), const char *(*getTextValue)(const char *), tc_matrix(*getNumericalValueRegexp)(const char *), tc_table(*getTextValueRegexp)(const char *), void(*openUrl)(const char *), double(*getControlPointX)(long, long, int), double(*getControlPointY)(long, long, int), void(*setControlPoint)(long, long, int, double, double), void(*setCenterPoint)(long, double, double), double(*getCenterPointX)(long), double(*getCenterPointY)(long), void(*setStraight)(long, int), void(*setAllStraight)(int), void(*setLineWidth)(long, double, int)) |
Definition at line 60 of file C_API_Slots.cpp.
| typedef void(* Tinkercell::MatrixFunction)(tc_matrix) |
Definition at line 116 of file CThread.cpp.
| typedef void(* Tinkercell::MatrixInputFunction)(tc_matrix) |
Definition at line 42 of file C_API_Slots.h.
| typedef void(* Tinkercell::TinkercellCEntryFunction)() |
Definition at line 33 of file CThread.cpp.
| typedef void(* Tinkercell::VoidFunction)() |
Definition at line 108 of file CThread.cpp.

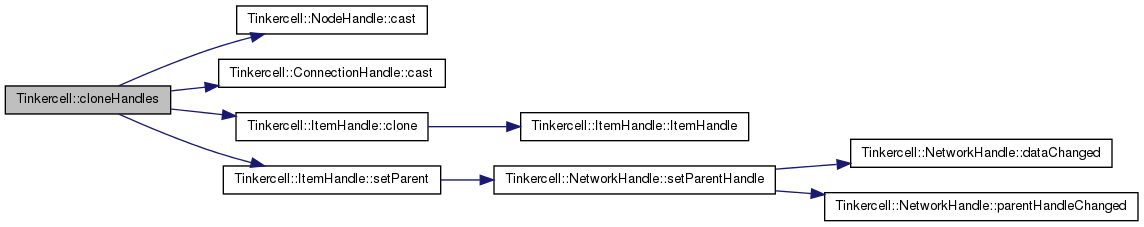

| TINKERCELLCOREEXPORT QList< ItemHandle * > Tinkercell::cloneHandles | ( | const QList< ItemHandle * > & | ) |
clone given handles
| QList<ItemHandle*> | items to clone |
Definition at line 308 of file CloneItems.cpp.
| class TINKERCELLCOREEXPORT Tinkercell::SetHandleFamilyCommand |
Definition at line 617 of file UndoCommands.h.
1.7.4
