MainWindow is the parent container for all the other widgets in TinkerCell The central widget in MainWindow is a tab widget. Each tab widget can hold a GraphicsView or a TextEditor. One of the main roles of MainWindow is to serve as a signal/slot hub for Tools. More...

#include <MainWindow.h>

Collaboration diagram for Tinkercell::MainWindow:

[legend]

List of all members.

Public Types
enum	TOOL_WINDOW_OPTION { DockWidget, TabWidget }
	this enum is used to determine how to place a widget when used in addToolWindow. DockWidget = tool window is placed into a dockable widget TabWidget = tool window is placed in an existing tool widget, if one exists More...
Public Member Functions
	MainWindow (bool enableScene=true, bool enableText=true, bool views=true)
	5-arg (optional) constructor allows disabling of text/graphics modes
virtual void	allowMultipleViewModes (bool)
	allow or disallow changing between different views
virtual	~MainWindow ()
	Destructor: delete all the graphics scenes.
QDockWidget *	addToolWindow (QWidget *tool, TOOL_WINDOW_OPTION option=DockWidget, Qt::DockWidgetArea initArea=Qt::RightDockWidgetArea, Qt::DockWidgetAreas allowedAreas=Qt::AllDockWidgetAreas, bool inMenu=true)
	Add a new docking window to the main window. The name and icon are obtained using the widget's windowTitle and windowIcon, so be sure to set those before calling this function.
void	addToViewMenu (QWidget *tool)
	place a show/hide action in the view menu for the given widget
void	setCursor (QCursor cursor)
	set the cursor for all windows
void	addTool (Tool *tool)
	add a new tool to the list of tools stored in the main window
void	initializeMenus (bool enableScene=true, bool enableText=true)
	Initialize the basic menu (save, open, close, exit, etc.).
void	setupNewThread (QSemaphore , QLibrary )
	This function is usually called from a new thread. This function allows all the plugins to add their functionalities to the C function pointer of the new thread.
void	loadDynamicLibrary (const QString &)
	Load a new plugin (dll)
QPair< QList< ItemHandle * > , QList< QGraphicsItem * > >	getItemsFromFile (const QString &filename, ItemHandle *root=0)
	get the items inside a file. Some tool must implement this function and connect to the getItemsFromFile signal. The Core library does not implement a read file function.
GraphicsScene *	currentScene () const
	gets the current scene that is active
TextEditor *	currentTextEditor () const
	gets the text editor that is active
NetworkWindow *	currentWindow () const
	gets the current window that is active (each window contains either a scene or editor)

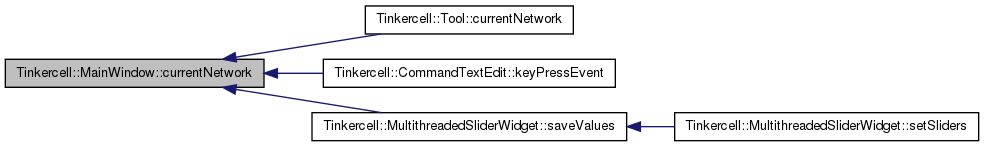

NetworkHandle *	currentNetwork () const
	gets the current window that is active
QList< NetworkHandle * >	networks () const
	gets all the windows in the main window
QUndoStack *	historyStack () const
	the history stack of the current network.
QUndoView *	historyWidget ()
	the history stack widget of the current window.
virtual Tool *	tool (const QString &) const
	get a tool
virtual QList< Tool * >	tools (const QString &category=QString()) const
	get all tools
Public Attributes
QList< QWidget * >	toolWindows
	the set of all windows inseted in the main window using addToolWindow
QMenu	contextItemsMenu
	the context menu that is shown during right-click event on selected graphical items. Plugins can add new actions to this menu.
QMenu	contextScreenMenu
	the context menu that is shown during right-click event on the scene. Plugins can add new actions to this menu.
QMenu	contextSelectionMenu
	the context menu that is shown during right-click event on a text editor with text selected. Plugins can add new actions to this menu.
QMenu	contextEditorMenu
	the context menu that is shown during right-click event on a text editor with no text selected. Plugins can add new actions to this menu.
QMenu *	fileMenu
	The file menu. Plugins can add new actions to this menu.
QMenu *	editMenu
	The edit menu. Plugins can add new actions to this menu.
QMenu *	viewMenu
	The view menu. New docking windows are automatically added here.
QMenu *	helpMenu
	The help menu.
QMenu *	settingsMenu
	the menu for settings such as default plugins, Tinkercell home directory, etc.
QMenu *	parsersMenu
	the menu for choosing one of the available parsers (will be 0 if there are no parsers)
QToolBar *	toolBarBasic
	The tool bar that contains new, open, close, etc. actions.
QToolBar *	toolBarEdits
	The tool bar that contains copy, paste, undo, etc.
QToolBar *	toolBarForTools
	One of the initial tool bars which designated for tools that do not want to create a new toolbar.
Static Public Attributes
static TOOL_WINDOW_OPTION	defaultToolWindowOption
	the default option to use for tools (optional)
static TOOL_WINDOW_OPTION	defaultHistoryWindowOption
	the default option to use for history window
static TOOL_WINDOW_OPTION	defaultConsoleWindowOption
	the default option to use for console window
Friends
class	NetworkWindow
class	NetworkHandle
class	GraphicsScene
class	TextEditor
class	GraphicsView
class	DroppableTabWidget
slots
void	setUserHome ()
	asks user for a new directory to be used as the user home directory (must be writtable)
GraphicsScene *	newScene ()
	create new scene
TextEditor *	newTextEditor ()
	create new text editor
void	closeWindow ()
	triggered when the close button is clicked. Closes the current window
void	saveWindow ()
	triggered when the save button is clicked. Opens a file dialog and emits the save signal. The main window itself does not implement the save.
void	saveWindowAs ()
	triggered when the save-as button is clicked. Opens a file dialog and emits the save signal. The main window itself does not implement the save.
void	open ()
	triggered when the open button is clicked. Opens a file dialog. Note: the core library just emits a signal, and other tools are responsible for actually opening a file
void	open (const QString &)
	open a file. Note: the core library just emits a signal, and other tools are responsible for actually opening a file The main window does not implement an function for opening a new file
void	undo ()
	calls current scene or text editor's undo
void	redo ()
	calls current scene or text editor's redo
void	copy ()
	calls current scene or text editor's copy
void	cut ()
	calls current scene or text editor's cut
void	paste ()
	calls current scene or text editor's paste
void	selectAll ()
	calls current scene or text editor's selectAll
void	remove ()
	calls current scene or text editor's find
void	print ()
	triggered when the print button is clicked. Calls current scene's print
void	printToFile (const QString &filename=QString(), int w=0, int h=0)
	triggered when the print-to-file button is clicked. Calls current scene's print on a pdf file
void	sendEscapeSignal (const QWidget *w=0)
	sends a signal to all plugins telling them to exit their current processes.
void	addParser (TextParser *)
	add a new text parser to the list of available parsers. The current text parser can be obtained using TextParser::currentParser();
void	gridOn ()
	change grid mode for current scene to on (>0)
void	gridOff ()
	change grid mode for current scene to off (=0)
void	setGridSize ()
	set grid size for current scene
void	popOut ()
	pop-out the current window

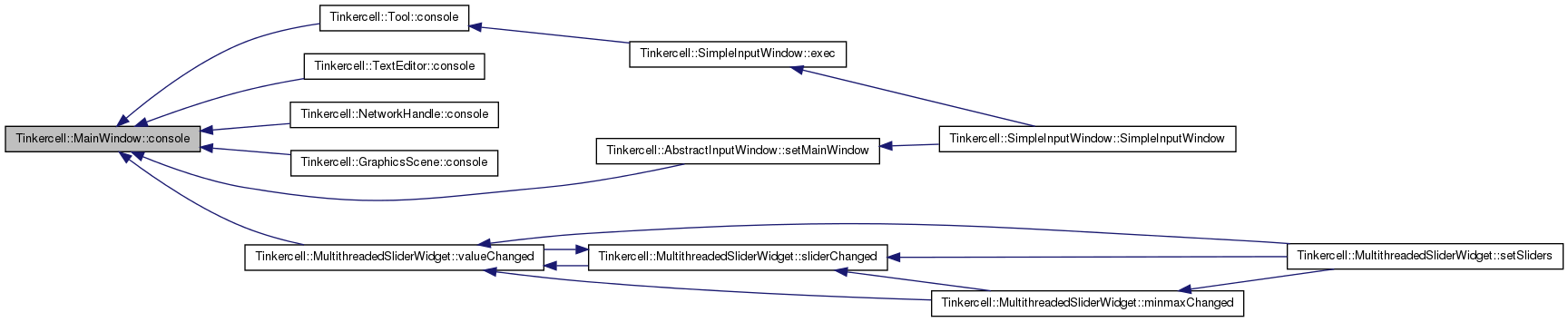

ConsoleWindow *	console () const
	get the console window
void	readSettings ()
	read initial settings from settingsFileName

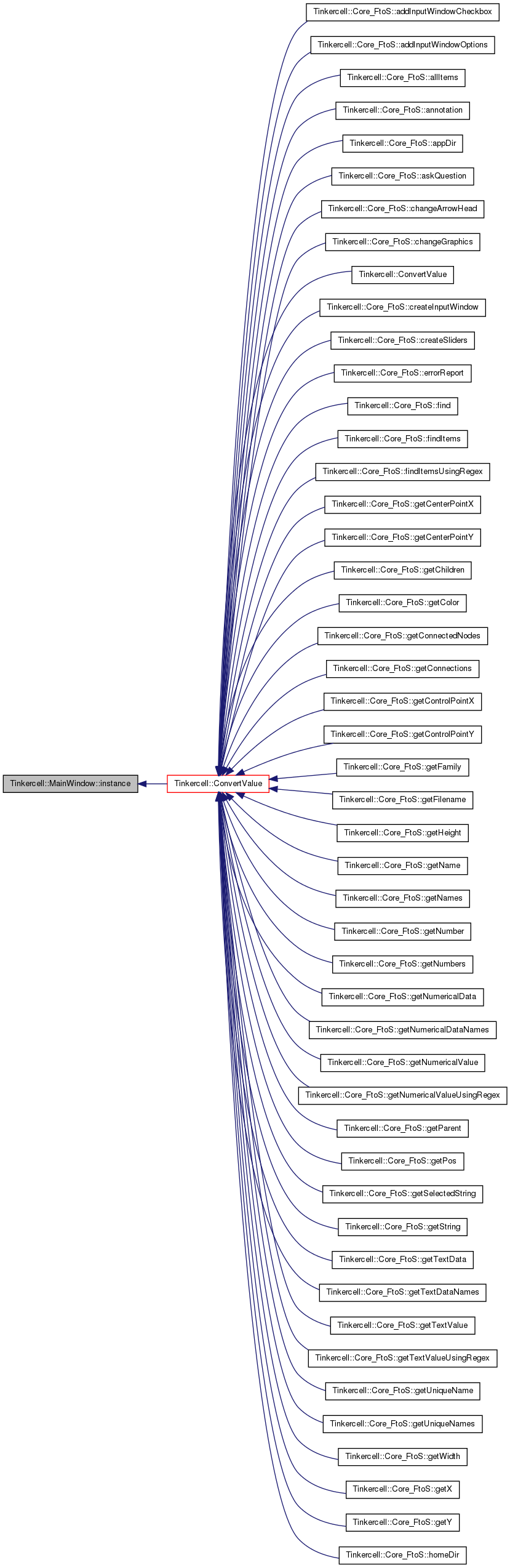

static MainWindow *	instance ()
	gets the global main window
void	popOut (NetworkWindow *)
	pop-out the given window

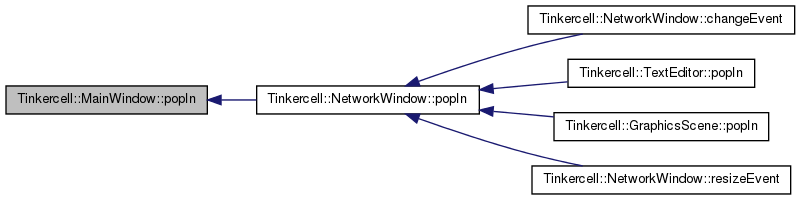

void	popIn (NetworkWindow *)
	pop-in the given window

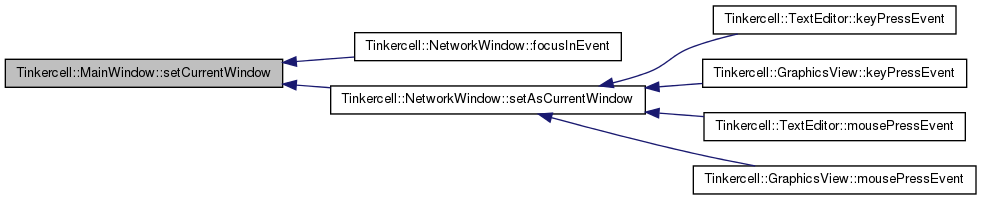

void	setCurrentWindow (NetworkWindow *)
	sets the active window
void	loadFiles (const QList< QFileInfo > &files)
	loads files (library files or Network files)
void	changeConsoleBgColor ()
	change console background color
void	changeConsoleTextColor ()
	change console text color
void	changeConsoleMsgColor ()
	change console message text color
void	changeConsoleErrorMsgColor ()
	change console error text color
virtual void	tabIndexChanged (int)
	tab changed
void	itemsRemovedSlot (GraphicsScene scene, const QList< QGraphicsItem > &item, const QList< ItemHandle * > &handles)
	signals whenever items are deleted
void	itemsInsertedSlot (GraphicsScene scene, const QList< QGraphicsItem > &item, const QList< ItemHandle * > &handles, GraphicsScene::InsertType)
	signals whenever items are added
void	setupFunctionPointersSlot (QSemaphore , QLibrary )
	send signal to other tools so that they can connect functions to signals
signals
class	GlobalSettings
static QString	previousFileName
	stores the last opened directory
static QHash< void *, bool >	invalidPointers
	stores list of all pointers that have been deleted (to prevent double-deletions)
bool	allowViewModeToChange
	allowed views
QHash< QString, QLibrary * >	dynamicallyLoadedLibraries
	the loaded dynamic libraries indexed by file name
ConsoleWindow *	consoleWindow
	the general window for command, errors, and messages
DroppableTabWidget *	tabWidget
	the central multi-document interface widget
QList< NetworkHandle * >	allNetworks
	the list of all network windows
QToolBox *	toolsWidget
	the optional tool box that will only appear if one of the plug-ins uses the tab widget argument in the addToolWindow call
HistoryWindow	historyWindow
	history view, not the stack itself. The stack is stored within each NetworkHandle
NetworkWindow *	currentNetworkWindow
	keep pointer to last selected window. Used by windowChanged signal
QHash< QString, Tool * >	toolsHash
	all the tools (plug-ins) are stored here, indexed by their names
QHash< QString, Tool * >	toolsHashByCategory
	this is a multiple hash. All the tool are stored here indexed by their category names (if they have a category)

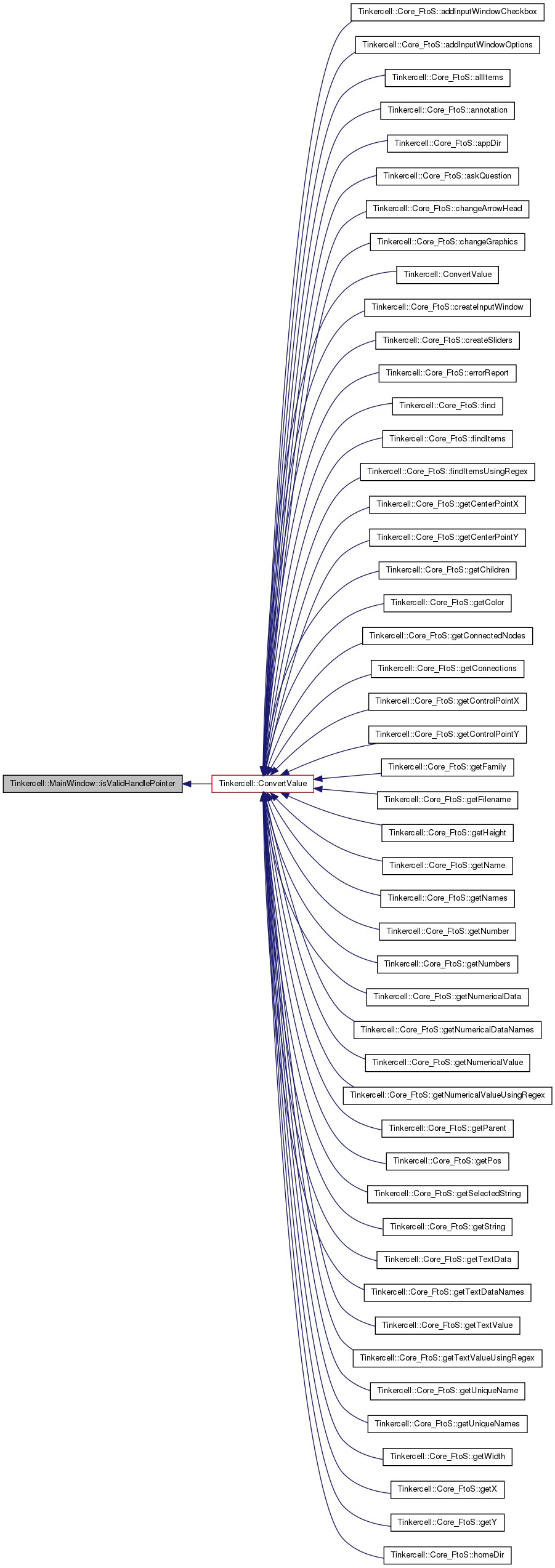

bool	isValidHandlePointer (void *p)
	checks if the given address belongs to a handle
void	toolAboutToBeLoaded (Tool tool, bool shouldLoad)
	a new tool is about to be added. This signal can be used to prevent the tool from being added
void	historyChanged (int i=0)
	one of more changed have occurred in the history window of the current scene
void	funtionPointersToMainThread (QSemaphore , QLibrary )
	used internally by MainWindow in order to move from a thread to the main thread
void	toolLoaded (Tool *tool)
	signals when a new tool (plugin) is loaded
void	setupFunctionPointers (QLibrary *)
	signals when a new FuntionToSignal is constructed
void	networkClosing (NetworkHandle , bool )
	signals when a network is going to close
void	networkClosed (NetworkHandle *)
	signals after a window is closed
void	prepareNetworkForSaving (NetworkHandle , bool )
	signals when a tool is about to save a network
void	networkSaved (NetworkHandle *)
	signals when a tool has saved the network in a file
void	saveNetwork (const QString &filename)
	signals when user selects a file to save the current network to
void	loadNetwork (const QString &filename, bool *alreadyLoaded=0)
	signals when user selects a file to open in the current network
void	getItemsFromFile (QList< ItemHandle * > &, QList< QGraphicsItem * > &, const QString &filename, ItemHandle *root)
	signal sent to a tool so that the tool can get the items inside a file
void	networkLoaded (NetworkHandle *)
	signals informs that the current network has just loaded a new Network
void	networkOpened (NetworkHandle *)
	signals whenever the new network is opened
void	windowChanged (NetworkWindow , NetworkWindow )
	signals whenever the current window changes
void	itemsSelected (GraphicsScene scene, const QList< QGraphicsItem > &items, QPointF point, Qt::KeyboardModifiers modifiers)
	signals whenever a new item is selected (item can be sub-item, not top-level)
void	mousePressed (GraphicsScene *scene, QPointF point, Qt::MouseButton, Qt::KeyboardModifiers modifiers)
	signals whenever an empty node of the screen is clicked
void	mouseReleased (GraphicsScene *scene, QPointF point, Qt::MouseButton, Qt::KeyboardModifiers modifiers)
	signals whenever an empty node of the screen is clicked
void	mouseDoubleClicked (GraphicsScene scene, QPointF point, QGraphicsItem , Qt::MouseButton, Qt::KeyboardModifiers modifiers)
	emits event when mouse is double clicked
void	mouseDragged (GraphicsScene *scene, QPointF from, QPointF to, Qt::MouseButton, Qt::KeyboardModifiers modifiers)
	signals whenever mouse is dragged from one point to another
void	itemsAboutToBeMoved (GraphicsScene scene, QList< QGraphicsItem > &item, QList< QPointF > &distance, QList< QUndoCommand * > &)
	signals whenever items are going to be moved (each item is the top-most item)
void	itemsMoved (GraphicsScene scene, const QList< QGraphicsItem > &item, const QList< QPointF > &distance)
	signals whenever items are being moved (each item is the top-most item)
void	itemsAboutToBeRemoved (GraphicsScene scene, QList< QGraphicsItem > &item, QList< ItemHandle * > &handles, QList< QUndoCommand * > &)
	signals just before items are deleted
void	itemsRemoved (GraphicsScene scene, const QList< QGraphicsItem > &item, const QList< ItemHandle * > &handles)
	signals whenever items are deleted
void	itemsAboutToBeInserted (GraphicsScene scene, QList< QGraphicsItem > &, QList< ItemHandle * > &, QList< QUndoCommand * > &, GraphicsScene::InsertType type=GraphicsScene::NEW)
	signals whenever items are going to be added
void	itemsInserted (GraphicsScene scene, const QList< QGraphicsItem > &item, const QList< ItemHandle * > &handles, GraphicsScene::InsertType type=GraphicsScene::NEW)
	signals whenever items are added
void	itemsInserted (NetworkHandle win, const QList< ItemHandle > &)
	A convenient signal that is emitted when items are inserted from a GraphicsScene or TextEditor. Warning: listening to the other itemsInserted signals may cause redundancy.
void	itemsRemoved (NetworkHandle win, const QList< ItemHandle > &)
	A convenient signal that is emitted when items are removed from a GraphicsScene or TextEditor. Warning: listening to the other itemsRemoved signals may cause redundancy.
void	copyItems (GraphicsScene scene, QList< QGraphicsItem > &, QList< ItemHandle * > &)
	signals just before items are copied
void	textChanged (TextEditor *, const QString &, const QString &, const QString &)
	some text inside this editor has been changed
void	lineChanged (TextEditor *, int, const QString &)
	the cursor has moved to a different line
void	parse (TextEditor *)
	request to parse the text in the current text editor
void	mouseMoved (GraphicsScene scene, QGraphicsItem item, QPointF point, Qt::MouseButton, Qt::KeyboardModifiers modifiers, QList< QGraphicsItem * > &)
	signals whenever mouse moves, and indicates whether it is on top of an item
void	mouseOnTopOf (GraphicsScene scene, QGraphicsItem item, QPointF point, Qt::KeyboardModifiers modifiers, QList< QGraphicsItem * > &)
	signals whenever mouse is on top of an item
void	sceneRightClick (GraphicsScene scene, QGraphicsItem item, QPointF point, Qt::KeyboardModifiers modifiers)
	signals whenever right click is made on an item or sceen
void	keyPressed (GraphicsScene scene, QKeyEvent )
	signals whenever a key is pressed
void	keyReleased (GraphicsScene scene, QKeyEvent )
	signals whenever a key is released
void	colorChanged (GraphicsScene scene, const QList< QGraphicsItem > &items)
	signals whenever color of items are changed
void	parentItemChanged (GraphicsScene scene, const QList< QGraphicsItem > &items, const QList< QGraphicsItem * > &parents)
	signals whenever item parents are changed
void	itemsRenamed (NetworkHandle window, const QList< ItemHandle > &items, const QList< QString > &oldnames, const QList< QString > &newnames)
	signals whenever an item is renamed
void	handlesChanged (NetworkHandle scene, const QList< QGraphicsItem > &items, const QList< ItemHandle * > &old)
	signals whenever the handles for graphics items have changed
void	parentHandleChanged (NetworkHandle scene, const QList< ItemHandle > &, const QList< ItemHandle * > &)
	signals whenever item parent handle is changed
void	handleFamilyChanged (NetworkHandle network, const QList< ItemHandle > &, const QList< ItemFamily * > &)
	signals whenever item handles' families are changed
void	dataChanged (const QList< ItemHandle * > &items)
	signals whenever some data is changed
void	escapeSignal (const QWidget *sender)
	signals whenever the current activities need to be stopped
void	filesLoaded (const QList< QFileInfo > &files)
	signals whenever file(s) are loaded. Each file can be a model or a plugin
void	itemsDropped (GraphicsScene *, const QString &, QPointF)
	signal is emitted when some object OTHER than files are dropped on the canvas
void	saveSettings ()
	save initial settings to settingsFileName
void	loadDefaultPlugins ()
	load default plugins
void	closeEvent (QCloseEvent *event)
	close window event -- asks whether to save file
virtual void	dropEvent (QDropEvent *)
	drag and drop
virtual void	dragEnterEvent (QDragEnterEvent *event)
	drag and drop

Detailed Description

MainWindow is the parent container for all the other widgets in TinkerCell The central widget in MainWindow is a tab widget. Each tab widget can hold a GraphicsView or a TextEditor. One of the main roles of MainWindow is to serve as a signal/slot hub for Tools.

See also:: GlobalSettings

Definition at line 89 of file MainWindow.h.

Member Enumeration Documentation

enum Tinkercell::MainWindow::TOOL_WINDOW_OPTION

this enum is used to determine how to place a widget when used in addToolWindow. DockWidget = tool window is placed into a dockable widget TabWidget = tool window is placed in an existing tool widget, if one exists

Enumerator:

DockWidget
TabWidget

Definition at line 106 of file MainWindow.h.

Constructor & Destructor Documentation

Tinkercell::MainWindow::MainWindow	(	bool	enableScene = `true`,
		bool	enableText = `true`,
		bool	views = `true`
	)

5-arg (optional) constructor allows disabling of text/graphics modes

Parameters:

bool	enable text-based network construction (default = true)
bool	enable graphics-based network construction (default = true)
bool	allow tabbed and windowed view modes (default = true)

virtual Tinkercell::MainWindow::~MainWindow ( ) [virtual]

Destructor: delete all the graphics scenes.

Member Function Documentation

void Tinkercell::MainWindow::addParser ( TextParser * ) [slot]

add a new text parser to the list of available parsers. The current text parser can be obtained using TextParser::currentParser();

void Tinkercell::MainWindow::addTool ( Tool * tool )

add a new tool to the list of tools stored in the main window

Parameters:

the	name of the new tool
the	new tool

Returns:: void

Here is the caller graph for this function:

QDockWidget* Tinkercell::MainWindow::addToolWindow	(	QWidget *	tool,
		TOOL_WINDOW_OPTION	option = `DockWidget`,
		Qt::DockWidgetArea	initArea = `Qt::RightDockWidgetArea`,
		Qt::DockWidgetAreas	allowedAreas = `Qt::AllDockWidgetAreas`,
		bool	inMenu = `true`
	)

Add a new docking window to the main window. The name and icon are obtained using the widget's windowTitle and windowIcon, so be sure to set those before calling this function.

Parameters:

Tool*	the new tool
Qt::DockWidgetArea	the initial docking area
Qt::DockWidgetAreas	the allowed docking areas
bool	whether or not to place the docking window in the view menu
bool	use a tab widget instead of a dock widget. The widget will not be dockable, but the entire tab widget will be dockable.

Returns:: QDockWidget* the new docking widget. TabWidget option is used, the docking widget may be an existing docking widget.

Here is the caller graph for this function:

void Tinkercell::MainWindow::addToViewMenu ( QWidget * tool )

place a show/hide action in the view menu for the given widget

Parameters:

QWidget* the new widget

virtual void Tinkercell::MainWindow::allowMultipleViewModes ( bool ) [virtual]

allow or disallow changing between different views

Parameters:

bool

void Tinkercell::MainWindow::changeConsoleBgColor ( ) [protected, slot]

change console background color

Returns:: void

void Tinkercell::MainWindow::changeConsoleErrorMsgColor ( ) [protected, slot]

change console error text color

Returns:: void

void Tinkercell::MainWindow::changeConsoleMsgColor ( ) [protected, slot]

change console message text color

Returns:: void

void Tinkercell::MainWindow::changeConsoleTextColor ( ) [protected, slot]

change console text color

Returns:: void

void Tinkercell::MainWindow::closeEvent ( QCloseEvent * event ) [protected]

close window event -- asks whether to save file

Parameters:

QCloseEvent * event

Returns:: void

void Tinkercell::MainWindow::closeWindow ( ) [slot]

triggered when the close button is clicked. Closes the current window

void Tinkercell::MainWindow::colorChanged	(	GraphicsScene *	scene,
		const QList< QGraphicsItem * > &	items
	)		`[signal]`

signals whenever color of items are changed

Parameters:

GraphicsScene	* scene where the event took place
QList<QGraphicsItem*>&	items that changed color

Returns:: void

ConsoleWindow* Tinkercell::MainWindow::console ( ) const [slot]

get the console window

Here is the caller graph for this function:

void Tinkercell::MainWindow::copy ( ) [slot]

calls current scene or text editor's copy

void Tinkercell::MainWindow::copyItems	(	GraphicsScene *	scene,
		QList< QGraphicsItem * > &	,
		QList< ItemHandle * > &
	)		`[signal]`

signals just before items are copied

Parameters:

GraphicsScene	* scene where the items are going to be copied
QList<QGraphicsItem*>&	list of graphics items going to be copied
QList<ItemHandle*>&	list of handles going to be copied (does NOT have to be the same number as items removed)

Returns:: void

NetworkHandle* Tinkercell::MainWindow::currentNetwork ( ) const

gets the current window that is active

Returns:: NetworkHandle* current network

Here is the caller graph for this function:

GraphicsScene* Tinkercell::MainWindow::currentScene ( ) const

gets the current scene that is active

Returns:: GraphicsScene* current scene

Here is the caller graph for this function:

TextEditor* Tinkercell::MainWindow::currentTextEditor ( ) const

gets the text editor that is active

Returns:: TextEditor* current editor

Here is the caller graph for this function:

NetworkWindow* Tinkercell::MainWindow::currentWindow ( ) const

gets the current window that is active (each window contains either a scene or editor)

Returns:: NetworkWindow* current network window

Here is the caller graph for this function:

void Tinkercell::MainWindow::cut ( ) [slot]

calls current scene or text editor's cut

void Tinkercell::MainWindow::dataChanged ( const QList< ItemHandle * > & items ) [signal]

signals whenever some data is changed

Parameters:

QList<ItemHandle*>& items handles

Returns:: void

virtual void Tinkercell::MainWindow::dragEnterEvent ( QDragEnterEvent * event ) [protected, virtual]

drag and drop

virtual void Tinkercell::MainWindow::dropEvent ( QDropEvent * ) [protected, virtual]

drag and drop

void Tinkercell::MainWindow::escapeSignal ( const QWidget * sender ) [signal]

signals whenever the current activities need to be stopped

Parameters:

QWidget * the widget that send the signal

Returns:: void

void Tinkercell::MainWindow::filesLoaded ( const QList< QFileInfo > & files ) [signal]

signals whenever file(s) are loaded. Each file can be a model or a plugin

Parameters:

QList<QFileInfo>& the name(s) of the file(s)

Returns:: void

void Tinkercell::MainWindow::funtionPointersToMainThread	(	QSemaphore *	,
		QLibrary *
	)		`[signal]`

used internally by MainWindow in order to move from a thread to the main thread

Parameters:

QSemaphore*	Sempahore that lets the thread run once C API is initialized
QLibrary	* the new FuntionToSignal instance

Returns:: void

void Tinkercell::MainWindow::getItemsFromFile	(	QList< ItemHandle * > &	,
		QList< QGraphicsItem * > &	,
		const QString &	filename,
		ItemHandle *	root
	)		`[signal]`

signal sent to a tool so that the tool can get the items inside a file

Parameters:

QList<ItemHandle*>&	list of items inside the file
QList<QGraphicsItem*>&	list of graphics items in the file
QString&	file that is selected by user
ItemHandle	* optional root parent handle for all the loaded items

Returns:: void

QPair< QList<ItemHandle>, QList<QGraphicsItem> > Tinkercell::MainWindow::getItemsFromFile	(	const QString &	filename,
		ItemHandle *	root = `0`
	)

get the items inside a file. Some tool must implement this function and connect to the getItemsFromFile signal. The Core library does not implement a read file function.

Parameters:

QString&	file that is selected by user
ItemHandle*	optional parent handle to all the items that will be loaded form file

Returns:: QList<ItemHandle*> list of items inside the file; void

Here is the caller graph for this function:

void Tinkercell::MainWindow::gridOff ( ) [slot]

change grid mode for current scene to off (=0)

void Tinkercell::MainWindow::gridOn ( ) [slot]

change grid mode for current scene to on (>0)

void Tinkercell::MainWindow::handleFamilyChanged	(	NetworkHandle *	network,
		const QList< ItemHandle * > &	,
		const QList< ItemFamily * > &
	)		`[signal]`

signals whenever item handles' families are changed

Parameters:

NetworkHandle*	network where the event took place
QList<ItemHandle*>&	child items
QList<ItemFamily*>&	old families

Returns:: void

void Tinkercell::MainWindow::handlesChanged	(	NetworkHandle *	scene,
		const QList< QGraphicsItem * > &	items,
		const QList< ItemHandle * > &	old
	)		`[signal]`

signals whenever the handles for graphics items have changed

Parameters:

GraphicsScene*	scene where the event took place
QList<GraphicsItem*>&	items that are affected
QList<ItemHandle*>&	old handle for each items

Returns:: void

void Tinkercell::MainWindow::historyChanged ( int i = 0 ) [signal]

one of more changed have occurred in the history window of the current scene

Parameters:

int	number of changes (negative = undos, positive = redos)

Returns:: void

QUndoStack* Tinkercell::MainWindow::historyStack ( ) const

the history stack of the current network.

Returns:: QUndoStack* current scene's history stack or null if current network is null

QUndoView* Tinkercell::MainWindow::historyWidget ( )

the history stack widget of the current window.

Returns:: QUndoView* current scene's history stack or null if current network is null

void Tinkercell::MainWindow::initializeMenus	(	bool	enableScene = `true`,
		bool	enableText = `true`
	)

Initialize the basic menu (save, open, close, exit, etc.).

Returns:: void

static MainWindow* Tinkercell::MainWindow::instance ( ) [static, slot]

gets the global main window

Here is the caller graph for this function:

bool Tinkercell::MainWindow::isValidHandlePointer ( void * p )

checks if the given address belongs to a handle

Here is the caller graph for this function:

void Tinkercell::MainWindow::itemsAboutToBeInserted	(	GraphicsScene *	scene,
		QList< QGraphicsItem * > &	,
		QList< ItemHandle * > &	,
		QList< QUndoCommand * > &	,
		GraphicsScene::InsertType	type = `GraphicsScene::NEW`
	)		`[signal]`

signals whenever items are going to be added

Parameters:

GraphicsScene*	scene where the items are added
QList<QGraphicsItem*>&	list of new graphics items
QList<ItemHandle*>&	list of new handles (does NOT have to be the same number as items)
QList<QUndoCommand*>&	list of commands that will be executed right before items are inserted
InsertType	(optional) indicated how the items were inserted, e.g. copy/pasted or loaded from a file

Returns:: void

void Tinkercell::MainWindow::itemsAboutToBeMoved	(	GraphicsScene *	scene,
		QList< QGraphicsItem * > &	item,
		QList< QPointF > &	distance,
		QList< QUndoCommand * > &
	)		`[signal]`

signals whenever items are going to be moved (each item is the top-most item)

Parameters:

GraphicsScene*	scene where the items were moved
QList<QGraphicsItem*>&	list of pointers to all moving items
QPointF	distance by which items moved
Qt::KeyboardModifiers	modifier keys being used when mouse clicked
QList<QUndoCommand*>&	list of commands that will be executed right before items are inserted

Returns:: void

void Tinkercell::MainWindow::itemsAboutToBeRemoved	(	GraphicsScene *	scene,
		QList< QGraphicsItem * > &	item,
		QList< ItemHandle * > &	handles,
		QList< QUndoCommand * > &
	)		`[signal]`

signals just before items are deleted

Parameters:

GraphicsScene*	scene where the items are going to be removed
QList<QGraphicsItem*>&	list of items going to be removed
QList<ItemHandle*>&	list of handles going to be removed (does NOT have to be the same number as items removed)
QList<QUndoCommand*>&	list of commands that will be executed right before items are inserted

Returns:: void

void Tinkercell::MainWindow::itemsDropped	(	GraphicsScene *	,
		const QString &	,
		QPointF
	)		`[signal]`

signal is emitted when some object OTHER than files are dropped on the canvas

Parameters:

GraphicsScene*	the scene where objects were dropped
QString	the string describing the object that was dropped
QPointF	the Scene position where it was dropped

Returns:: void

void Tinkercell::MainWindow::itemsInserted	(	GraphicsScene *	scene,
		const QList< QGraphicsItem * > &	item,
		const QList< ItemHandle * > &	handles,
		GraphicsScene::InsertType	type = `GraphicsScene::NEW`
	)		`[signal]`

signals whenever items are added

Parameters:

GraphicsScene	* scene where the items were added
QList<QGraphicsItem*>&	list of new items
QList<ItemHandle*>&	list of new handles (does NOT have to be the same number as items)
InsertType	(optional) indicated how the items were inserted, e.g. copy/pasted or loaded from a file

Returns:: void

void Tinkercell::MainWindow::itemsInserted	(	NetworkHandle *	win,
		const QList< ItemHandle * > &
	)		`[signal]`

A convenient signal that is emitted when items are inserted from a GraphicsScene or TextEditor. Warning: listening to the other itemsInserted signals may cause redundancy.

Parameters:

NetworkHandle*	where the editting happened
QList<TextItem*>	new items

void Tinkercell::MainWindow::itemsInsertedSlot	(	GraphicsScene *	scene,
		const QList< QGraphicsItem * > &	item,
		const QList< ItemHandle * > &	handles,
		GraphicsScene::InsertType
	)		`[protected, slot]`

signals whenever items are added

Parameters:

GraphicsScene	* scene where the items were added
QList<QGraphicsItem*>&	list of new items
QList<ItemHandle*>&	list of new handles (does NOT have to be the same number as items)

Returns:: void

void Tinkercell::MainWindow::itemsMoved	(	GraphicsScene *	scene,
		const QList< QGraphicsItem * > &	item,
		const QList< QPointF > &	distance
	)		`[signal]`

signals whenever items are being moved (each item is the top-most item)

Parameters:

GraphicsScene	* scene where the items were moved
QList<QGraphicsItem*>&	list of pointes to all moving items
QPointF	distance by which items moved
Qt::KeyboardModifiers	modifier keys being used when mouse clicked

Returns:: void

void Tinkercell::MainWindow::itemsRemoved	(	GraphicsScene *	scene,
		const QList< QGraphicsItem * > &	item,
		const QList< ItemHandle * > &	handles
	)		`[signal]`

signals whenever items are deleted

Parameters:

GraphicsScene	* scene where the items were removed
QList<QGraphicsItem*>&	list of items removed
QList<ItemHandle*>&	list of handles removed (does NOT have to be the same number as items removed)

Returns:: void

void Tinkercell::MainWindow::itemsRemoved	(	NetworkHandle *	win,
		const QList< ItemHandle * > &
	)		`[signal]`

A convenient signal that is emitted when items are removed from a GraphicsScene or TextEditor. Warning: listening to the other itemsRemoved signals may cause redundancy.

Parameters:

NetworkHandle*	where the editting happened
ItemHandle*	removed items

void Tinkercell::MainWindow::itemsRemovedSlot	(	GraphicsScene *	scene,
		const QList< QGraphicsItem * > &	item,
		const QList< ItemHandle * > &	handles
	)		`[protected, slot]`

signals whenever items are deleted

Parameters:

GraphicsScene	* scene where the items were removed
QList<QGraphicsItem*>&	list of items removed
QList<ItemHandle*>&	list of handles removed (does NOT have to be the same number as items removed)

Returns:: void

void Tinkercell::MainWindow::itemsRenamed	(	NetworkHandle *	window,
		const QList< ItemHandle * > &	items,
		const QList< QString > &	oldnames,
		const QList< QString > &	newnames
	)		`[signal]`

signals whenever an item is renamed

Parameters:

NetworkHandle	* window where the event took place
QList<ItemHandle*>&	items
QList<QString>&	old names
QList<QString>&	new names

Returns:: void

void Tinkercell::MainWindow::itemsSelected	(	GraphicsScene *	scene,
		const QList< QGraphicsItem * > &	items,
		QPointF	point,
		Qt::KeyboardModifiers	modifiers
	)		`[signal]`

signals whenever a new item is selected (item can be sub-item, not top-level)

Parameters:

GraphicsScene	* scene where items are selected
QList<QGraphicsItem*>&	list of all selected item pointers
QPointF	point where mouse is clicked
Qt::KeyboardModifiers	modifier keys being used when mouse clicked

Returns:: void

void Tinkercell::MainWindow::keyPressed	(	GraphicsScene *	scene,
		QKeyEvent *
	)		`[signal]`

signals whenever a key is pressed

Parameters:

GraphicsScene	* scene where the event took place
QKeyEvent	* key that is pressed

Returns:: void

void Tinkercell::MainWindow::keyReleased	(	GraphicsScene *	scene,
		QKeyEvent *
	)		`[signal]`

signals whenever a key is released

Parameters:

GraphicsScene	* scene where the event took place
QKeyEvent	* key that is released

Returns:: void

void Tinkercell::MainWindow::lineChanged	(	TextEditor *	,
		int	,
		const QString &
	)		`[signal]`

the cursor has moved to a different line

Parameters:

TextEditor*	editor
int	index of the current line
QString	current line text

void Tinkercell::MainWindow::loadDefaultPlugins ( ) [protected]

load default plugins

Returns:: void

void Tinkercell::MainWindow::loadDynamicLibrary ( const QString & )

Load a new plugin (dll)

Parameters:

the	complete path of the dll file

Returns:: void

void Tinkercell::MainWindow::loadFiles ( const QList< QFileInfo > & files ) [protected, slot]

loads files (library files or Network files)

Parameters:

QList<QFileInfo>& the name(s) of the file(s)

Returns:: void

Here is the caller graph for this function:

void Tinkercell::MainWindow::loadNetwork	(	const QString &	filename,
		bool *	alreadyLoaded = `0`
	)		`[signal]`

signals when user selects a file to open in the current network

Parameters:

QString&	file that is selected by user
bool*	file already loaded by another plugin

Returns:: void

void Tinkercell::MainWindow::mouseDoubleClicked	(	GraphicsScene *	scene,
		QPointF	point,
		QGraphicsItem *	,
		Qt::MouseButton	,
		Qt::KeyboardModifiers	modifiers
	)		`[signal]`

emits event when mouse is double clicked

Parameters:

GraphicsScene	* scene where the event took place
point	where mouse is clicked
modifier	keys being used when mouse clicked

Returns:: void

void Tinkercell::MainWindow::mouseDragged	(	GraphicsScene *	scene,
		QPointF	from,
		QPointF	to,
		Qt::MouseButton	,
		Qt::KeyboardModifiers	modifiers
	)		`[signal]`

signals whenever mouse is dragged from one point to another

Parameters:

GraphicsScene	* scene where the event took place
QPointF	point where mouse is clicked first
QPointF	point where mouse is released
Qt::MouseButton	button being pressed
Qt::KeyboardModifiers	modifier keys being used when mouse clicked

Returns:: void

void Tinkercell::MainWindow::mouseMoved	(	GraphicsScene *	scene,
		QGraphicsItem *	item,
		QPointF	point,
		Qt::MouseButton	,
		Qt::KeyboardModifiers	modifiers,
		QList< QGraphicsItem * > &
	)		`[signal]`

signals whenever mouse moves, and indicates whether it is on top of an item

Parameters:

GraphicsScene	* scene where the event took place
QGraphicsItem*	pointer to item that mouse is on top of
QPointF	point where mouse is clicked
Qt::MouseButton	button being pressed
Qt::KeyboardModifiers	modifier keys being used when mouse clicked
QList<QGraphicsItem*>&	list of items that are being moved with the mouse

Returns:: void

void Tinkercell::MainWindow::mouseOnTopOf	(	GraphicsScene *	scene,
		QGraphicsItem *	item,
		QPointF	point,
		Qt::KeyboardModifiers	modifiers,
		QList< QGraphicsItem * > &
	)		`[signal]`

signals whenever mouse is on top of an item

Parameters:

GraphicsScene	* scene where the event took place
QGraphicsItem*	pointer to item that mouse is on top of
QPointF	point where mouse is clicked
Qt::KeyboardModifiers	modifier keys being used when mouse clicked
QList<QGraphicsItem*>&	list of items that are being moved with the mouse

Returns:: void

void Tinkercell::MainWindow::mousePressed	(	GraphicsScene *	scene,
		QPointF	point,
		Qt::MouseButton	,
		Qt::KeyboardModifiers	modifiers
	)		`[signal]`

signals whenever an empty node of the screen is clicked

Parameters:

GraphicsScene	* scene where the event took place
QPointF	point where mouse is clicked
Qt::MouseButton	which button was pressed
Qt::KeyboardModifiers	modifier keys being used when mouse clicked

Returns:: void

void Tinkercell::MainWindow::mouseReleased	(	GraphicsScene *	scene,
		QPointF	point,
		Qt::MouseButton	,
		Qt::KeyboardModifiers	modifiers
	)		`[signal]`

signals whenever an empty node of the screen is clicked

Parameters:

GraphicsScene	* scene where the event took place
QPointF	point where mouse is clicked
Qt::MouseButton	which button was pressed
Qt::KeyboardModifiers	modifier keys being used when mouse clicked

Returns:: void

void Tinkercell::MainWindow::networkClosed ( NetworkHandle * ) [signal]

signals after a window is closed

Parameters:

NetworkHandle * the window that was closed

Returns:: void

void Tinkercell::MainWindow::networkClosing	(	NetworkHandle *	,
		bool *
	)		`[signal]`

signals when a network is going to close

Parameters:

NetworkHandle	* the network that is closing
Boolean	setting to false will prevent this window from closing

Returns:: void

void Tinkercell::MainWindow::networkLoaded ( NetworkHandle * ) [signal]

signals informs that the current network has just loaded a new Network

Parameters:

NetworkHandle * the window where network was loaded (usually current scene)

Returns:: void

void Tinkercell::MainWindow::networkOpened ( NetworkHandle * ) [signal]

signals whenever the new network is opened

Parameters:

NetworkHandle* the current new window

Returns:: void

QList<NetworkHandle*> Tinkercell::MainWindow::networks ( ) const

gets all the windows in the main window

Returns:: QList<NetworkHandle*> list of windows

void Tinkercell::MainWindow::networkSaved ( NetworkHandle * ) [signal]

signals when a tool has saved the network in a file

Parameters:

NetworkHandle * the window where network was loaded (usually current scene)

Returns:: void

GraphicsScene* Tinkercell::MainWindow::newScene ( ) [slot]

create new scene

TextEditor* Tinkercell::MainWindow::newTextEditor ( ) [slot]

create new text editor

void Tinkercell::MainWindow::open ( ) [slot]

triggered when the open button is clicked. Opens a file dialog. Note: the core library just emits a signal, and other tools are responsible for actually opening a file

Here is the caller graph for this function:

void Tinkercell::MainWindow::open ( const QString & ) [slot]

open a file. Note: the core library just emits a signal, and other tools are responsible for actually opening a file The main window does not implement an function for opening a new file

void Tinkercell::MainWindow::parentHandleChanged	(	NetworkHandle *	scene,
		const QList< ItemHandle * > &	,
		const QList< ItemHandle * > &
	)		`[signal]`

signals whenever item parent handle is changed

Parameters:

NetworkHandle	* window where the event took place
QList<ItemHandle*>&	child items
QList<ItemHandle*>&	old parents

Returns:: void

void Tinkercell::MainWindow::parentItemChanged	(	GraphicsScene *	scene,
		const QList< QGraphicsItem * > &	items,
		const QList< QGraphicsItem * > &	parents
	)		`[signal]`

signals whenever item parents are changed

Parameters:

GraphicsScene	* scene where the event took place
QList<QGraphicsItem*>&	items
QList<QGraphicsItem*>&	new parents

Returns:: void

void Tinkercell::MainWindow::parse ( TextEditor * ) [signal]

request to parse the text in the current text editor

Parameters:

TextEditor* editor

void Tinkercell::MainWindow::paste ( ) [slot]

calls current scene or text editor's paste

void Tinkercell::MainWindow::popIn ( NetworkWindow * ) [protected, slot]

pop-in the given window

Here is the caller graph for this function:

void Tinkercell::MainWindow::popOut ( ) [slot]

pop-out the current window

Here is the caller graph for this function:

void Tinkercell::MainWindow::popOut ( NetworkWindow * ) [protected, slot]

pop-out the given window

void Tinkercell::MainWindow::prepareNetworkForSaving	(	NetworkHandle *	,
		bool *
	)		`[signal]`

signals when a tool is about to save a network

Parameters:

NetworkHandle * the window where Network was loaded (usually current scene)

Returns:: void

void Tinkercell::MainWindow::print ( ) [slot]

triggered when the print button is clicked. Calls current scene's print

void Tinkercell::MainWindow::printToFile	(	const QString &	filename = `QString()`,
		int	w = `0`,
		int	h = `0`
	)		`[slot]`

triggered when the print-to-file button is clicked. Calls current scene's print on a pdf file

void Tinkercell::MainWindow::readSettings ( ) [slot]

read initial settings from settingsFileName

Returns:: void

void Tinkercell::MainWindow::redo ( ) [slot]

calls current scene or text editor's redo

void Tinkercell::MainWindow::remove ( ) [slot]

calls current scene or text editor's find

void Tinkercell::MainWindow::saveNetwork ( const QString & filename ) [signal]

signals when user selects a file to save the current network to

Parameters:

QString& file that is selected by user

Returns:: void

void Tinkercell::MainWindow::saveSettings ( ) [protected]

save initial settings to settingsFileName

Returns:: void

void Tinkercell::MainWindow::saveWindow ( ) [slot]

triggered when the save button is clicked. Opens a file dialog and emits the save signal. The main window itself does not implement the save.

void Tinkercell::MainWindow::saveWindowAs ( ) [slot]

triggered when the save-as button is clicked. Opens a file dialog and emits the save signal. The main window itself does not implement the save.

void Tinkercell::MainWindow::sceneRightClick	(	GraphicsScene *	scene,
		QGraphicsItem *	item,
		QPointF	point,
		Qt::KeyboardModifiers	modifiers
	)		`[signal]`

signals whenever right click is made on an item or sceen

Parameters:

GraphicsScene	* scene where the event took place
QGraphicsItem*	pointer to item that mouse is clicked on
QPointF	point where mouse is clicked
Qt::KeyboardModifiers	modifier keys being used when mouse clicked

Returns:: void

void Tinkercell::MainWindow::selectAll ( ) [slot]

calls current scene or text editor's selectAll

void Tinkercell::MainWindow::sendEscapeSignal ( const QWidget * w = 0 ) [slot]

sends a signal to all plugins telling them to exit their current processes.

void Tinkercell::MainWindow::setCurrentWindow ( NetworkWindow * ) [protected, slot]

sets the active window

Here is the caller graph for this function:

void Tinkercell::MainWindow::setCursor ( QCursor cursor )

set the cursor for all windows

Parameters:

QCursor cursor

Returns:: void

void Tinkercell::MainWindow::setGridSize ( ) [slot]

set grid size for current scene

void Tinkercell::MainWindow::setupFunctionPointers ( QLibrary * ) [signal]

signals when a new FuntionToSignal is constructed

Parameters:

QLibrary * the new FuntionToSignal instance

Returns:: void

void Tinkercell::MainWindow::setupFunctionPointersSlot	(	QSemaphore *	,
		QLibrary *
	)		`[protected, slot]`

send signal to other tools so that they can connect functions to signals

Parameters:

QSemaphore*	semaphore
QLibrary	* the dynamic library instance

Returns:: void

void Tinkercell::MainWindow::setupNewThread	(	QSemaphore *	,
		QLibrary *
	)

This function is usually called from a new thread. This function allows all the plugins to add their functionalities to the C function pointer of the new thread.

Parameters:

QSemaphore*	used to wait for all the plugins to initialize the thread
QLibrary*	the library to load

Returns:: void

Here is the caller graph for this function:

void Tinkercell::MainWindow::setUserHome ( ) [slot]

asks user for a new directory to be used as the user home directory (must be writtable)

virtual void Tinkercell::MainWindow::tabIndexChanged ( int ) [protected, virtual, slot]

tab changed

void Tinkercell::MainWindow::textChanged	(	TextEditor *	,
		const QString &	,
		const QString &	,
		const QString &
	)		`[signal]`

some text inside this editor has been changed

Parameters:

TextEditor*	editor
QString	old text (usually a line)
QString	new text (usually a line)

virtual Tool* Tinkercell::MainWindow::tool ( const QString & ) const [virtual]

get a tool

Parameters:

QString name of the tool

Returns:: Tool*

Here is the caller graph for this function:

void Tinkercell::MainWindow::toolAboutToBeLoaded	(	Tool *	tool,
		bool *	shouldLoad
	)		`[signal]`

a new tool is about to be added. This signal can be used to prevent the tool from being added

Parameters:

Tool	the tool itself
bool&	set this bool to false to prevent the tool from loading

Returns:: void

void Tinkercell::MainWindow::toolLoaded ( Tool * tool ) [signal]

signals when a new tool (plugin) is loaded

Parameters:

Tool* the new tool

Returns:: void

virtual QList<Tool*> Tinkercell::MainWindow::tools ( const QString & category = QString() ) const [virtual]

get all tools

Parameters:

QString (optional) return only tools in this category, e.g. "plot"

Returns:: QList<Tool*>

void Tinkercell::MainWindow::undo ( ) [slot]

calls current scene or text editor's undo

void Tinkercell::MainWindow::windowChanged	(	NetworkWindow *	,
		NetworkWindow *
	)		`[signal]`

signals whenever the current window changes

Parameters:

NetworkWindow*	the previous windpw
NetworkWindow*	the current new window

Returns:: void

Friends And Related Function Documentation

friend class DroppableTabWidget [friend]

Definition at line 100 of file MainWindow.h.

friend class GlobalSettings [friend]

Definition at line 853 of file MainWindow.h.

friend class GraphicsScene [friend]

Definition at line 97 of file MainWindow.h.

friend class GraphicsView [friend]

Definition at line 99 of file MainWindow.h.

friend class NetworkHandle [friend]

Definition at line 96 of file MainWindow.h.

friend class NetworkWindow [friend]

Definition at line 95 of file MainWindow.h.

friend class TextEditor [friend]

Definition at line 98 of file MainWindow.h.

Member Data Documentation

QList<NetworkHandle*> Tinkercell::MainWindow::allNetworks [protected]

the list of all network windows

Definition at line 815 of file MainWindow.h.

bool Tinkercell::MainWindow::allowViewModeToChange [protected]

allowed views

Definition at line 796 of file MainWindow.h.

ConsoleWindow* Tinkercell::MainWindow::consoleWindow [protected]

the general window for command, errors, and messages

Definition at line 800 of file MainWindow.h.

QMenu Tinkercell::MainWindow::contextEditorMenu

the context menu that is shown during right-click event on a text editor with no text selected. Plugins can add new actions to this menu.

Definition at line 263 of file MainWindow.h.

QMenu Tinkercell::MainWindow::contextItemsMenu

the context menu that is shown during right-click event on selected graphical items. Plugins can add new actions to this menu.

Definition at line 248 of file MainWindow.h.

QMenu Tinkercell::MainWindow::contextScreenMenu

the context menu that is shown during right-click event on the scene. Plugins can add new actions to this menu.

Definition at line 253 of file MainWindow.h.

QMenu Tinkercell::MainWindow::contextSelectionMenu

the context menu that is shown during right-click event on a text editor with text selected. Plugins can add new actions to this menu.

Definition at line 258 of file MainWindow.h.

NetworkWindow* Tinkercell::MainWindow::currentNetworkWindow [protected]

keep pointer to last selected window. Used by windowChanged signal

Definition at line 821 of file MainWindow.h.

TOOL_WINDOW_OPTION Tinkercell::MainWindow::defaultConsoleWindowOption [static]

the default option to use for console window

Definition at line 115 of file MainWindow.h.

TOOL_WINDOW_OPTION Tinkercell::MainWindow::defaultHistoryWindowOption [static]

the default option to use for history window

Definition at line 112 of file MainWindow.h.

TOOL_WINDOW_OPTION Tinkercell::MainWindow::defaultToolWindowOption [static]

the default option to use for tools (optional)

Definition at line 109 of file MainWindow.h.

QHash<QString,QLibrary*> Tinkercell::MainWindow::dynamicallyLoadedLibraries [protected]

the loaded dynamic libraries indexed by file name

Definition at line 798 of file MainWindow.h.

QMenu* Tinkercell::MainWindow::editMenu

The edit menu. Plugins can add new actions to this menu.

Definition at line 271 of file MainWindow.h.

QMenu* Tinkercell::MainWindow::fileMenu

The file menu. Plugins can add new actions to this menu.

Definition at line 267 of file MainWindow.h.

QMenu* Tinkercell::MainWindow::helpMenu

The help menu.

Definition at line 279 of file MainWindow.h.

HistoryWindow Tinkercell::MainWindow::historyWindow [protected]

history view, not the stack itself. The stack is stored within each NetworkHandle

Definition at line 819 of file MainWindow.h.

QHash<void*,bool> Tinkercell::MainWindow::invalidPointers [static]

stores list of all pointers that have been deleted (to prevent double-deletions)

Definition at line 848 of file MainWindow.h.

QMenu* Tinkercell::MainWindow::parsersMenu

the menu for choosing one of the available parsers (will be 0 if there are no parsers)

Definition at line 287 of file MainWindow.h.

QString Tinkercell::MainWindow::previousFileName [static]

stores the last opened directory

Definition at line 845 of file MainWindow.h.

QMenu* Tinkercell::MainWindow::settingsMenu

the menu for settings such as default plugins, Tinkercell home directory, etc.

Definition at line 283 of file MainWindow.h.

DroppableTabWidget* Tinkercell::MainWindow::tabWidget [protected]

the central multi-document interface widget

Definition at line 813 of file MainWindow.h.

QToolBar* Tinkercell::MainWindow::toolBarBasic

The tool bar that contains new, open, close, etc. actions.

Definition at line 291 of file MainWindow.h.

QToolBar* Tinkercell::MainWindow::toolBarEdits

The tool bar that contains copy, paste, undo, etc.

Definition at line 295 of file MainWindow.h.

QToolBar* Tinkercell::MainWindow::toolBarForTools

One of the initial tool bars which designated for tools that do not want to create a new toolbar.

Definition at line 300 of file MainWindow.h.

QHash<QString,Tool*> Tinkercell::MainWindow::toolsHash [protected]

all the tools (plug-ins) are stored here, indexed by their names

Definition at line 823 of file MainWindow.h.

QHash<QString,Tool*> Tinkercell::MainWindow::toolsHashByCategory [protected]

this is a multiple hash. All the tool are stored here indexed by their category names (if they have a category)

Definition at line 825 of file MainWindow.h.

QToolBox* Tinkercell::MainWindow::toolsWidget [protected]

the optional tool box that will only appear if one of the plug-ins uses the tab widget argument in the addToolWindow call

Definition at line 817 of file MainWindow.h.

QList<QWidget*> Tinkercell::MainWindow::toolWindows

the set of all windows inseted in the main window using addToolWindow

Definition at line 243 of file MainWindow.h.

QMenu* Tinkercell::MainWindow::viewMenu

The view menu. New docking windows are automatically added here.

Definition at line 275 of file MainWindow.h.

The documentation for this class was generated from the following file:

MainWindow.h

Public Types

Public Member Functions

Public Attributes

Static Public Attributes

Friends

slots

signals

Detailed Description

Member Enumeration Documentation

Constructor & Destructor Documentation

Member Function Documentation

Friends And Related Function Documentation

Member Data Documentation
