everything other than the main window is a tool More...

#include <Tool.h>

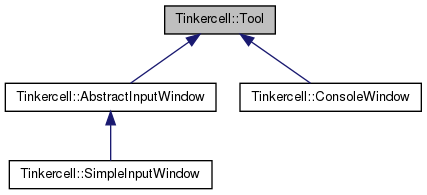

Inheritance diagram for Tinkercell::Tool:

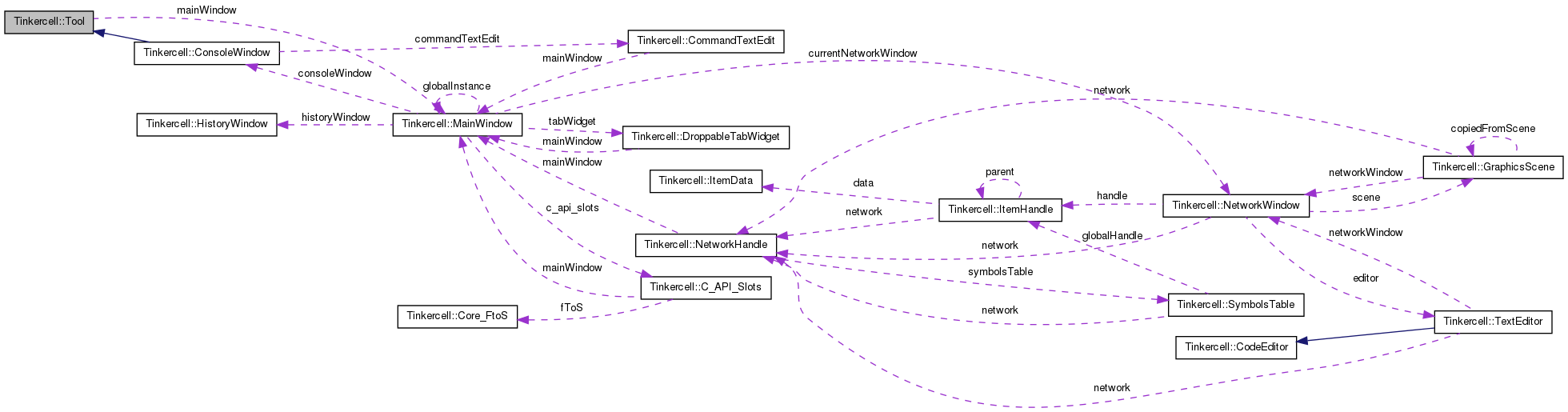

Collaboration diagram for Tinkercell::Tool:

Public Slots
virtual void	select (int i=0)
	what happens when this tool is selected
virtual void	deselect (int i=0)
	what happens when this tool is deselected
virtual void	addAction (const QIcon &, const QString &text=QString(), const QString &tooltip=QString())
	add an action that will be displayed in the context menu when specific items with this tool in their tools list are selected
virtual void	addGraphicsItem (ToolGraphicsItem *)
	add a graphics item that will be displayed on the current scene when specific items with this tool in their tools list are selected
Signals
void	selected ()
	this tool is selected
void	deselected ()
	this tool is deselected
Public Member Functions
	Tool ()
	constructor
	~Tool ()
	destructor. removes graphicsItem and toolButton is not 0
	Tool (const QString &Name, const QString &category=QString(), QWidget *parent=0)
	constructor

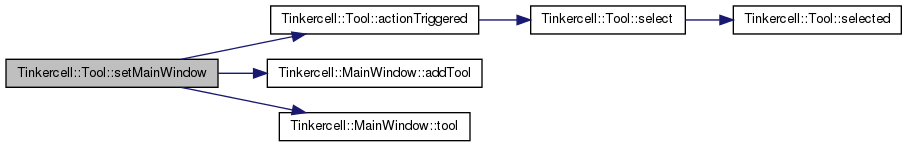

virtual bool	setMainWindow (MainWindow *main)
	set the main window for this tool
ConsoleWindow *	console ()
	console window (same as mainWindow->console())
GraphicsScene *	currentScene () const
	the main window's current scene
TextEditor *	currentTextEditor () const
	the main window's current text editor
NetworkHandle *	currentNetwork () const
	the main window's current network
NetworkWindow *	currentWindow () const
	the main window's current network's current window
QPair< QList< ItemHandle * > , QList< QGraphicsItem * > >	getItemsFromFile (const QString &filename)
	get the items inside a file. Some tool must implement this function and connect to the getItemsFromFile signal. The Core library does not implement a read file function.
Static Public Member Functions
static QString	homeDir ()
	same as MainWindow::homeDir
static QString	tempDir ()
	same as MainWindow::tempDir
Public Attributes
QString	name
	name of this tool
QString	category
	category that this tool belongs in
QString	description
	brief description of this tool
MainWindow *	mainWindow
	main window for this tool
Protected Slots
virtual void	actionTriggered (QAction *action)
	context menu action triggered
Friends
class	GraphicsScene
class	TextEditor
class	MainWindow
class	NetworkHandle
class	ToolGraphicsItem

Detailed Description

everything other than the main window is a tool

Definition at line 40 of file Tool.h.

Constructor & Destructor Documentation

Tinkercell::Tool::Tool ( )

constructor

Definition at line 59 of file Tool.cpp.

Tinkercell::Tool::~Tool ( )

destructor. removes graphicsItem and toolButton is not 0

Definition at line 46 of file Tool.cpp.

Tinkercell::Tool::Tool	(	const QString &	Name,
		const QString &	category = `QString()`,
		QWidget *	parent = `0`
	)

constructor

Parameters:

QString	name
QString	category (default = empty)
QWidget*	parent (default = 0)

Definition at line 66 of file Tool.cpp.

Member Function Documentation

void Tinkercell::Tool::actionTriggered ( QAction * action ) [protected, virtual, slot]

context menu action triggered

Definition at line 85 of file Tool.cpp.

Here is the call graph for this function:

Here is the caller graph for this function:

void Tinkercell::Tool::addAction	(	const QIcon &	icon,
		const QString &	text = `QString()`,
		const QString &	tooltip = `QString()`
	)		`[virtual, slot]`

add an action that will be displayed in the context menu when specific items with this tool in their tools list are selected

Definition at line 161 of file Tool.cpp.

void Tinkercell::Tool::addGraphicsItem ( ToolGraphicsItem * item ) [virtual, slot]

add a graphics item that will be displayed on the current scene when specific items with this tool in their tools list are selected

Definition at line 168 of file Tool.cpp.

ConsoleWindow * Tinkercell::Tool::console ( )

console window (same as mainWindow->console())

Definition at line 154 of file Tool.cpp.

Here is the call graph for this function:

Here is the caller graph for this function:

NetworkHandle * Tinkercell::Tool::currentNetwork ( ) const

the main window's current network

Returns:: NetworkHandle* current network handle

Definition at line 132 of file Tool.cpp.

Here is the call graph for this function:

GraphicsScene * Tinkercell::Tool::currentScene ( ) const

the main window's current scene

Definition at line 118 of file Tool.cpp.

Here is the call graph for this function:

TextEditor * Tinkercell::Tool::currentTextEditor ( ) const

the main window's current text editor

Definition at line 125 of file Tool.cpp.

Here is the call graph for this function:

NetworkWindow * Tinkercell::Tool::currentWindow ( ) const

the main window's current network's current window

Returns:: NetworkWindow* current network window

Definition at line 111 of file Tool.cpp.

Here is the call graph for this function:

void Tinkercell::Tool::deselect ( int i = 0 ) [virtual, slot]

what happens when this tool is deselected

Definition at line 100 of file Tool.cpp.

Here is the call graph for this function:

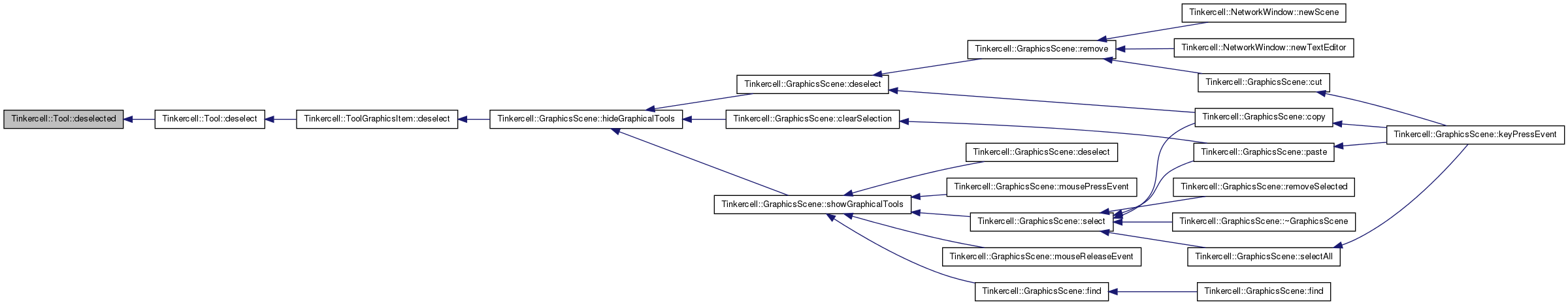

Here is the caller graph for this function:

void Tinkercell::Tool::deselected ( ) [signal]

this tool is deselected

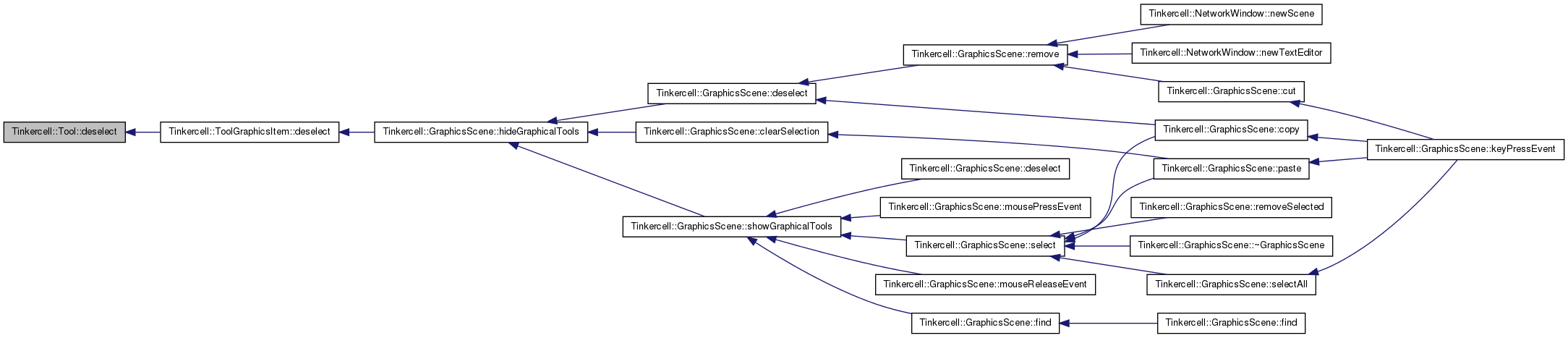

Here is the caller graph for this function:

QPair< QList< ItemHandle * >, QList< QGraphicsItem * > > Tinkercell::Tool::getItemsFromFile ( const QString & filename )

get the items inside a file. Some tool must implement this function and connect to the getItemsFromFile signal. The Core library does not implement a read file function.

Parameters:

QString& file that is selected by user
