Classes that inherit from this class can be used as GUI windows that provide interface to C programs (library files). More...

#include <AbstractInputWindow.h>

Inheritance diagram for Tinkercell::AbstractInputWindow:

[legend]

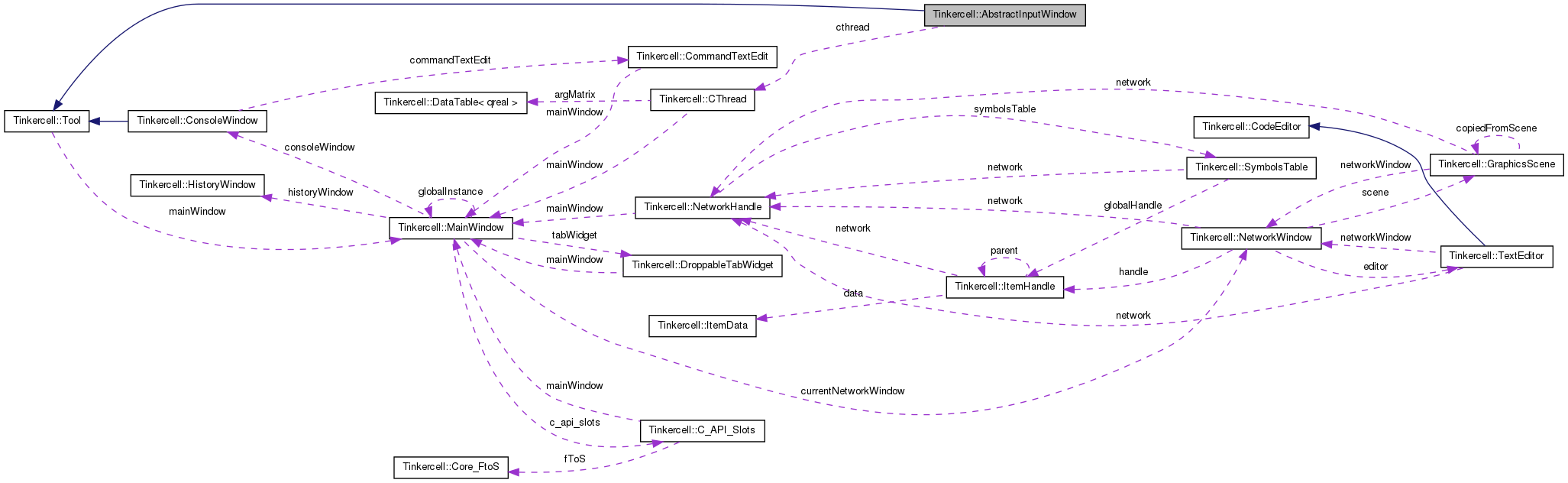

Collaboration diagram for Tinkercell::AbstractInputWindow:

[legend]

List of all members.

Public Slots
virtual void	escapeSignal (const QWidget *)
	Escape signal is a request to stop the current process. This class will hide itself as a response.
virtual void	exec ()
	Executes the CThread.
virtual void	loadAPI (Tool *)
	Uses MainWindow's setupNewThread function to setup this window's thread.
Signals
void	updateThread ()
	update the thread
void	evalScript (const QString &)
	evaluate a command using command window's eval
Protected Member Functions
	AbstractInputWindow (const QString &name=tr(""), CThread *thread=0)
	constructor
virtual bool	setMainWindow (MainWindow *main)
	Sets the main window. This function will set this tool as a docked widget by default and registed the escapeSignal event. Overwrite this function to prevent that default behavior.
virtual void	setInput (const DataTable< qreal > &)
	set the input for this input window
virtual void	setThread (CThread *)
	set the thread that will be started by this input window
virtual CThread *	thread () const
	the thread that will be started by this input window
virtual void	enterEvent (QEvent *event)
	when mouse enters this widget, the cthread is updated
Protected Attributes
CThread *	cthread
	the target thread
QDockWidget *	dockWidget
	the docked window for this widget (0 if not a docked widget)
void(*	targetFunction )(tc_matrix)
	target function for this input window

Detailed Description

Classes that inherit from this class can be used as GUI windows that provide interface to C programs (library files).

See also:: LPSolveInput

Definition at line 88 of file AbstractInputWindow.h.

Constructor & Destructor Documentation

Tinkercell::AbstractInputWindow::AbstractInputWindow	(	const QString &	name = `tr("")`,
		CThread *	thread = `0`
	)		`[protected]`

constructor

Parameters:

QString	name of this tool
CThread	the target thread to run from this input window

Definition at line 18 of file AbstractInputWindow.cpp.

Here is the call graph for this function:

Member Function Documentation

void Tinkercell::AbstractInputWindow::enterEvent ( QEvent * event ) [protected, virtual]

when mouse enters this widget, the cthread is updated

Reimplemented in Tinkercell::SimpleInputWindow.

Definition at line 115 of file AbstractInputWindow.cpp.

Here is the call graph for this function:

void Tinkercell::AbstractInputWindow::escapeSignal ( const QWidget * ) [virtual, slot]

Escape signal is a request to stop the current process. This class will hide itself as a response.

Definition at line 97 of file AbstractInputWindow.cpp.

Here is the caller graph for this function:

void Tinkercell::AbstractInputWindow::evalScript ( const QString & ) [signal]

evaluate a command using command window's eval

Here is the caller graph for this function:

void Tinkercell::AbstractInputWindow::exec ( ) [virtual, slot]

Executes the CThread.

See also:: CThread

Reimplemented in Tinkercell::SimpleInputWindow.

Definition at line 105 of file AbstractInputWindow.cpp.

Here is the call graph for this function:

void Tinkercell::AbstractInputWindow::loadAPI ( Tool * ) [virtual, slot]

Uses MainWindow's setupNewThread function to setup this window's thread.

Definition at line 48 of file AbstractInputWindow.cpp.

void Tinkercell::AbstractInputWindow::setInput ( const DataTable< qreal > & dat ) [protected, virtual]

set the input for this input window

Definition at line 60 of file AbstractInputWindow.cpp.

Here is the call graph for this function:

bool Tinkercell::AbstractInputWindow::setMainWindow ( MainWindow * main ) [protected, virtual]

Sets the main window. This function will set this tool as a docked widget by default and registed the escapeSignal event. Overwrite this function to prevent that default behavior.

Reimplemented from Tinkercell::Tool.

Definition at line 66 of file AbstractInputWindow.cpp.

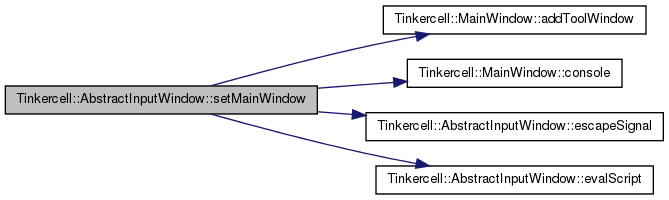

Here is the call graph for this function:
