Tinkercell::CThread Class Reference

This class is used to run specific functions inside a C dynamic library as a separate thread. The class can be used to load a library or just run a specific function inside an already loaded library. If the library is loaded by this class, the library will be unloaded upon completion on the function. To prevent the automatic unloading, use the setAutoUnload option. Only four types of functions are supported. More...

#include <CThread.h>

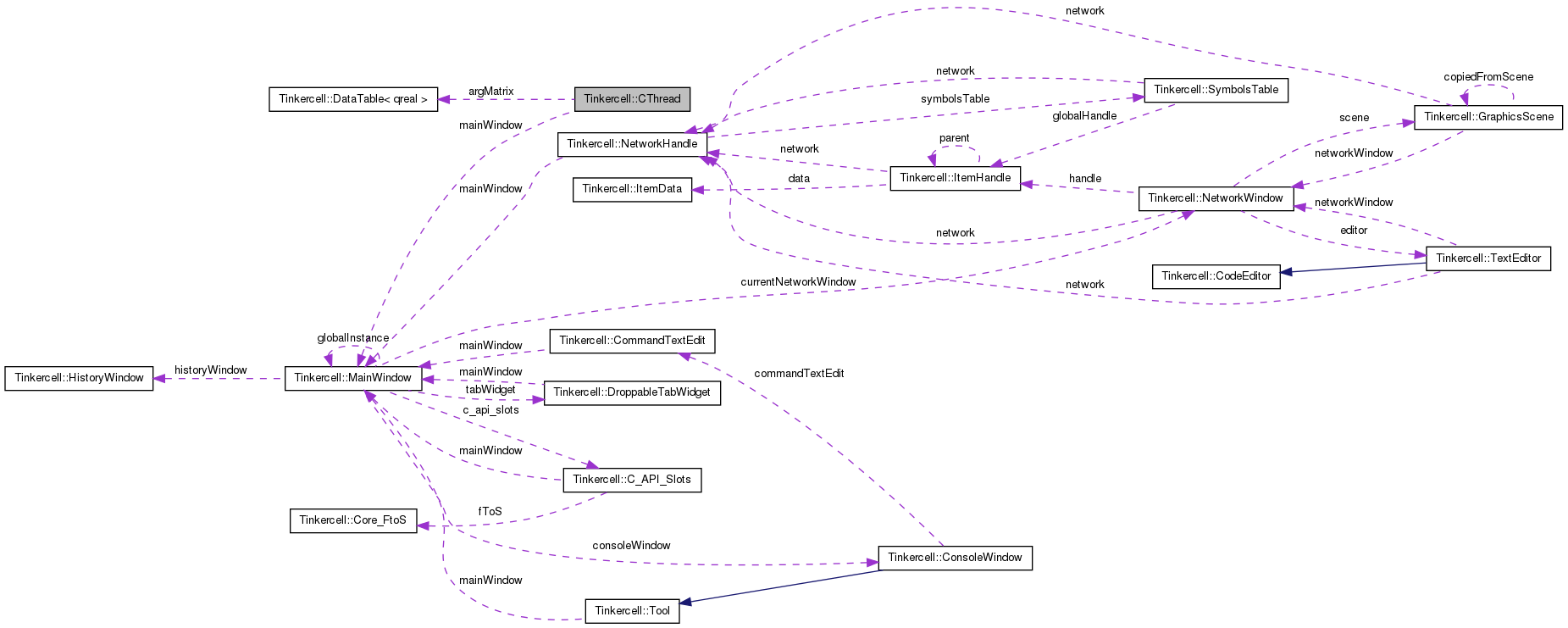

Collaboration diagram for Tinkercell::CThread:

List of all members.

Public Slots
virtual void	unload ()
	unload the C library
virtual void	update ()
	call the callback function, if one exists
Signals
void	setProgress (int)
	display progress of this thread (0-100). This signal is usually connected to a slot in ProgressBarSignalItem
void	setTitle (const QString &)
void	hideProgressBar ()
	hide the progress bar
void	showProgressBar ()
	show the progress bar
Public Member Functions
virtual void	showProgress (const QString &, int)
	show progress in a progress dialog
	CThread (MainWindow *main, QLibrary *lib=0, bool autoUnload=false)
	constructor
	CThread (MainWindow *main, const QString &lib, bool autoUnload=false)
	constructor
virtual	~CThread ()
	destructor. unload and deletes the library
virtual void	setFunction (void(*f)(void), QSemaphore *sem=0)
	set the function to run inside this threads
virtual void	setFunction (void(*f)(double), QSemaphore *sem=0)
	set the function to run inside this threads
virtual void	setFunction (void(*f)(const char *), QSemaphore *sem=0)
	set the function to run inside this threads
virtual void	setFunction (void(*f)(tc_matrix), QSemaphore *sem=0)
	set the function to run inside this threads
virtual void	setVoidFunction (const char *, QSemaphore *sem=0)
	set the function to run inside this threads
virtual void	setDoubleFunction (const char *, QSemaphore *sem=0)
	set the function to run inside this threads
virtual void	setCharFunction (const char *, QSemaphore *sem=0)
	set the function to run inside this threads
virtual void	setMatrixFunction (const char *, QSemaphore *sem=0)
	set the function to run inside this threads
virtual void	setLibrary (QLibrary *)
	set the dynamic library for this threads. The library will be loaded if it has not already been loaded
virtual void	setLibrary (const QString &)
	set the dynamic library for this threads.
virtual QLibrary *	library ()
	the library used inside this thread
virtual void	setAutoUnload (bool)
	set whether or not to automatically unload the library when the thread is done running
virtual bool	autoUnload ()
	whether or not to automatically unload the library when the thread is done running
virtual void	setArg (double, QSemaphore *sem=0)
	set the argument for the target function
virtual void	setArg (const QString &, QSemaphore *sem=0)
	set the argument for the target function
virtual void	setArg (const DataTable< qreal > &, QSemaphore *sem=0)
	set the argument for the target function
Static Public Member Functions
static QLibrary *	loadLibrary (const QString &name, QObject *parent=0)
	search the default tinkercell folders for the library and load it
Public Attributes
MainWindow *	mainWindow
	main window
Static Public Attributes
static QList< CThread * >	cthreads
	list stores pointers to different threads
Protected Slots
virtual void	cleanupAfterTerminated ()
	cleanup (such as unload libraries) upon termination
Protected Member Functions
virtual void	setupCFunctionPointers (QLibrary *lib=0)
	setup the C pointers in TC_Main.h
virtual void	call_tc_main ()
	call tc_main
virtual void	run ()
	the main function that runs one of the specified functions
Protected Attributes
bool	hasDialog
bool	autoUnloadLibrary
	whether or not to automatically unload the library when the thread is done running
void(*	f1 )(void)
	one of the functions that can be run inside this thread
void(*	f2 )(double)
	one of the functions that can be run inside this thread
void(*	f3 )(const char *)
	one of the functions that can be run inside this thread
void(*	f4 )(tc_matrix)
	one of the functions that can be run inside this thread
void(*	callbackPtr )(void)
	callback function
void(*	callWhenExitPtr )(void)
	call when exit function
QLibrary *	lib
	the library where the functions are located that can be run inside this thread
double	argDouble
	the argument for one of the the run function
QString	argString
	the argument for one of the the run function
DataTable< qreal >	argMatrix
	the argument for one of the the run function

---

Detailed Description

This class is used to run specific functions inside a C dynamic library as a separate thread. The class can be used to load a library or just run a specific function inside an already loaded library. If the library is loaded by this class, the library will be unloaded upon completion on the function. To prevent the automatic unloading, use the setAutoUnload option. Only four types of functions are supported.

Definition at line 50 of file CThread.h.

---

Constructor & Destructor Documentation

Tinkercell::CThread::CThread	(	MainWindow *	main,
		QLibrary *	lib = 0,
		bool	autoUnload = false
	)

constructor

Parameters:

MainWindow	the Tinkercell main window
QLibrary	the dynamic library to load (optional)
bool	whether or not to automatically unload the library

Definition at line 54 of file CThread.cpp.

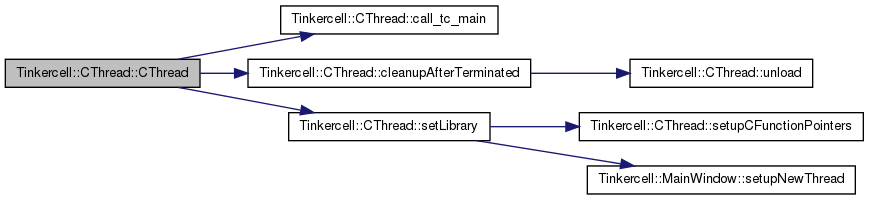

Here is the call graph for this function:

Tinkercell::CThread::CThread	(	MainWindow *	main,
		const QString &	lib,
		bool	autoUnload = false
	)

constructor

Parameters:

MainWindow	the Tinkercell main window
QString	the name of the dynamic library to load (optional)
bool	whether or not to automatically unload the library

Definition at line 74 of file CThread.cpp.

Here is the call graph for this function:

Tinkercell::CThread::~CThread

(

)

[virtual]

destructor. unload and deletes the library

Definition at line 103 of file CThread.cpp.

---

Member Function Documentation

bool Tinkercell::CThread::autoUnload

(

)

[virtual]

whether or not to automatically unload the library when the thread is done running

Returns:

bool

Definition at line 241 of file CThread.cpp.

void Tinkercell::CThread::call_tc_main

(

)

[protected, virtual]

call tc_main

Definition at line 94 of file CThread.cpp.

Here is the caller graph for this function:

void Tinkercell::CThread::cleanupAfterTerminated

(

)

[protected, virtual, slot]

cleanup (such as unload libraries) upon termination

Definition at line 292 of file CThread.cpp.

Here is the call graph for this function:

Here is the caller graph for this function:

void Tinkercell::CThread::hideProgressBar

(

)

[signal]

hide the progress bar

Here is the caller graph for this function:

QLibrary * Tinkercell::CThread::library

(

)

[virtual]

the library used inside this thread

Returns:

QLibrary*

Definition at line 231 of file CThread.cpp.

QLibrary * Tinkercell::CThread::loadLibrary	(	const QString &	name,
		QObject *	parent = 0
	)		[static]

search the default tinkercell folders for the library and load it

Parameters:

QString	name of library (with or without full path)
QObject	parent

Returns:

QLibrary* the loaded library. 0 if cannot be loaded.

Definition at line 416 of file CThread.cpp.

Here is the call graph for this function:

Here is the caller graph for this function:

void Tinkercell::CThread::run

(

)

[protected, virtual]

the main function that runs one of the specified functions

Definition at line 246 of file CThread.cpp.

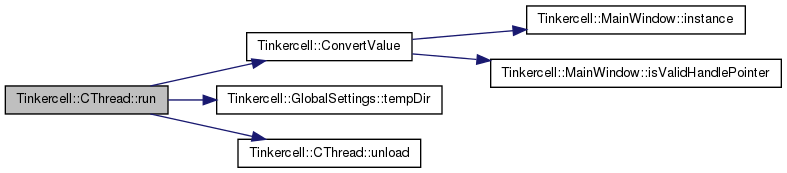

Here is the call graph for this function:

void Tinkercell::CThread::setArg	(	double	d,
		QSemaphore *	sem = 0
	)		[virtual]

set the argument for the target function

Parameters:

double

Definition at line 271 of file CThread.cpp.

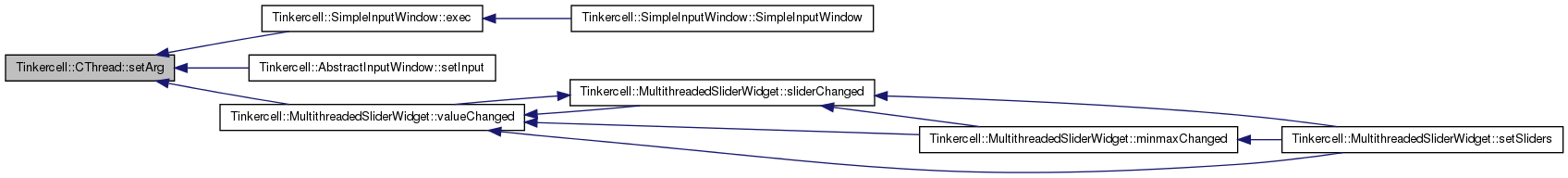

Here is the caller graph for this function:

void Tinkercell::CThread::setArg	(	const QString &	s,
		QSemaphore *	sem = 0
	)		[virtual]

set the argument for the target function

Parameters:

QString

Definition at line 278 of file CThread.cpp.

void Tinkercell::CThread::setArg	(	const DataTable< qreal > &	dat,
		QSemaphore *	sem = 0
	)		[virtual]

set the argument for the target function

Parameters:

DataTable

Definition at line 285 of file CThread.cpp.

void Tinkercell::CThread::setAutoUnload

(

bool

b

)

[virtual]

set whether or not to automatically unload the library when the thread is done running

Parameters:

bool

Definition at line 236 of file CThread.cpp.

void Tinkercell::CThread::setCharFunction	(	const char *	f,
		QSemaphore *	sem = 0
	)		[virtual]

set the function to run inside this threads

Parameters:

void	name of the function inside the library that has been loaded in this thread.

Definition at line 155 of file CThread.cpp.

void Tinkercell::CThread::setDoubleFunction	(	const char *	f,
		QSemaphore *	sem = 0
	)		[virtual]

set the function to run inside this threads

Parameters:

void	name of the function inside the library that has been loaded in this thread.

Definition at line 140 of file CThread.cpp.

void Tinkercell::CThread::setFunction	(	void(*)(void)	f,
		QSemaphore *	sem = 0
	)		[virtual]

set the function to run inside this threads

Parameters:

void	function pointer

Definition at line 118 of file CThread.cpp.

Here is the caller graph for this function:

void Tinkercell::CThread::setFunction	(	void(*)(double)	f,
		QSemaphore *	sem = 0
	)		[virtual]

set the function to run inside this threads

Parameters:

void	function pointer

Definition at line 133 of file CThread.cpp.

void Tinkercell::CThread::setFunction	(	void(*)(const char *)	f,
		QSemaphore *	sem = 0
	)		[virtual]

set the function to run inside this threads

Parameters:

void	function pointer

Definition at line 148 of file CThread.cpp.

void Tinkercell::CThread::setFunction	(	void(*)(tc_matrix)	f,
		QSemaphore *	sem = 0
	)		[virtual]

set the function to run inside this threads

Parameters:

void	function pointer

Definition at line 163 of file CThread.cpp.

void Tinkercell::CThread::setLibrary

(

QLibrary *

lib

)

[virtual]

set the dynamic library for this threads. The library will be loaded if it has not already been loaded

Parameters:

QLibrary*

library

Definition at line 204 of file CThread.cpp.

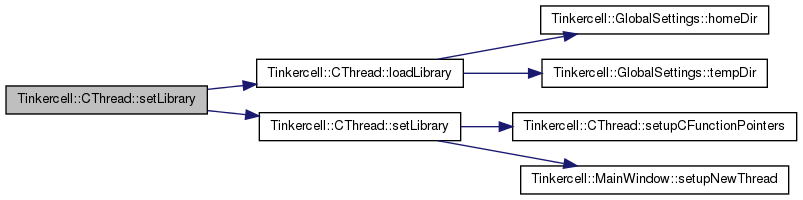

Here is the call graph for this function:

Here is the caller graph for this function:

void Tinkercell::CThread::setLibrary

(

const QString &

libname

)

[virtual]

set the dynamic library for this threads.

Parameters:

QLibrary*

library

Definition at line 219 of file CThread.cpp.

Here is the call graph for this function:

void Tinkercell::CThread::setMatrixFunction	(	const char *	f,
		QSemaphore *	sem = 0
	)		[virtual]

set the function to run inside this threads

Parameters:

void	name of the function inside the library that has been loaded in this thread.

Definition at line 170 of file CThread.cpp.

Here is the caller graph for this function:

void Tinkercell::CThread::setProgress

(

int

)

[signal]

display progress of this thread (0-100). This signal is usually connected to a slot in ProgressBarSignalItem

Here is the caller graph for this function:

void Tinkercell::CThread::setTitle

(

const QString &

)

[signal]

set title of the dialog for this thread that shows the progress bar and kill button

Here is the caller graph for this function:

void Tinkercell::CThread::setupCFunctionPointers

(

QLibrary *

lib = 0

)

[protected, virtual]

setup the C pointers in TC_Main.h

Definition at line 184 of file CThread.cpp.

Here is the caller graph for this function:

void Tinkercell::CThread::setVoidFunction	(	const char *	f,
		QSemaphore *	sem = 0
	)		[virtual]

set the function to run inside this threads

Parameters:

void	name of the function inside the library that has been loaded in this thread.

Definition at line 125 of file CThread.cpp.

void Tinkercell::CThread::showProgress	(	const QString &	title,
		int	progress
	)		[virtual]

show progress in a progress dialog

Parameters:

QString	title of the progress bar
int	progress in range 0-100

Definition at line 392 of file CThread.cpp.

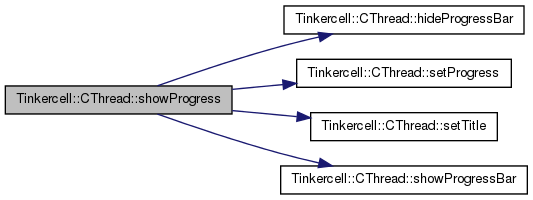

Here is the call graph for this function:

void Tinkercell::CThread::showProgressBar

(

)

[signal]

show the progress bar

Here is the caller graph for this function:

void Tinkercell::CThread::unload

(

)

[virtual, slot]

unload the C library

Definition at line 304 of file CThread.cpp.

Here is the caller graph for this function:

void Tinkercell::CThread::update

(

)

[virtual, slot]

call the callback function, if one exists

Definition at line 298 of file CThread.cpp.

---

Member Data Documentation

double Tinkercell::CThread::argDouble [protected]

the argument for one of the the run function

Definition at line 242 of file CThread.h.

DataTable<qreal> Tinkercell::CThread::argMatrix [protected]

the argument for one of the the run function

Definition at line 250 of file CThread.h.

QString Tinkercell::CThread::argString [protected]

the argument for one of the the run function

Definition at line 246 of file CThread.h.

bool Tinkercell::CThread::autoUnloadLibrary [protected]

whether or not to automatically unload the library when the thread is done running

Definition at line 210 of file CThread.h.

void(* Tinkercell::CThread::callbackPtr)(void) [protected]

callback function

Definition at line 230 of file CThread.h.

void(* Tinkercell::CThread::callWhenExitPtr)(void) [protected]

call when exit function

Definition at line 234 of file CThread.h.

QList< CThread * > Tinkercell::CThread::cthreads [static]

list stores pointers to different threads

Definition at line 91 of file CThread.h.

void(* Tinkercell::CThread::f1)(void) [protected]

one of the functions that can be run inside this thread

Definition at line 214 of file CThread.h.

void(* Tinkercell::CThread::f2)(double) [protected]

one of the functions that can be run inside this thread

Definition at line 218 of file CThread.h.

void(* Tinkercell::CThread::f3)(const char *) [protected]

one of the functions that can be run inside this thread

Definition at line 222 of file CThread.h.

void(* Tinkercell::CThread::f4)(tc_matrix) [protected]

one of the functions that can be run inside this thread

Definition at line 226 of file CThread.h.

bool Tinkercell::CThread::hasDialog [protected]

Definition at line 201 of file CThread.h.

QLibrary* Tinkercell::CThread::lib [protected]

the library where the functions are located that can be run inside this thread

Definition at line 238 of file CThread.h.

MainWindow* Tinkercell::CThread::mainWindow

main window

Definition at line 197 of file CThread.h.

---

The documentation for this class was generated from the following files:

• CThread.h
• CThread.cpp
