Tinkercell::DataTable< T > Class Template Reference

DataTable is a 2D vector with row names and column names. More...

#include <DataTable.h>

List of all members.

Public Member Functions
virtual	~DataTable ()
	destructor
	DataTable ()
	constructor
	DataTable (int rows, int columns)
	constructor
virtual QString	description () const
	get description of this table
virtual QString &	description ()
	get or set description of this table
virtual QStringList	columnNames () const
	get the column names
virtual bool	hasRow (const QString &) const
	check is this table has a row with the given name
virtual bool	hasColumn (const QString &) const
	check is this table has a column with the given name
virtual QStringList	rowNames () const
	get the row names
virtual QString	rowName (int i) const
	get the ith row name reference. can be used to change the row name
virtual QString	columnName (int i) const
	get the ith column name. cannot be used to change the column name
virtual bool	setRowName (int i, const QString &name)
	get the ith row name. cannot be used to change the row name
virtual bool	setColumnName (int i, const QString &name)
	get the ith column name reference. can be used to change the column name
virtual void	setColumnNames (const QStringList &names)
	set all the column names.
virtual void	setRowNames (const QStringList &names)
	set all the row names.
virtual int	rows () const
	get the number of rows
virtual int	columns () const
	get the number of columns
virtual T &	value (int i, int j=0)
	get the value at the ith row and jth column. can also be used to set the value
virtual T &	operator() (int i, int j=0)
	get the value at the ith row and jth column. can also be used to set the value
virtual T	operator() (int i, int j=0) const
	get the value at the ith row and jth column. can also be used to set the value
virtual T &	value (const QString &r, const QString &c)
	get the value using row and column names. can also be used to set the value. Fast lookup using hashtables.
virtual T &	operator() (const QString &r, const QString &c)
	get the value using row and column names. can also be used to set the value. Fast lookup using hashtables.
virtual T	operator() (const QString &r, const QString &c) const
	get the value using row and column names. can also be used to set the value. Fast lookup using hashtables.
virtual T &	value (const QString &r, int j=0)
	get the value using row name. can also be used to set the value. Fast lookup using hashtables.
virtual T &	operator() (const QString &r, int j=0)
	get the value using row name and column index. can also be used to set the value. Fast lookup using hashtables.
virtual T	operator() (const QString &r, int j=0) const
	get the value using row name and column index. can also be used to set the value. Fast lookup using hashtables.
virtual T &	value (int i, const QString &c)
	get the value using column name. can also be used to set the value. Fast lookup using hashtables.
virtual T &	operator() (int i, const QString &c)
	get the value using row name and column index. can also be used to set the value. Fast lookup using hashtables.
virtual T	operator() (int i, const QString &c) const
	get the value using row index and column name. can also be used to set the value. Fast lookup using hashtables.
virtual bool	operator== (const DataTable< T > &D)
	checks if the two data table's headers and contents are the same
virtual bool	operator!= (const DataTable< T > &D)
	exactly opposite of operator ==
virtual T	at (int i, int j=0) const
	get the value using row and column number. cannot also be used to set the value.
virtual T	at (const QString &r, const QString &c) const
	get the value using row and column name. cannot also be used to set the value.
virtual T	at (const QString &r, int j=0) const
	get the value using row name. cannot also be used to set the value.
virtual T	at (int i, const QString &c) const
	get the value using column name. cannot also be used to set the value.
virtual void	resize (int m, int n=1)
	set the size of the data table
virtual bool	insertRow (int k, const QString &row)
	insert a new row at the given location with the given name. Insertion will fail if there is already a row with the same name
virtual bool	insertColumn (int k, const QString &col)
	insert a new column at the given location with the given name. Insertion will fail if there is already a column with the same name
virtual bool	removeRow (int k)
	remove an existing row at the given index.
virtual bool	removeRow (const QString &name)
	remove an existing row with the given name.
virtual bool	removeColumn (int k)
	remove an existing column at the given index.
virtual bool	removeColumn (const QString &name)
	remove an existing col with the given name.
virtual void	swapRows (int i1, int i2)
	swap two rows. Nothing will happen if the given numbers are outside the table
virtual void	swapColumns (int j1, int j2)
	swap two columns. Nothing will happen if the given numbers are outside the table
virtual void	swapRows (const QString &s1, const QString &s2)
	swap two rows using their name. Nothing will happen if the given numbers are outside the table
virtual void	swapColumns (const QString &s1, const QString &s2)
	swap two columns using their name. Nothing will happen if the given numbers are outside the table
virtual DataTable< T >	transpose () const
	get transpose of the table. complexity = n*m (use sparingly)
Protected Attributes
QVector< T >	dataMatrix
	the values in the table
QVector< QString >	colHeaders
	the column and row names
QVector< QString >	rowHeaders
QHash< QString, int >	colHash
	hash for quick lookup of row and columns by name
QHash< QString, int >	rowHash
QString	desc
	a description of this table (optional)

---

Detailed Description

template<typename T>
class Tinkercell::DataTable< T >

DataTable is a 2D vector with row names and column names.

Definition at line 43 of file DataTable.h.

---

Constructor & Destructor Documentation

template<typename T>

virtual Tinkercell::DataTable< T >::~DataTable

(

)

[virtual]

destructor

template<typename T>

Tinkercell::DataTable< T >::DataTable

(

)

constructor

template<typename T>

Tinkercell::DataTable< T >::DataTable	(	int	rows,
		int	columns
	)

constructor

---

Member Function Documentation

template<typename T>

virtual T Tinkercell::DataTable< T >::at	(	int	i,
		int	j = 0
	)		const [virtual]

get the value using row and column number. cannot also be used to set the value.

Parameters:

int	row number
int	column number (defaults to 0)

Returns:

T copy of value at given row and column. returns value at 0 if row and column are not in the table

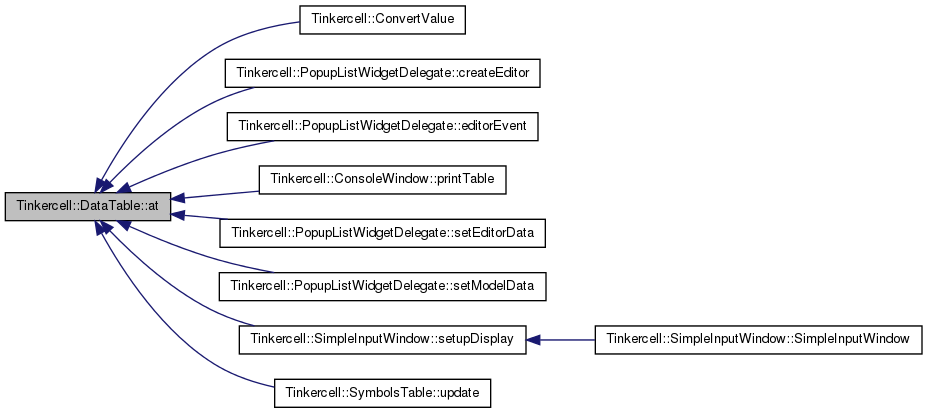

Here is the caller graph for this function:

template<typename T>

virtual T Tinkercell::DataTable< T >::at	(	int	i,
		const QString &	c
	)		const [virtual]

get the value using column name. cannot also be used to set the value.

Parameters:

int	row number
int	column name

Returns:

T copy of value at given row and column. returns value at 0 if row and column are not in the table

template<typename T>

virtual T Tinkercell::DataTable< T >::at	(	const QString &	r,
		const QString &	c
	)		const [virtual]

get the value using row and column name. cannot also be used to set the value.

Parameters:

QString	row name
QString	column name

Returns:

T copy of value at given row and column. returns value at 0 if row and column are not in the table

template<typename T>

virtual T Tinkercell::DataTable< T >::at	(	const QString &	r,
		int	j = 0
	)		const [virtual]

get the value using row name. cannot also be used to set the value.

Parameters:

QString	row name
int	column number (defaults to 0)

Returns:

T copy of value at given row and column. returns value at 0 if row and column are not in the table

template<typename T>

virtual QString Tinkercell::DataTable< T >::columnName

(

int

i

)

const [virtual]

get the ith column name. cannot be used to change the column name

Parameters:

int	col number

Returns:

QString copy of the ith column name

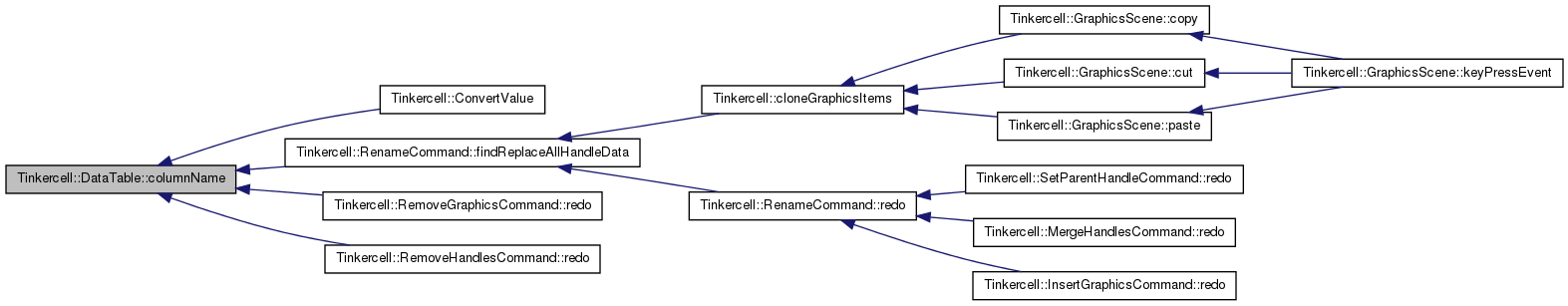

Here is the caller graph for this function:

template<typename T>

virtual QStringList Tinkercell::DataTable< T >::columnNames

(

)

const [virtual]

get the column names

Returns:

QStringList column names (copy)

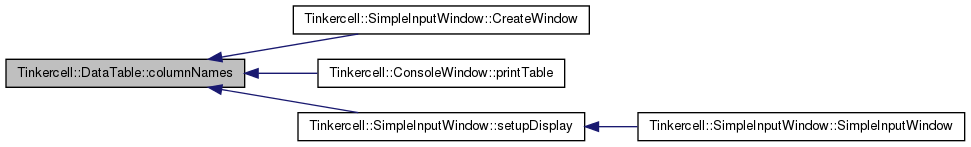

Here is the caller graph for this function:

template<typename T>

virtual int Tinkercell::DataTable< T >::columns

(

)

const [virtual]

get the number of columns

Returns:

int number of columns

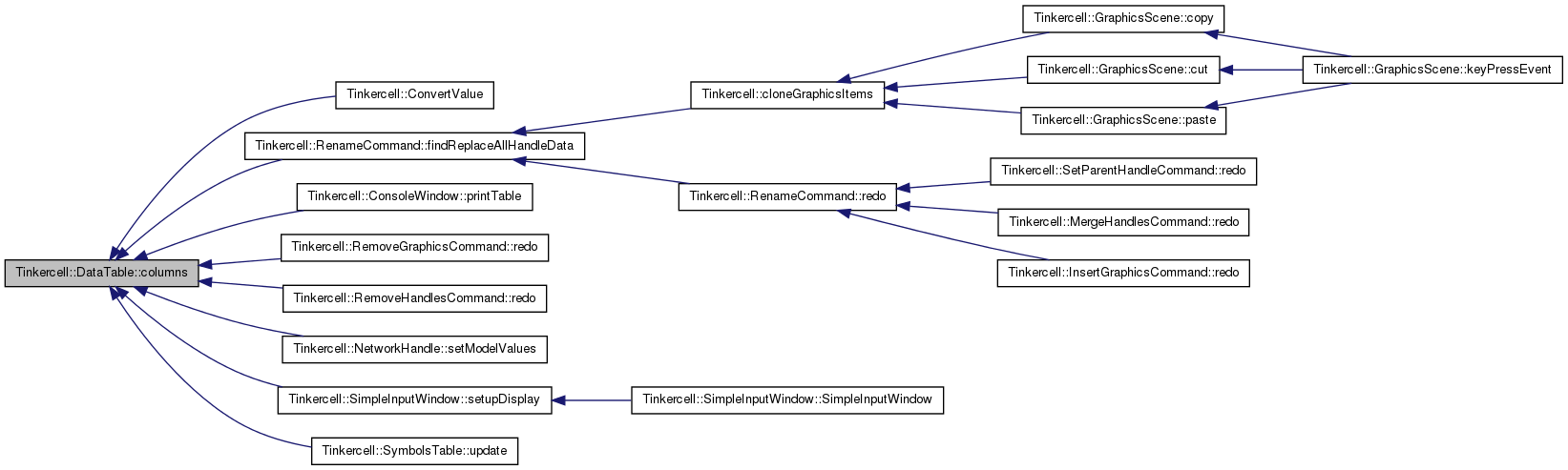

Here is the caller graph for this function:

template<typename T>

virtual QString& Tinkercell::DataTable< T >::description

(

)

[virtual]

get or set description of this table

template<typename T>

virtual QString Tinkercell::DataTable< T >::description

(

)

const [virtual]

get description of this table

template<typename T>

virtual bool Tinkercell::DataTable< T >::hasColumn

(

const QString &

)

const [virtual]

check is this table has a column with the given name

Parameters:

QString

column name

Returns:

bool true if the column with the name exists

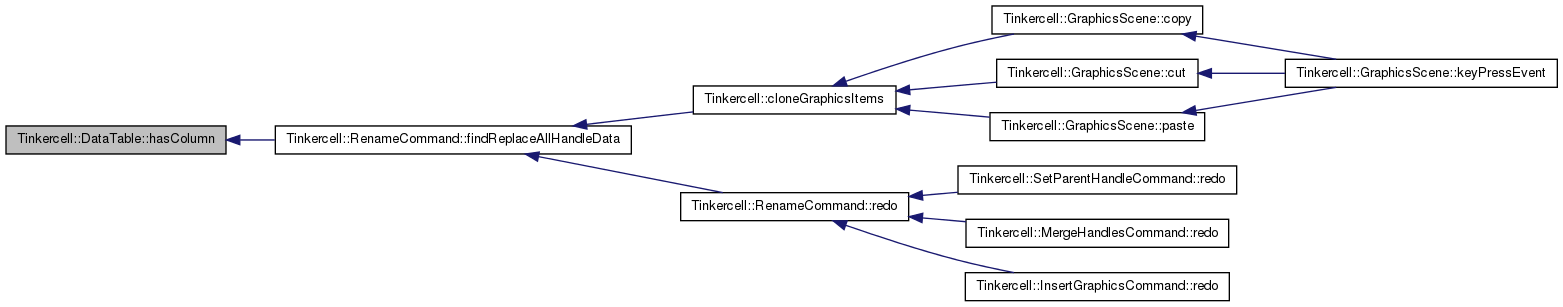

Here is the caller graph for this function:

template<typename T>

virtual bool Tinkercell::DataTable< T >::hasRow

(

const QString &

)

const [virtual]

check is this table has a row with the given name

Parameters:

QString

row name

Returns:

bool true if the row with the name exists

Here is the caller graph for this function:

template<typename T>

virtual bool Tinkercell::DataTable< T >::insertColumn	(	int	k,
		const QString &	col
	)		[virtual]

insert a new column at the given location with the given name. Insertion will fail if there is already a column with the same name

Parameters:

int	column number
QString	column name

Returns:

Boolean false if failed, true if successful

template<typename T>

virtual bool Tinkercell::DataTable< T >::insertRow	(	int	k,
		const QString &	row
	)		[virtual]

insert a new row at the given location with the given name. Insertion will fail if there is already a row with the same name

Parameters:

int	row number
QString	row name

Returns:

Boolean false if failed, true if successful

Here is the caller graph for this function:

template<typename T>

virtual bool Tinkercell::DataTable< T >::operator!=

(

const DataTable< T > &

D

)

[virtual]

exactly opposite of operator ==

Parameters:

DataTable<T>

Returns:

bool

template<typename T>

virtual T& Tinkercell::DataTable< T >::operator()	(	int	i,
		int	j = 0
	)		[virtual]

get the value at the ith row and jth column. can also be used to set the value

Parameters:

int	row number
int	column number (defaults to 0)

Returns:

T reference to value at ith row and jth column. returns value at 0 if i or j are not inside the table

template<typename T>

virtual T Tinkercell::DataTable< T >::operator()	(	int	i,
		int	j = 0
	)		const [virtual]

get the value at the ith row and jth column. can also be used to set the value

Parameters:

int	row number
int	column number (defaults to 0)

Returns:

T value at ith row and jth column. returns value at 0 if i or j are not inside the table

template<typename T>

virtual T& Tinkercell::DataTable< T >::operator()	(	const QString &	r,
		const QString &	c
	)		[virtual]

get the value using row and column names. can also be used to set the value. Fast lookup using hashtables.

Parameters:

QString	row name
QString	column name

Returns:

T reference to value at given row and column. returns value at 0 if row and column are not in the table

template<typename T>

virtual T Tinkercell::DataTable< T >::operator()	(	const QString &	r,
		const QString &	c
	)		const [virtual]

get the value using row and column names. can also be used to set the value. Fast lookup using hashtables.

Parameters:

QString	row name
QString	column name

Returns:

T value at given row and column. returns value at 0 if row and column are not in the table

template<typename T>

virtual T& Tinkercell::DataTable< T >::operator()	(	const QString &	r,
		int	j = 0
	)		[virtual]

get the value using row name and column index. can also be used to set the value. Fast lookup using hashtables.

Parameters:

QString	row name
QString	column index

Returns:

T reference to value at given row and column. returns value at 0 if row and column are not in the table

template<typename T>

virtual T Tinkercell::DataTable< T >::operator()	(	const QString &	r,
		int	j = 0
	)		const [virtual]

get the value using row name and column index. can also be used to set the value. Fast lookup using hashtables.

Parameters:

QString	row name
QString	column index

Returns:

T value at given row and column. returns value at 0 if row and column are not in the table

template<typename T>

virtual T& Tinkercell::DataTable< T >::operator()	(	int	i,
		const QString &	c
	)		[virtual]

get the value using row name and column index. can also be used to set the value. Fast lookup using hashtables.

Parameters:

QString	row index
QString	column name

Returns:

T reference to value at given row and column. returns value at 0 if row and column are not in the table

template<typename T>

virtual T Tinkercell::DataTable< T >::operator()	(	int	i,
		const QString &	c
	)		const [virtual]

get the value using row index and column name. can also be used to set the value. Fast lookup using hashtables.

Parameters:

QString	row index
QString	column name

Returns:

T value at given row and column. returns value at 0 if row and column are not in the table

template<typename T>

virtual bool Tinkercell::DataTable< T >::operator==

(

const DataTable< T > &

D

)

[virtual]

checks if the two data table's headers and contents are the same

Parameters:

DataTable<T>

Returns:

bool

template<typename T>

virtual bool Tinkercell::DataTable< T >::removeColumn

(

int

k

)

[virtual]

remove an existing column at the given index.

Parameters:

int	column number

Returns:

Boolean false if failed, true if successful

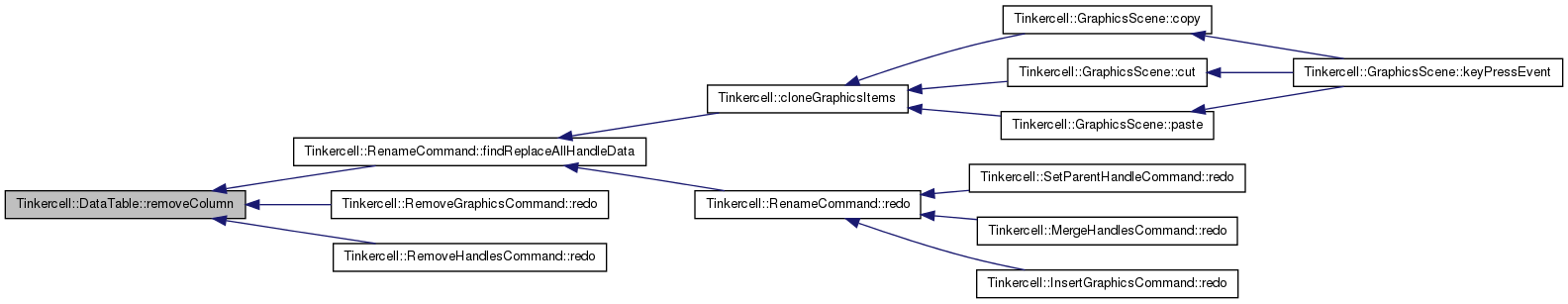

Here is the caller graph for this function:

template<typename T>

virtual bool Tinkercell::DataTable< T >::removeColumn

(

const QString &

name

)

[virtual]

remove an existing col with the given name.

Parameters:

QString

row name

Returns:

Boolean false if failed, true if successful

template<typename T>

virtual bool Tinkercell::DataTable< T >::removeRow

(

int

k

)

[virtual]

remove an existing row at the given index.

Parameters:

int	row number

Returns:

Boolean false if failed, true if successful

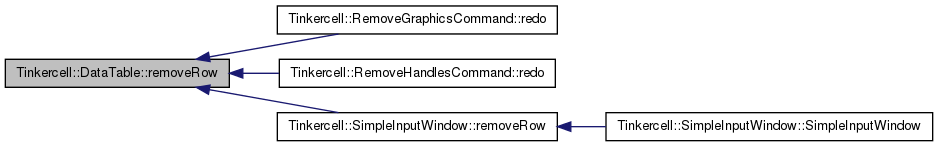

Here is the caller graph for this function:

template<typename T>

virtual bool Tinkercell::DataTable< T >::removeRow

(

const QString &

name

)

[virtual]

remove an existing row with the given name.

Parameters:

QString

row name

Returns:

Boolean false if failed, true if successful

template<typename T>

virtual void Tinkercell::DataTable< T >::resize	(	int	m,
		int	n = 1
	)		[virtual]

set the size of the data table

Parameters:

int	row count
int	column count (defaults to 1)

Returns:

void

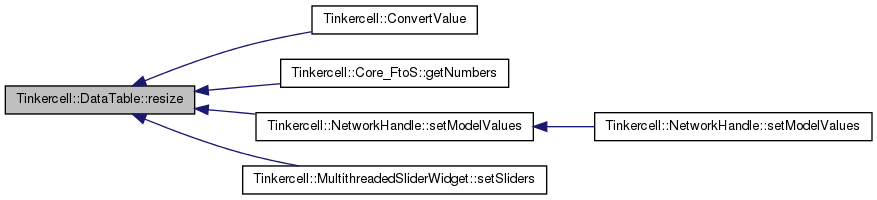

Here is the caller graph for this function:

template<typename T>

virtual QString Tinkercell::DataTable< T >::rowName

(

int

i

)

const [virtual]

get the ith row name reference. can be used to change the row name

Parameters:

int	col number

Returns:

QString copy to the ith row name

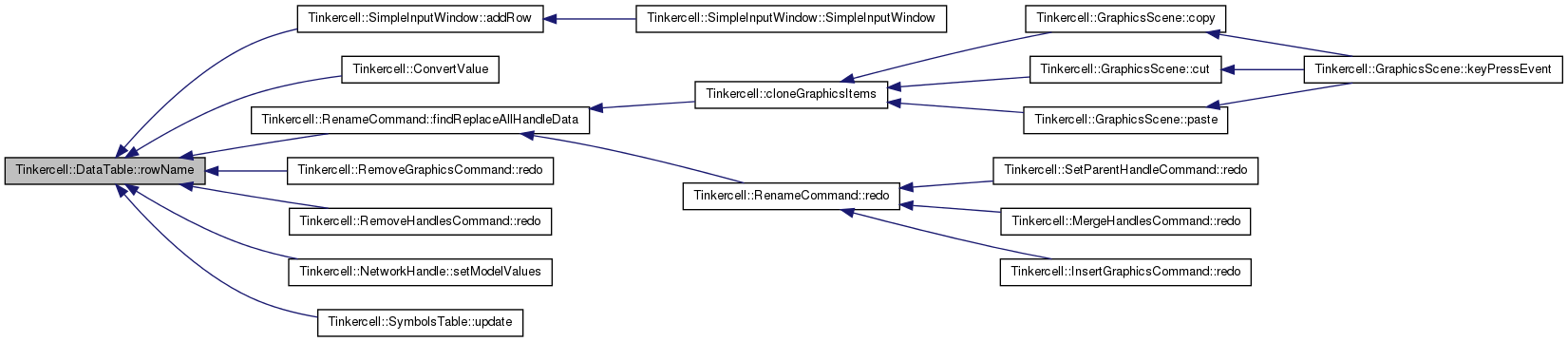

Here is the caller graph for this function:

template<typename T>

virtual QStringList Tinkercell::DataTable< T >::rowNames

(

)

const [virtual]

get the row names

Returns:

QStringList row names (copy)

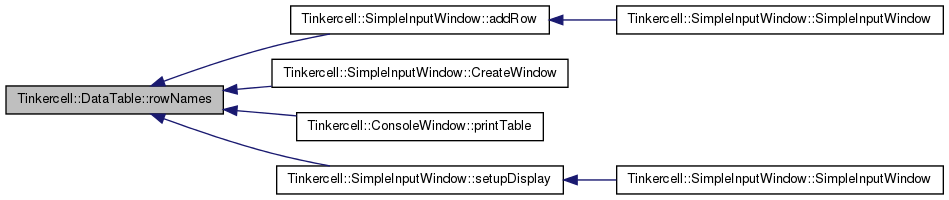

Here is the caller graph for this function:

template<typename T>

virtual int Tinkercell::DataTable< T >::rows

(

)

const [virtual]

get the number of rows

Returns:

int number of rows

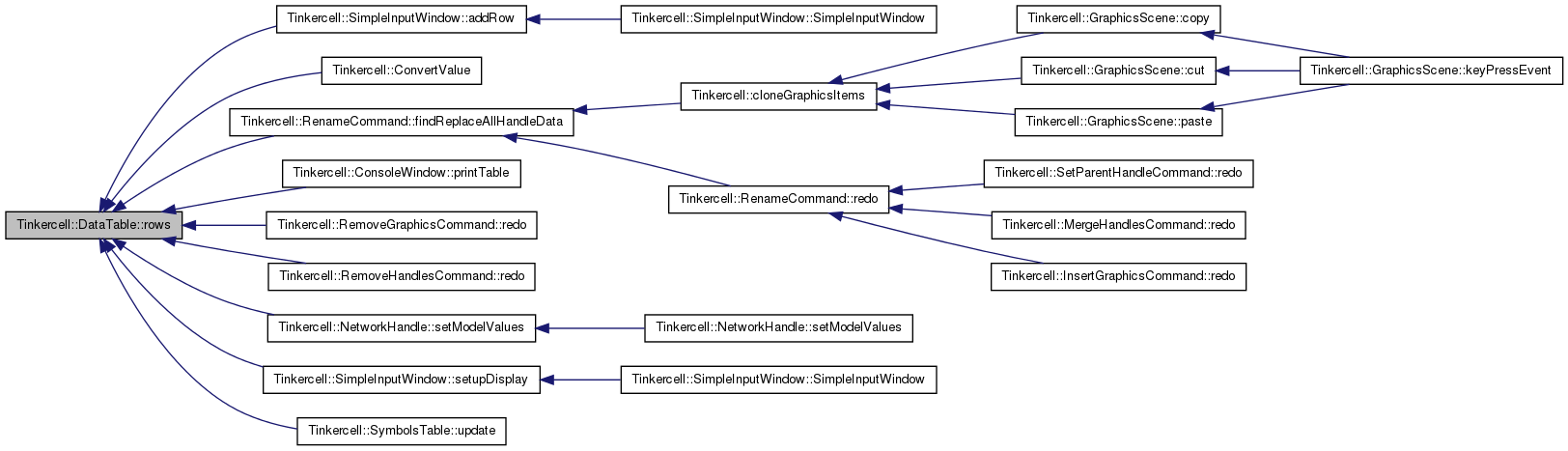

Here is the caller graph for this function:

template<typename T>

virtual bool Tinkercell::DataTable< T >::setColumnName	(	int	i,
		const QString &	name
	)		[virtual]

get the ith column name reference. can be used to change the column name

Parameters:

int	col number
QString	name

Returns:

bool if the name already exists, returns false

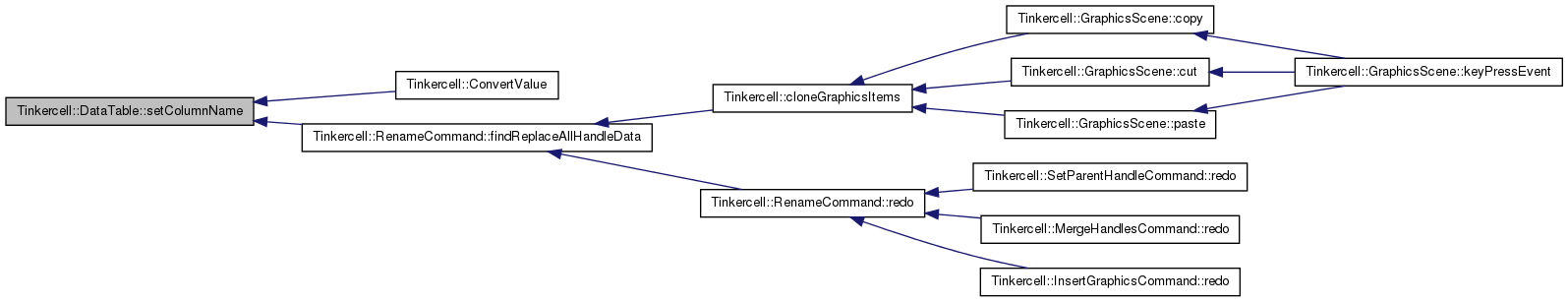

Here is the caller graph for this function:

template<typename T>

virtual void Tinkercell::DataTable< T >::setColumnNames

(

const QStringList &

names

)

[virtual]

set all the column names.

Parameters:

QStringList

vector of strings

Returns:

void

Here is the caller graph for this function:

template<typename T>

virtual bool Tinkercell::DataTable< T >::setRowName	(	int	i,
		const QString &	name
	)		[virtual]

get the ith row name. cannot be used to change the row name

Parameters:

int	row number
QString	name

Returns:

bool if the name already exists, returns false

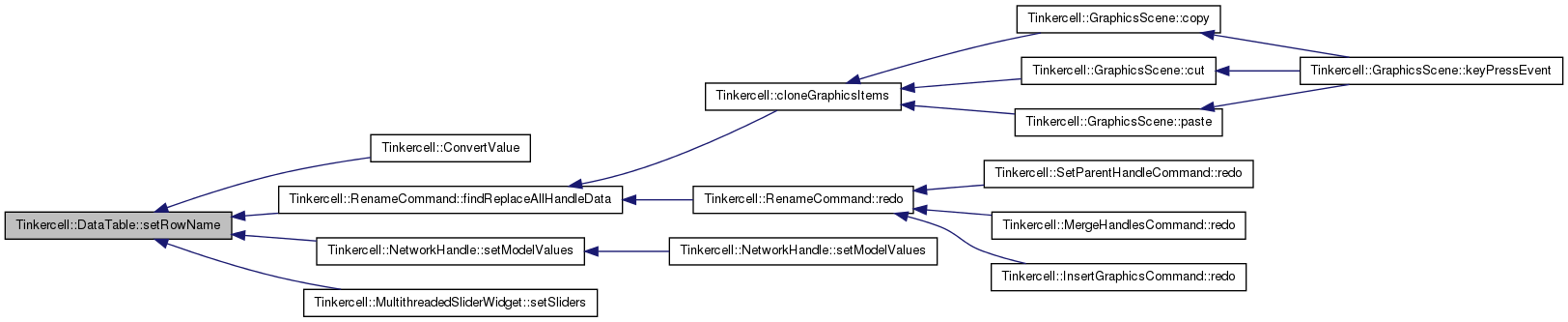

Here is the caller graph for this function:

template<typename T>

virtual void Tinkercell::DataTable< T >::setRowNames

(

const QStringList &

names

)

[virtual]

set all the row names.

Parameters:

QStringList

vector of strings

Returns:

void

template<typename T>

virtual void Tinkercell::DataTable< T >::swapColumns	(	int	j1,
		int	j2
	)		[virtual]

swap two columns. Nothing will happen if the given numbers are outside the table

Parameters:

int	first column number
int	second column number

Returns:

void

template<typename T>

virtual void Tinkercell::DataTable< T >::swapColumns	(	const QString &	s1,
		const QString &	s2
	)		[virtual]

swap two columns using their name. Nothing will happen if the given numbers are outside the table

Parameters:

int	first column name
int	second column name

Returns:

void

template<typename T>

virtual void Tinkercell::DataTable< T >::swapRows	(	int	i1,
		int	i2
	)		[virtual]

swap two rows. Nothing will happen if the given numbers are outside the table

Parameters:

int	first row number
int	second row number

Returns:

void

template<typename T>

virtual void Tinkercell::DataTable< T >::swapRows	(	const QString &	s1,
		const QString &	s2
	)		[virtual]

swap two rows using their name. Nothing will happen if the given numbers are outside the table

Parameters:

int	first row name
int	second row name

Returns:

void

template<typename T>

virtual DataTable<T> Tinkercell::DataTable< T >::transpose

(

)

const [virtual]

get transpose of the table. complexity = n*m (use sparingly)

Returns:

DataTable<T> new data table

template<typename T>

virtual T& Tinkercell::DataTable< T >::value	(	const QString &	r,
		int	j = 0
	)		[virtual]

get the value using row name. can also be used to set the value. Fast lookup using hashtables.

Parameters:

QString	row name
int	column number (defaults to 0)

Returns:

T reference to value at given row and column. returns value at 0 if row and column are not in the table

template<typename T>

virtual T& Tinkercell::DataTable< T >::value	(	int	i,
		int	j = 0
	)		[virtual]

get the value at the ith row and jth column. can also be used to set the value

Parameters:

int	row number
int	column number (defaults to 0)

Returns:

T reference to value at ith row and jth column. returns value at 0 if i or j are not inside the table

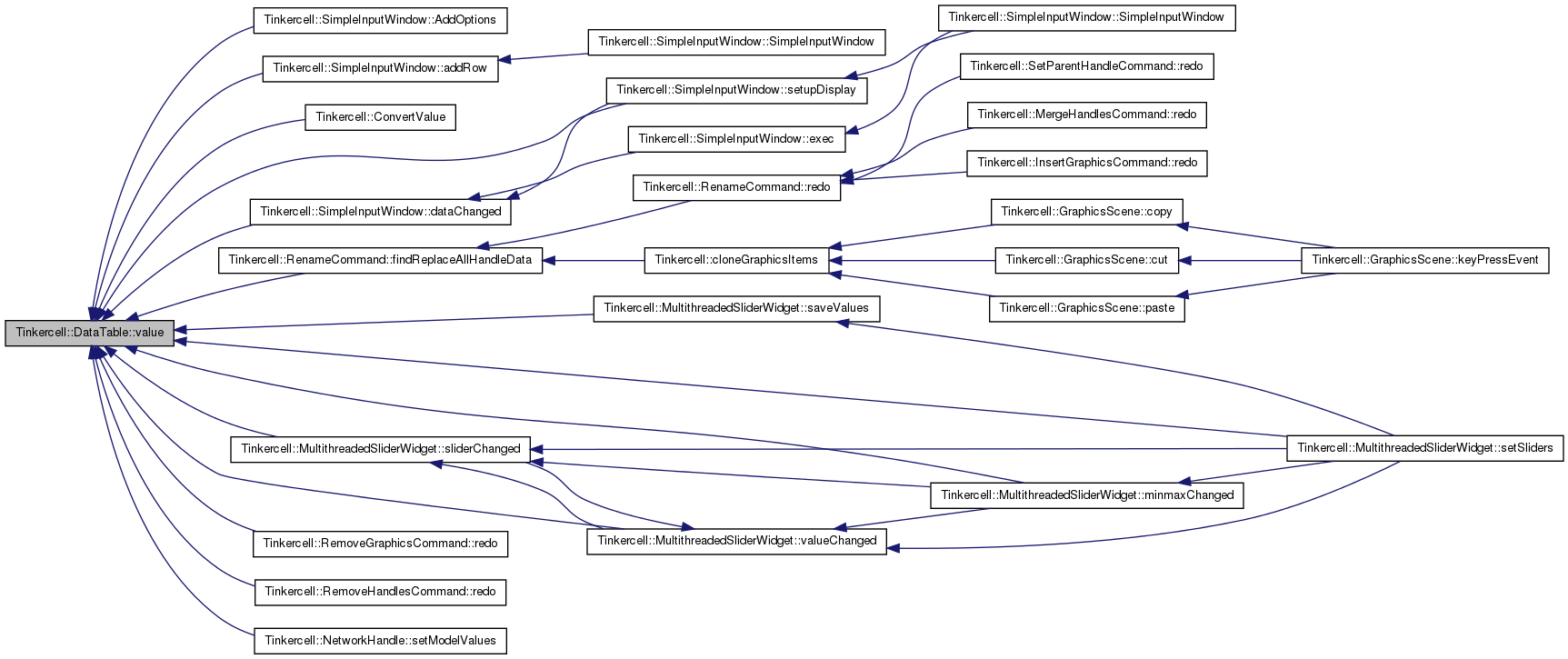

Here is the caller graph for this function:

template<typename T>

virtual T& Tinkercell::DataTable< T >::value	(	const QString &	r,
		const QString &	c
	)		[virtual]

get the value using row and column names. can also be used to set the value. Fast lookup using hashtables.

Parameters:

QString	row name
QString	column name

Returns:

T reference to value at given row and column. returns value at 0 if row and column are not in the table

template<typename T>

virtual T& Tinkercell::DataTable< T >::value	(	int	i,
		const QString &	c
	)		[virtual]

get the value using column name. can also be used to set the value. Fast lookup using hashtables.

Parameters:

int	row number
QString	column name

Returns:

T reference to value at given row and column. returns value at 0 if row and column are not in the table

---

Member Data Documentation

template<typename T>

QHash<QString,int> Tinkercell::DataTable< T >::colHash [protected]

hash for quick lookup of row and columns by name

Definition at line 51 of file DataTable.h.

template<typename T>

QVector<QString> Tinkercell::DataTable< T >::colHeaders [protected]

the column and row names

Definition at line 49 of file DataTable.h.

template<typename T>

QVector<T> Tinkercell::DataTable< T >::dataMatrix [protected]

the values in the table

Definition at line 47 of file DataTable.h.

template<typename T>

QString Tinkercell::DataTable< T >::desc [protected]

a description of this table (optional)

Definition at line 53 of file DataTable.h.

template<typename T>

QHash<QString,int> Tinkercell::DataTable< T >::rowHash [protected]

Definition at line 51 of file DataTable.h.

template<typename T>

QVector<QString> Tinkercell::DataTable< T >::rowHeaders [protected]

Definition at line 49 of file DataTable.h.

---

The documentation for this class was generated from the following file:

• DataTable.h
