Used to create an input window that can receive user inputs for C plugins. More...

#include <AbstractInputWindow.h>

Inheritance diagram for Tinkercell::SimpleInputWindow:

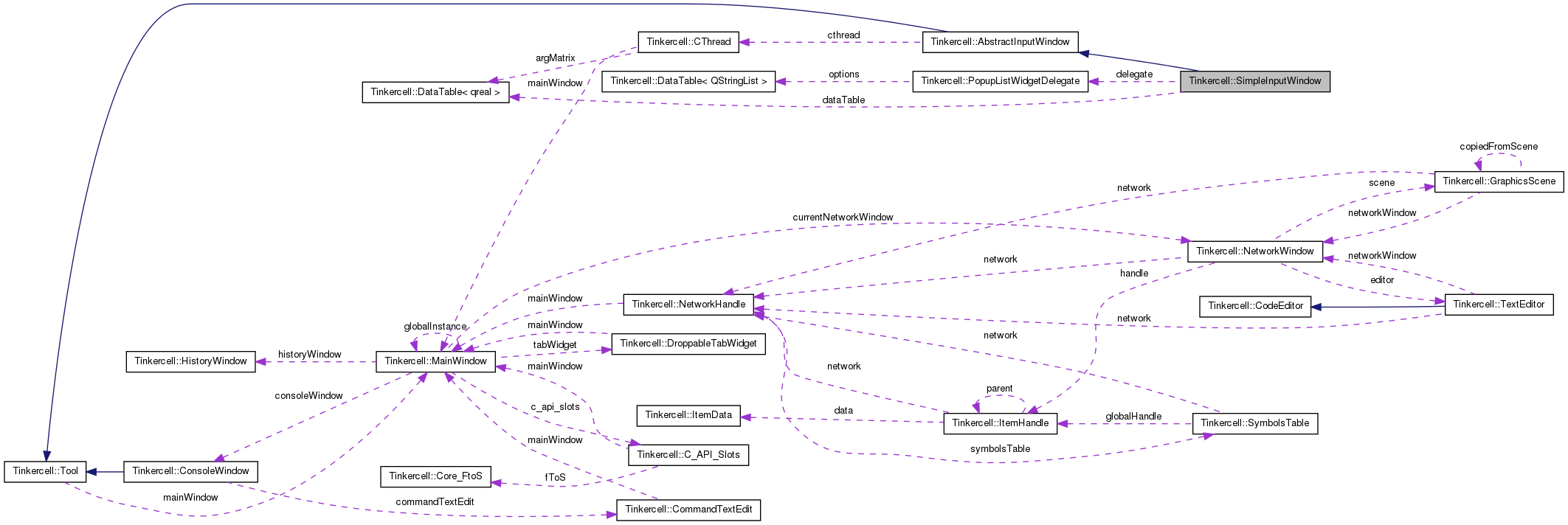

Collaboration diagram for Tinkercell::SimpleInputWindow:

Public Slots
virtual void	exec ()
	Executes the CThread.
Static Public Member Functions
static SimpleInputWindow *	CreateWindow (MainWindow *main, const QString &title, const QString &libraryFile, const QString &funcName, const DataTable< qreal > &)
	Create a simple input window to run a CThread. The window can be used to fill in an input matrix.
static SimpleInputWindow *	CreateWindow (CThread cthread, const QString &title, void(f)(tc_matrix), const DataTable< qreal > &)
	creates a docking window in Tinkercell's mainwindow that can receive inputs from user and run a function in a separate thread
static SimpleInputWindow *	CreateWindow (MainWindow *main, const QString &title, const QString &funcName, const DataTable< qreal > &)
	Create a simple input window to run a script function. When the play button is pressed, this window will execute a command in the command window. The command will be f(arg1,arg2...), where f is the function name and arg1,arg2... are the user provided arguments in the input window.
static void	AddOptions (const QString &title, int i, int j, const QStringList &options)
	add a list of options (combo box) to an existing input window
static void	AddOptions (SimpleInputWindow *, int i, int j, const QStringList &options)
	add a list of options (combo box) to an existing input window
Protected Slots
virtual void	dataChanged (int, int)
	updates the input matrix when user changes the table
virtual void	addRow ()
	add a row to the input matrix
virtual void	removeRow ()
	remove a row from the input matrix
virtual void	comboBoxChanged (int)
	updates the input matrix when user changes the combo boxes
Protected Member Functions
	SimpleInputWindow (MainWindow *main, const QString &title, const QString &dllName, const QString &funcName, const DataTable< qreal > &)
	constructor that creates a docking window in Tinkercell's mainwindow that can receive inputs from user and run a function in a separate thread
	SimpleInputWindow (CThread thread, const QString &title, void(f)(tc_matrix), const DataTable< qreal > &)
	constructor that creates a docking window in Tinkercell's mainwindow that can receive inputs from user and run a function in a separate thread
	SimpleInputWindow (MainWindow *main, const QString &title, const DataTable< qreal > &)
	constructor that creates a docking window in Tinkercell's mainwindow that can receive inputs from user and run a function in a separate thread
	SimpleInputWindow ()
	constructor -- does nothing
	SimpleInputWindow (const SimpleInputWindow &)
	copy constructor
virtual void	setupDisplay (const DataTable< qreal > &)
	reinitialize the contents on the input window
void	leaveEvent (QEvent *event)
	make the window transparent when mouse exits the window
void	enterEvent (QEvent *event)
	make the window transparent when mouse exits the window
Protected Attributes
DataTable< qreal >	dataTable
	the input matix
QTableWidget	tableWidget
	the table displaying the input matrix
QList< QComboBox * >	comboBoxes
	combo boxes used in input window
PopupListWidgetDelegate	delegate
	the item delegate that is used to change values in the input window
QString	scriptCommand
	command that will be run when the play button is pressed (might be empty if a C or C++ function is the target function)
Static Protected Attributes
static QHash< QString, SimpleInputWindow * >	inputWindows
	the set of all simple input windows

Detailed Description

Used to create an input window that can receive user inputs for C plugins.

Definition at line 153 of file AbstractInputWindow.h.

Constructor & Destructor Documentation

Tinkercell::SimpleInputWindow::SimpleInputWindow	(	MainWindow *	main,
		const QString &	title,
		const QString &	dllName,
		const QString &	funcName,
		const DataTable< qreal > &	data
	)		`[protected]`

constructor that creates a docking window in Tinkercell's mainwindow that can receive inputs from user and run a function in a separate thread

Parameters:

MainWindow
QString	title
QString	dynamic library file
QString	function to run inside library
QDataTable<qreal>	input table and its default values

Definition at line 126 of file AbstractInputWindow.cpp.

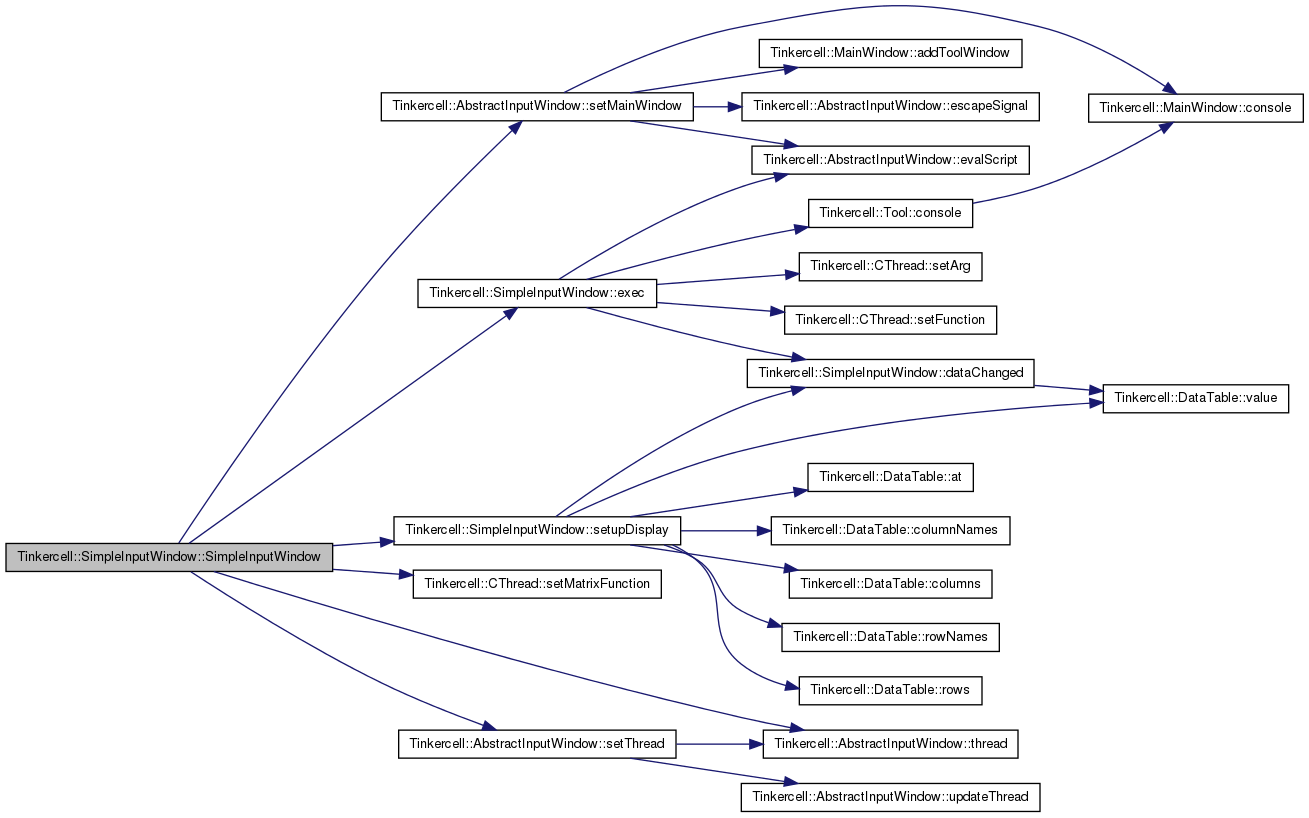

Here is the call graph for this function:

Tinkercell::SimpleInputWindow::SimpleInputWindow	(	CThread *	thread,
		const QString &	title,
		void(*)(tc_matrix)	f,
		const DataTable< qreal > &	data
	)		`[protected]`

constructor that creates a docking window in Tinkercell's mainwindow that can receive inputs from user and run a function in a separate thread

Parameters:

CThread	* existing thread with the library containing the function
QString	title
inputtc_matrixFunction*	function that is triggered by the run button in the input window
QDataTable<qreal>	input table and its default values

Definition at line 226 of file AbstractInputWindow.cpp.

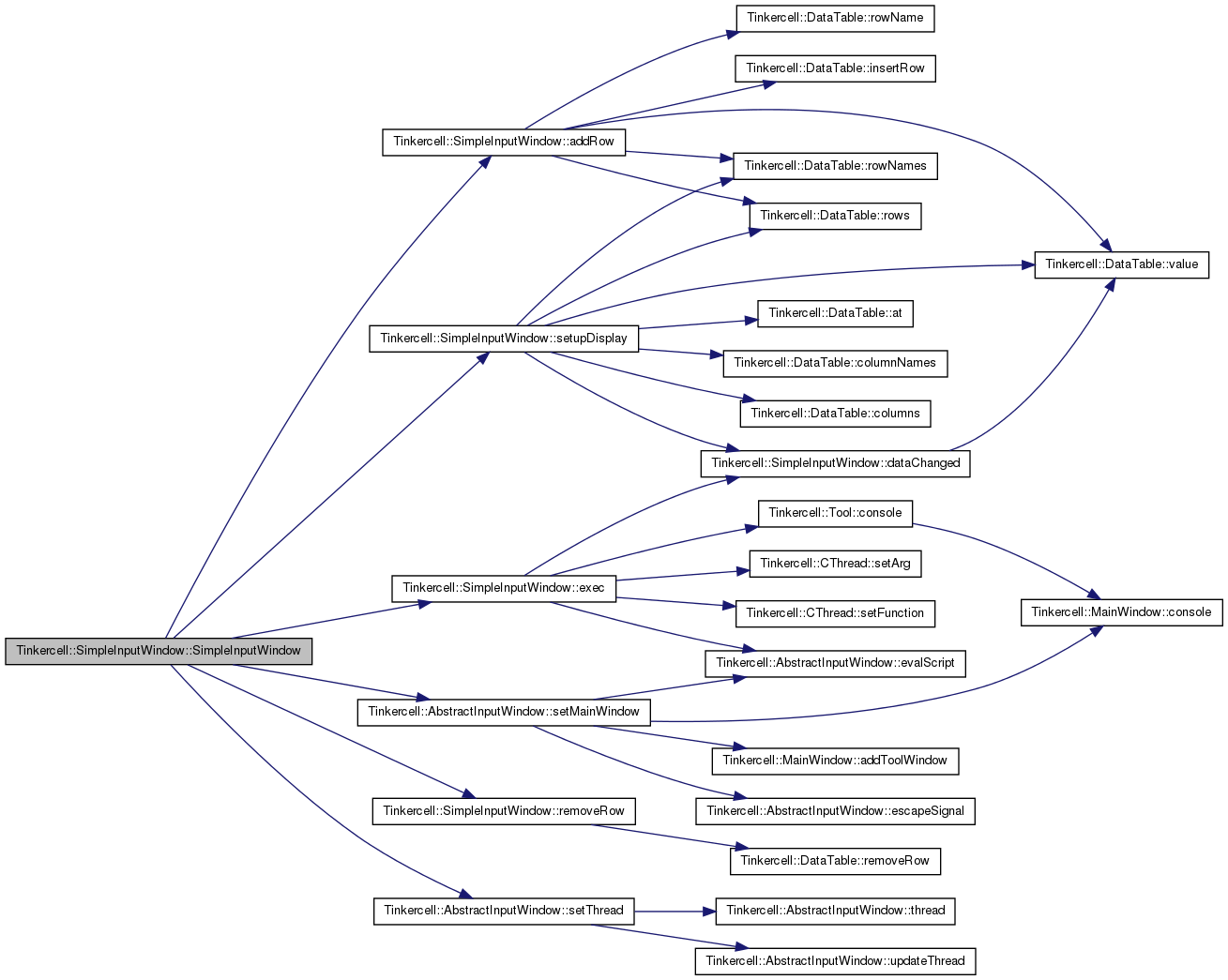

Here is the call graph for this function:

Tinkercell::SimpleInputWindow::SimpleInputWindow	(	MainWindow *	main,
		const QString &	title,
		const DataTable< qreal > &	data
	)		`[protected]`

constructor that creates a docking window in Tinkercell's mainwindow that can receive inputs from user and run a function in a separate thread

Parameters:

QString	title
QDataTable<qreal>	input table and its default values

Definition at line 197 of file AbstractInputWindow.cpp.

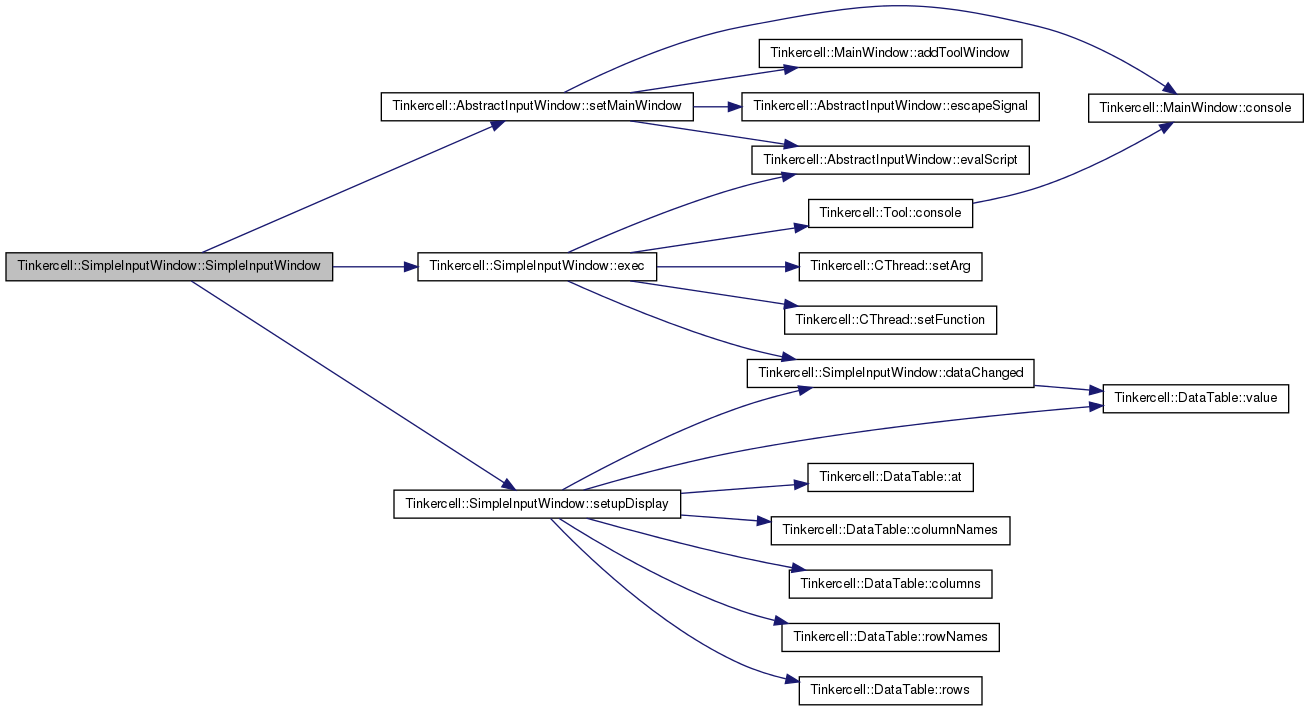

Here is the call graph for this function:

Tinkercell::SimpleInputWindow::SimpleInputWindow ( ) [protected]

constructor -- does nothing

Definition at line 296 of file AbstractInputWindow.cpp.

Here is the caller graph for this function:

Tinkercell::SimpleInputWindow::SimpleInputWindow ( const SimpleInputWindow & ) [protected]

copy constructor

Definition at line 298 of file AbstractInputWindow.cpp.

Member Function Documentation

void Tinkercell::SimpleInputWindow::AddOptions	(	const QString &	title,
		int	i,
		int	j,
		const QStringList &	options
	)		`[static]`

add a list of options (combo box) to an existing input window

Parameters:

QString	title
int	row
int	column
QStringList	options

Definition at line 269 of file AbstractInputWindow.cpp.

void Tinkercell::SimpleInputWindow::AddOptions	(	SimpleInputWindow *	win,
		int	i,
		int	j,
		const QStringList &	options
	)		`[static]`

add a list of options (combo box) to an existing input window

Parameters:

SimpleInputWindow*
int	row
int	column
QStringList	options

Definition at line 278 of file AbstractInputWindow.cpp.

Here is the call graph for this function:

void Tinkercell::SimpleInputWindow::addRow ( ) [protected, virtual, slot]

add a row to the input matrix

Definition at line 388 of file AbstractInputWindow.cpp.

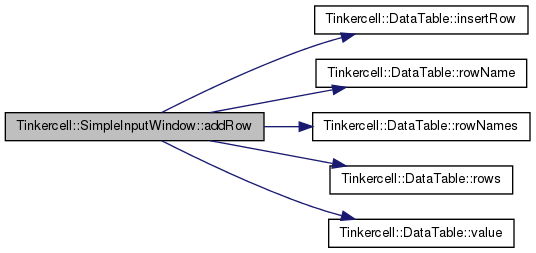

Here is the call graph for this function:

Here is the caller graph for this function:

void Tinkercell::SimpleInputWindow::comboBoxChanged ( int ) [protected, virtual, slot]

updates the input matrix when user changes the combo boxes

Definition at line 499 of file AbstractInputWindow.cpp.

SimpleInputWindow * Tinkercell::SimpleInputWindow::CreateWindow	(	CThread *	cthread,
		const QString &	title,
		void(*)(tc_matrix)	f,
		const DataTable< qreal > &	data
	)		`[static]`

creates a docking window in Tinkercell's mainwindow that can receive inputs from user and run a function in a separate thread

Parameters:

CThread	* existing thread with the library containing the function
QString	title
itc_matrixFunction*	function that is triggered by the run button in the input window
QDataTable<qreal>	input table and its default values

Returns:: SimpleInputWindow* pointer to the new or existing window

Definition at line 329 of file AbstractInputWindow.cpp.

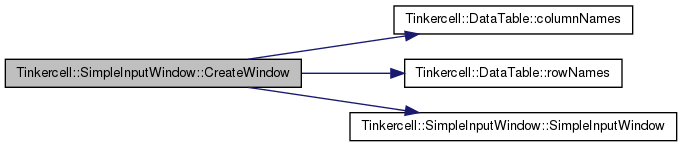

Here is the call graph for this function:

SimpleInputWindow * Tinkercell::SimpleInputWindow::CreateWindow	(	MainWindow *	main,
		const QString &	title,
		const QString &	libraryFile,
		const QString &	funcName,
		const DataTable< qreal > &	data
	)		`[static]`

Create a simple input window to run a CThread. The window can be used to fill in an input matrix.

Parameters:

MainWindow
QString	title
QString	dynamic library file (will first search if already loaded in MainWindow)
QString	function to run inside library
DataTable<double>	inputs

Returns:: SimpleInputWindow* pointer to the new or existing window

Definition at line 300 of file AbstractInputWindow.cpp.

Here is the call graph for this function:

SimpleInputWindow * Tinkercell::SimpleInputWindow::CreateWindow	(	MainWindow *	main,
		const QString &	title,
		const QString &	funcName,
		const DataTable< qreal > &	data
	)		`[static]`

Create a simple input window to run a script function. When the play button is pressed, this window will execute a command in the command window. The command will be f(arg1,arg2...), where f is the function name and arg1,arg2... are the user provided arguments in the input window.

Parameters:
