This class stores global variables such as project names, enables/disabled feature, etc. Use the following static bools to enable or disable features: ENABLE_HISTORY_WINDOW ENABLE_CONSOLE_WINDOW ENABLE_GRAPHING_TOOLS ENABLE_CODING_TOOLS ENABLE_ALIGNMENT_MENU ENABLE_COLOR_TOOLBAR ENABLE_ZOOM_TOOLBAR ENABLE_TEXT_TOOLBAR ENABLE_PYTHON ENABLE_RUBY ENABLE_OCTAVE ENABLE_LOADSAVE_TOOL. More...

#include <GlobalSettings.h>

Static Public Member Functions
static void	RegisterDataTypes ()
	register all the TinkerCell data structures with Qt
static QString	homeDir ()
	The TinkerCell user directory, which is User's Documents Folder/TinkerCell by default, but users may change this setting.
static QString	tempDir ()
	The TinkerCell user temporary directory, which is <SYSTEM temp="" folder>="">/TinkerCell.
Static Public Attributes
static bool	ENABLE_HISTORY_WINDOW
	enable history window -- defaults to true
static bool	ENABLE_CONSOLE_WINDOW
	enable console window -- defaults to true
static bool	ENABLE_GRAPHING_TOOLS
	enable plot2d, plot3d, and gnuplot -- defaults to false
static bool	ENABLE_CODING_TOOLS
	enable coding window and interpreters -- defaults to false
static bool	ENABLE_ALIGNMENT_MENU
	enable alignment menu -- defaults to true
static bool	ENABLE_COLOR_TOOLBAR
	enable color menu -- defaults to true
static bool	ENABLE_ZOOM_TOOLBAR
	enable zoom menu -- defaults to true
static bool	ENABLE_TEXT_TOOLBAR
	enable text options -- defaults to true
static bool	ENABLE_PYTHON
	enable python interpreter -- defaults to false
static bool	ENABLE_OCTAVE
	enable octave interpreter -- defaults to false
static bool	ENABLE_RUBY
	enable octave interpreter -- defaults to false
static bool	ENABLE_LOADSAVE_TOOL
	enable loading and saving -- defaults to true
static QString	PROJECTWEBSITE
	the project website
static QString	ORGANIZATIONNAME
	the project organization name
static QString	PROJECTNAME
	the project name
static QString	PROJECTICON
	the project icon file
static QString	CPP_ENTRY_FUNCTION
	the default function that is loaded in C++ plugins
static QString	C_ENTRY_FUNCTION
	the default function that is loaded in C plugins
static QString	PROJECT_VERSION
	the default project version
static QString	PROGRAM_MODE
	an optional string that can be used to change the mode of the application. The meaning of this variable depends on the purpose of the application. Empty by default.
static QStringList	OPEN_FILE_EXTENSIONS
	the default file extensions that can be opened
static QStringList	SAVE_FILE_EXTENSIONS
	the default file extensions that can be saved
static bool	DO_SVN_UPDATE
	if there is an svn service that stores latest plug-ins, then set DO_SVN_UPDATE and CODING_TOOLS to true
static QString	PLUGINS_SVN_URL
	if there is an svn service that stores latest plug-ins, place that url here

Detailed Description

This class stores global variables such as project names, enables/disabled feature, etc. Use the following static bools to enable or disable features: ENABLE_HISTORY_WINDOW ENABLE_CONSOLE_WINDOW ENABLE_GRAPHING_TOOLS ENABLE_CODING_TOOLS ENABLE_ALIGNMENT_MENU ENABLE_COLOR_TOOLBAR ENABLE_ZOOM_TOOLBAR ENABLE_TEXT_TOOLBAR ENABLE_PYTHON ENABLE_RUBY ENABLE_OCTAVE ENABLE_LOADSAVE_TOOL.

Definition at line 38 of file GlobalSettings.h.

Member Function Documentation

static QString Tinkercell::GlobalSettings::homeDir ( ) [static]

The TinkerCell user directory, which is User's Documents Folder/TinkerCell by default, but users may change this setting.

Here is the caller graph for this function:

static void Tinkercell::GlobalSettings::RegisterDataTypes ( ) [static]

register all the TinkerCell data structures with Qt

static QString Tinkercell::GlobalSettings::tempDir ( ) [static]

The TinkerCell user temporary directory, which is <SYSTEM temp="" folder>="">/TinkerCell.

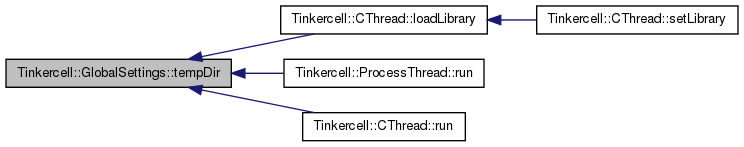

Here is the caller graph for this function:

Member Data Documentation

QString Tinkercell::GlobalSettings::C_ENTRY_FUNCTION [static]

the default function that is loaded in C plugins

Definition at line 93 of file GlobalSettings.h.

QString Tinkercell::GlobalSettings::CPP_ENTRY_FUNCTION [static]

the default function that is loaded in C++ plugins

Definition at line 90 of file GlobalSettings.h.

bool Tinkercell::GlobalSettings::DO_SVN_UPDATE [static]

if there is an svn service that stores latest plug-ins, then set DO_SVN_UPDATE and CODING_TOOLS to true

Definition at line 109 of file GlobalSettings.h.

bool Tinkercell::GlobalSettings::ENABLE_ALIGNMENT_MENU [static]

enable alignment menu -- defaults to true

Definition at line 54 of file GlobalSettings.h.

bool Tinkercell::GlobalSettings::ENABLE_CODING_TOOLS [static]

enable coding window and interpreters -- defaults to false

Definition at line 51 of file GlobalSettings.h.

bool Tinkercell::GlobalSettings::ENABLE_COLOR_TOOLBAR [static]

enable color menu -- defaults to true

Definition at line 57 of file GlobalSettings.h.

bool Tinkercell::GlobalSettings::ENABLE_CONSOLE_WINDOW [static]

enable console window -- defaults to true

Definition at line 45 of file GlobalSettings.h.

bool Tinkercell::GlobalSettings::ENABLE_GRAPHING_TOOLS [static]

enable plot2d, plot3d, and gnuplot -- defaults to false

Definition at line 48 of file GlobalSettings.h.

bool Tinkercell::GlobalSettings::ENABLE_HISTORY_WINDOW [static]

enable history window -- defaults to true

Definition at line 42 of file GlobalSettings.h.

bool Tinkercell::GlobalSettings::ENABLE_LOADSAVE_TOOL [static]

enable loading and saving -- defaults to true

Definition at line 75 of file GlobalSettings.h.

bool Tinkercell::GlobalSettings::ENABLE_OCTAVE [static]

enable octave interpreter -- defaults to false

Definition at line 69 of file GlobalSettings.h.

bool Tinkercell::GlobalSettings::ENABLE_PYTHON [static]

enable python interpreter -- defaults to false

Definition at line 66 of file GlobalSettings.h.

bool Tinkercell::GlobalSettings::ENABLE_RUBY [static]

enable octave interpreter -- defaults to false

Definition at line 72 of file GlobalSettings.h.

bool Tinkercell::GlobalSettings::ENABLE_TEXT_TOOLBAR [static]

enable text options -- defaults to true

Definition at line 63 of file GlobalSettings.h.

bool Tinkercell::GlobalSettings::ENABLE_ZOOM_TOOLBAR [static]

enable zoom menu -- defaults to true

Definition at line 60 of file GlobalSettings.h.

QStringList Tinkercell::GlobalSettings::OPEN_FILE_EXTENSIONS [static]

the default file extensions that can be opened

Definition at line 103 of file GlobalSettings.h.

QString Tinkercell::GlobalSettings::ORGANIZATIONNAME [static]

the project organization name

Definition at line 81 of file GlobalSettings.h.

QString Tinkercell::GlobalSettings::PLUGINS_SVN_URL [static]

if there is an svn service that stores latest plug-ins, place that url here

Definition at line 112 of file GlobalSettings.h.

QString Tinkercell::GlobalSettings::PROGRAM_MODE [static]

an optional string that can be used to change the mode of the application. The meaning of this variable depends on the purpose of the application. Empty by default.

Definition at line 100 of file GlobalSettings.h.

QString Tinkercell::GlobalSettings::PROJECT_VERSION [static]

the default project version

Definition at line 96 of file GlobalSettings.h.

QString Tinkercell::GlobalSettings::PROJECTICON [static]

the project icon file

Definition at line 87 of file GlobalSettings.h.

QString Tinkercell::GlobalSettings::PROJECTNAME [static]

the project name

Definition at line 84 of file GlobalSettings.h.

QString Tinkercell::GlobalSettings::PROJECTWEBSITE [static]

the project website
