This class defines the family of a node or connection. The class contains the icon for the family, family name, and minimal data that defines the family. Each family has a name, which is internally converted to an integer (ID) The ID is used to perform isA checks, thus avoiding repeated string matches. More...

#include <ItemFamily.h>

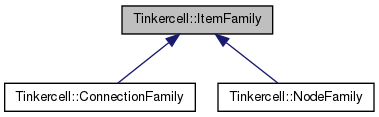

Inheritance diagram for Tinkercell::ItemFamily:

[legend]

Collaboration diagram for Tinkercell::ItemFamily:

[legend]

List of all members.

Public Member Functions
virtual QString	name () const
	name of this family
virtual void	setName (const QString &)
	set name of this family
virtual bool	isA (const QString &) const
	indicates whether or not the given string is the name of this family or any of its parent families
virtual bool	isA (const ItemFamily *) const
	indicates whether or not the given family is the name of this family or any of its parent families
virtual bool	isParentOf (const QString &) const
	indicates whether or not the given string is the name of this family or any of its child families
virtual bool	isParentOf (const ItemFamily *) const
	indicates whether or not the given family is the name of this family or any of its child families
virtual ItemFamily *	root () const
	get the top-most family
virtual bool	isRelatedTo (const ItemFamily *) const
	checks if the given family shares its root family with this family
virtual ItemFamily *	parent () const
	get the parent for this family. If there are more than one parents, returns the one with the highest depth
virtual int	depth () const
	counts the number of parents that have to be traversed in order to reach the root handle. If this handle has no parents, the values returned is 0. If its parent has no parent, then the value is 1, and so on.
virtual QList< ItemFamily * >	parents () const
	get all the parents for this family.
virtual QList< ItemFamily * >	children () const
	get all the families that inherit directly from this family
virtual QList< ItemFamily * >	allChildren () const
	get all the families that inherit from this family. the list will be ordered in a breadth-first ordering
virtual	~ItemFamily ()
	destructor.
	ItemFamily (const QString &name=QString())
	constructor
Public Attributes
QString	description
	description of this family
QStringList	synonyms
	other names for this family
QStringList	restrictions
	restrictions that apply to this family
QList< Unit >	measurementUnitOptions
	the possible options for measurement name and unit for items in this family
Unit	measurementUnit
	the measurement name and unit for items in this family
QHash< QString, qreal >	numericalAttributes
	the list of numerical attributes that are common to all members of this family
QHash< QString, QString >	textAttributes
	the list of string attributes that are common to all members of this family
QList< QGraphicsItem * >	graphicsItems
	the default set of graphics items used to represent items of this family
QPixmap	pixmap
	the icon representing this family
Protected Member Functions
virtual bool	isA (int ID) const
	indicates whether or not the given family ID is the name of this family or any of its parent families
Protected Attributes
int	type
	used for casting between different sub-classes
QString	_name
	name of this family
int	ID
	the ID for this family. It is used for quick equality checks (instead of using strings)
Static Protected Attributes
static QStringList	ALLNAMES
	all family names. This list's lenth is used to assign the next ID
static QList< const ItemFamily * >	ALLFAMILIES
	all families by index
static QHash< QString, int >	NAMETOID
	the hash stores names for each ID
Friends
class	NodeFamily
class	ConnectionFamily

Detailed Description

This class defines the family of a node or connection. The class contains the icon for the family, family name, and minimal data that defines the family. Each family has a name, which is internally converted to an integer (ID) The ID is used to perform isA checks, thus avoiding repeated string matches.

Definition at line 69 of file ItemFamily.h.

Constructor & Destructor Documentation

Tinkercell::ItemFamily::~ItemFamily ( ) [virtual]

destructor.

Definition at line 50 of file ItemFamily.cpp.

Tinkercell::ItemFamily::ItemFamily ( const QString & name = QString() )

constructor

Parameters:

QString name

Definition at line 45 of file ItemFamily.cpp.

Here is the call graph for this function:

Member Function Documentation

QList< ItemFamily * > Tinkercell::ItemFamily::allChildren ( ) const [virtual]

get all the families that inherit from this family. the list will be ordered in a breadth-first ordering

Returns:: QList<ItemFamily*>

Definition at line 164 of file ItemFamily.cpp.

Here is the call graph for this function:

QList< ItemFamily * > Tinkercell::ItemFamily::children ( ) const [virtual]

get all the families that inherit directly from this family

Reimplemented in Tinkercell::NodeFamily, and Tinkercell::ConnectionFamily.

Definition at line 66 of file ItemFamily.cpp.

Here is the caller graph for this function:

int Tinkercell::ItemFamily::depth ( ) const [virtual]

counts the number of parents that have to be traversed in order to reach the root handle. If this handle has no parents, the values returned is 0. If its parent has no parent, then the value is 1, and so on.

Returns:: int

Definition at line 68 of file ItemFamily.cpp.

Here is the call graph for this function:

bool Tinkercell::ItemFamily::isA ( const QString & name ) const [virtual]

indicates whether or not the given string is the name of this family or any of its parent families

Reimplemented in Tinkercell::NodeFamily, and Tinkercell::ConnectionFamily.

Definition at line 103 of file ItemFamily.cpp.

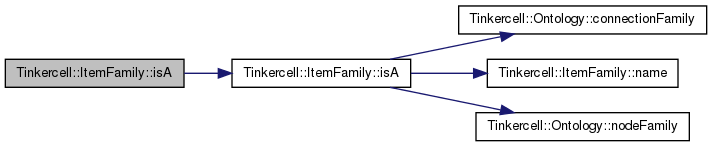

Here is the call graph for this function:

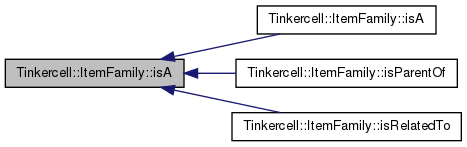

Here is the caller graph for this function:

bool Tinkercell::ItemFamily::isA ( const ItemFamily * family ) const [virtual]

indicates whether or not the given family is the name of this family or any of its parent families

Reimplemented in Tinkercell::NodeFamily, and Tinkercell::ConnectionFamily.

Definition at line 125 of file ItemFamily.cpp.

Here is the call graph for this function:

bool Tinkercell::ItemFamily::isA ( int ID ) const [protected, virtual]

indicates whether or not the given family ID is the name of this family or any of its parent families

Reimplemented in Tinkercell::NodeFamily, and Tinkercell::ConnectionFamily.

Definition at line 98 of file ItemFamily.cpp.

bool Tinkercell::ItemFamily::isParentOf ( const QString & name ) const [virtual]

indicates whether or not the given string is the name of this family or any of its child families

Definition at line 131 of file ItemFamily.cpp.

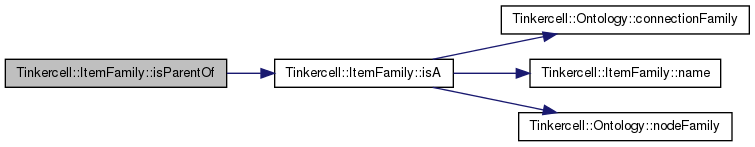

Here is the call graph for this function:

bool Tinkercell::ItemFamily::isParentOf ( const ItemFamily * family ) const [virtual]

indicates whether or not the given family is the name of this family or any of its child families

Definition at line 144 of file ItemFamily.cpp.

Here is the call graph for this function:

bool Tinkercell::ItemFamily::isRelatedTo ( const ItemFamily * family ) const [virtual]

checks if the given family shares its root family with this family

Definition at line 158 of file ItemFamily.cpp.

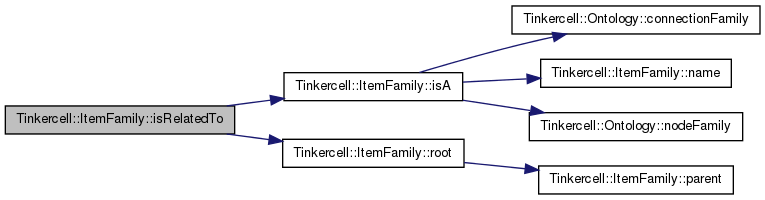

Here is the call graph for this function:

QString Tinkercell::ItemFamily::name ( ) const [virtual]

name of this family

Definition at line 57 of file ItemFamily.cpp.

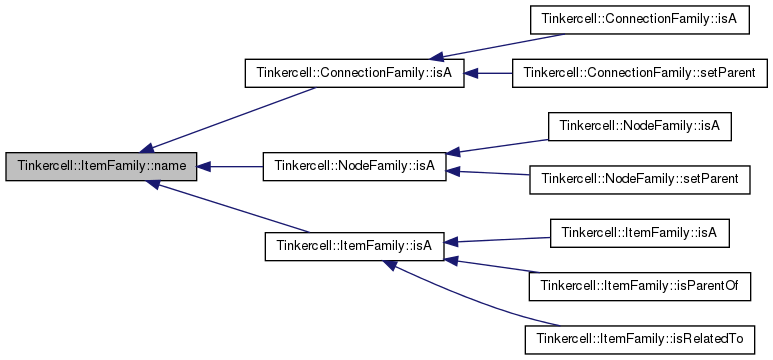

Here is the caller graph for this function:

ItemFamily * Tinkercell::ItemFamily::parent ( ) const [virtual]

get the parent for this family. If there are more than one parents, returns the one with the highest depth

See also:: depth

Reimplemented in Tinkercell::NodeFamily, and Tinkercell::ConnectionFamily.

Definition at line 62 of file ItemFamily.cpp.

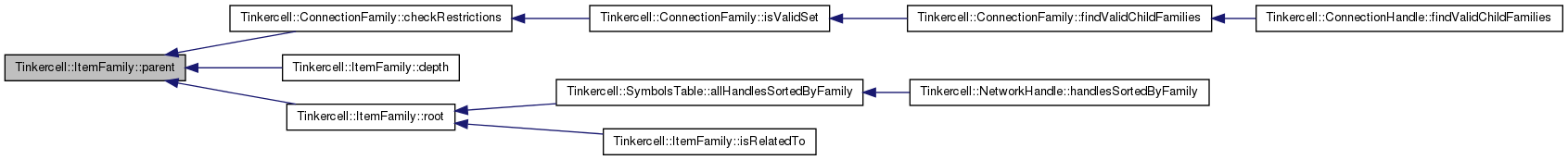

Here is the caller graph for this function:

QList< ItemFamily * > Tinkercell::ItemFamily::parents ( ) const [virtual]

get all the parents for this family.

Reimplemented in Tinkercell::NodeFamily, and Tinkercell::ConnectionFamily.

Definition at line 64 of file ItemFamily.cpp.

ItemFamily * Tinkercell::ItemFamily::root ( ) const [virtual]

get the top-most family

Definition at line 150 of file ItemFamily.cpp.

Here is the call graph for this function:

Here is the caller graph for this function:

void Tinkercell::ItemFamily::setName ( const QString & s ) [virtual]

set name of this family

Definition at line 80 of file ItemFamily.cpp.

Here is the caller graph for this function:

Friends And Related Function Documentation

friend class ConnectionFamily [friend]

Reimplemented in Tinkercell::NodeFamily.

Definition at line 142 of file ItemFamily.h.

friend class NodeFamily [friend]

Definition at line 141 of file ItemFamily.h.

Member Data Documentation

QString Tinkercell::ItemFamily::_name [protected]

name of this family

Definition at line 131 of file ItemFamily.h.

QList< const ItemFamily * > Tinkercell::ItemFamily::ALLFAMILIES [static, protected]

all families by index

Definition at line 137 of file ItemFamily.h.

QStringList Tinkercell::ItemFamily::ALLNAMES [static, protected]

all family names. This list's lenth is used to assign the next ID

Definition at line 135 of file ItemFamily.h.

QString Tinkercell::ItemFamily::description

description of this family

Definition at line 73 of file ItemFamily.h.

QList<QGraphicsItem*> Tinkercell::ItemFamily::graphicsItems

the default set of graphics items used to represent items of this family

Definition at line 87 of file ItemFamily.h.

int Tinkercell::ItemFamily::ID [protected]

the ID for this family. It is used for quick equality checks (instead of using strings)

Definition at line 133 of file ItemFamily.h.

Unit Tinkercell::ItemFamily::measurementUnit

the measurement name and unit for items in this family

Definition at line 81 of file ItemFamily.h.

QList<Unit> Tinkercell::ItemFamily::measurementUnitOptions

the possible options for measurement name and unit for items in this family

Definition at line 79 of file ItemFamily.h.

QHash< QString, int > Tinkercell::ItemFamily::NAMETOID [static, protected]

the hash stores names for each ID

Definition at line 139 of file ItemFamily.h.

QHash<QString,qreal> Tinkercell::ItemFamily::numericalAttributes

the list of numerical attributes that are common to all members of this family

Definition at line 83 of file ItemFamily.h.

QPixmap Tinkercell::ItemFamily::pixmap

the icon representing this family

Definition at line 89 of file ItemFamily.h.

QStringList Tinkercell::ItemFamily::restrictions

restrictions that apply to this family

Definition at line 77 of file ItemFamily.h.

QStringList Tinkercell::ItemFamily::synonyms

other names for this family

Definition at line 75 of file ItemFamily.h.

QHash<QString,QString> Tinkercell::ItemFamily::textAttributes

the list of string attributes that are common to all members of this family

Definition at line 85 of file ItemFamily.h.

int Tinkercell::ItemFamily::type [protected]

used for casting between different sub-classes

Definition at line 127 of file ItemFamily.h.
