Tinkercell::NodeHandle Class Reference

The handles are used to bring together data and graphics items. Node Handle contains pointers to all the graphics items that belong to it, the tools that apply to this item, the data for this item, and the family that it belongs with. More...

#include <ItemHandle.h>

Inheritance diagram for Tinkercell::NodeHandle:

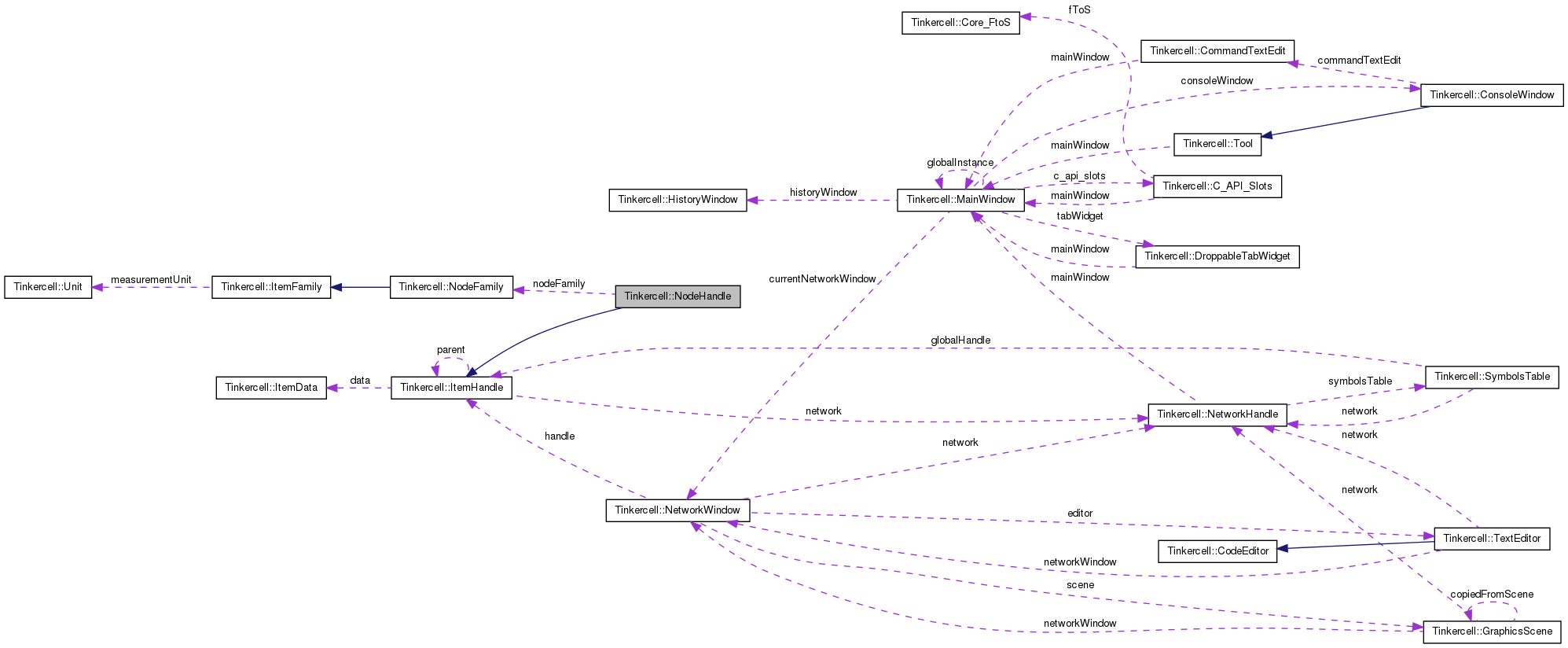

Collaboration diagram for Tinkercell::NodeHandle:

List of all members.

Public Member Functions
virtual QList< ConnectionHandle * >	connections () const
	funcion that returns all the connections from all the nodes in this handle
	NodeHandle (const QString &name=QString(), NodeFamily *nodeFamily=0)
	default constructor -- initialize everything
	NodeHandle (const NodeHandle &copy)
	copy constructor -- copies all the data (deep). graphic items are shallow copies
virtual NodeHandle &	operator= (const NodeHandle &)
	operator =
	NodeHandle (NodeFamily *nodeFamily, NodeGraphicsItem *item)
	constructor using initial family and graphics item
	NodeHandle (NodeFamily *nodeFamily, const QString &name=QString())
	constructor using initial family and name
virtual ItemHandle *	clone () const
	return a clone of this handle
virtual ItemFamily *	family () const
	get the node family for this handle
virtual void	setFamily (ItemFamily *, bool useCommand=true)
	set the node family for this handle
Static Public Member Functions
static NodeHandle *	cast (ItemHandle *)
	checks if the item handle is a node handle and casts it as a node item. Returns 0 if it is not a node item
static QList< NodeHandle * >	cast (const QList< ItemHandle * > &)
	checks if the item handles are node handles and casts then as node items. Returns QList<NodeHandle*>
Public Attributes
NodeFamily *	nodeFamily
	node family for this node handle
Static Public Attributes
static const int	TYPE = 1
	this number is used to identify when a handle is a node handle

---

Detailed Description

The handles are used to bring together data and graphics items. Node Handle contains pointers to all the graphics items that belong to it, the tools that apply to this item, the data for this item, and the family that it belongs with.

Definition at line 247 of file ItemHandle.h.

---

Constructor & Destructor Documentation

Tinkercell::NodeHandle::NodeHandle	(	const QString &	name = QString(),
		NodeFamily *	nodeFamily = 0
	)

default constructor -- initialize everything

Definition at line 629 of file ItemHandle.cpp.

Here is the call graph for this function:

Here is the caller graph for this function:

Tinkercell::NodeHandle::NodeHandle

(

const NodeHandle &

copy

)

copy constructor -- copies all the data (deep). graphic items are shallow copies

Definition at line 679 of file ItemHandle.cpp.

Tinkercell::NodeHandle::NodeHandle	(	NodeFamily *	nodeFamily,
		NodeGraphicsItem *	item
	)

constructor using initial family and graphics item

Parameters:

nodeFamily*	node family
NodeGraphicsItem*	graphics item

Definition at line 635 of file ItemHandle.cpp.

Here is the call graph for this function:

Tinkercell::NodeHandle::NodeHandle	(	NodeFamily *	nodeFamily,
		const QString &	name = QString()
	)

constructor using initial family and name

Parameters:

nodeFamily*	node family
QString	name

Definition at line 646 of file ItemHandle.cpp.

Here is the call graph for this function:

---

Member Function Documentation

NodeHandle * Tinkercell::NodeHandle::cast

(

ItemHandle *

item

)

[static]

checks if the item handle is a node handle and casts it as a node item. Returns 0 if it is not a node item

Parameters:

ItemHandle*

item

Definition at line 612 of file ItemHandle.cpp.

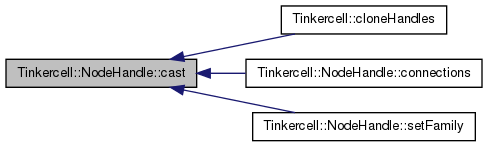

Here is the caller graph for this function:

QList< NodeHandle * > Tinkercell::NodeHandle::cast

(

const QList< ItemHandle * > &

items

)

[static]

checks if the item handles are node handles and casts then as node items. Returns QList<NodeHandle*>

Parameters:

Returns

QList<ItemHandle*> items

Definition at line 619 of file ItemHandle.cpp.

ItemHandle * Tinkercell::NodeHandle::clone

(

)

const [virtual]

return a clone of this handle

Returns:

ItemFamily* node handle as item handle

Reimplemented from Tinkercell::ItemHandle.

Definition at line 691 of file ItemHandle.cpp.

Here is the call graph for this function:

QList< ConnectionHandle * > Tinkercell::NodeHandle::connections

(

)

const [virtual]

funcion that returns all the connections from all the nodes in this handle

Returns:

QList<ConnectionHandle*> list of connection handles

Definition at line 696 of file ItemHandle.cpp.

Here is the call graph for this function:

ItemFamily * Tinkercell::NodeHandle::family

(

)

const [virtual]

get the node family for this handle

Returns:

ItemFamily* node family as item family

Reimplemented from Tinkercell::ItemHandle.

Definition at line 674 of file ItemHandle.cpp.

Here is the caller graph for this function:

NodeHandle & Tinkercell::NodeHandle::operator=

(

const NodeHandle &

copy

)

[virtual]

operator =

Definition at line 684 of file ItemHandle.cpp.

void Tinkercell::NodeHandle::setFamily	(	ItemFamily *	p,
		bool	useCommand = true
	)		[virtual]

set the node family for this handle

Parameters:

NodeFamily*

node family

Reimplemented from Tinkercell::ItemHandle.

Definition at line 652 of file ItemHandle.cpp.

Here is the call graph for this function:

---

Member Data Documentation

NodeFamily* Tinkercell::NodeHandle::nodeFamily

node family for this node handle

Definition at line 259 of file ItemHandle.h.

const int Tinkercell::NodeHandle::TYPE = 1 [static]

this number is used to identify when a handle is a node handle

Definition at line 253 of file ItemHandle.h.

---

The documentation for this class was generated from the following files:

• ItemHandle.h
• ItemHandle.cpp
