The handles are used to bring together data and graphics items. Connection Handle contains pointers to all the graphics items that belong to it, the tools that apply to this item, the data for this item, the family that it belongs with, and pointers to nodes connected (in and out) More...

#include <ItemHandle.h>

Inheritance diagram for Tinkercell::ConnectionHandle:

[legend]

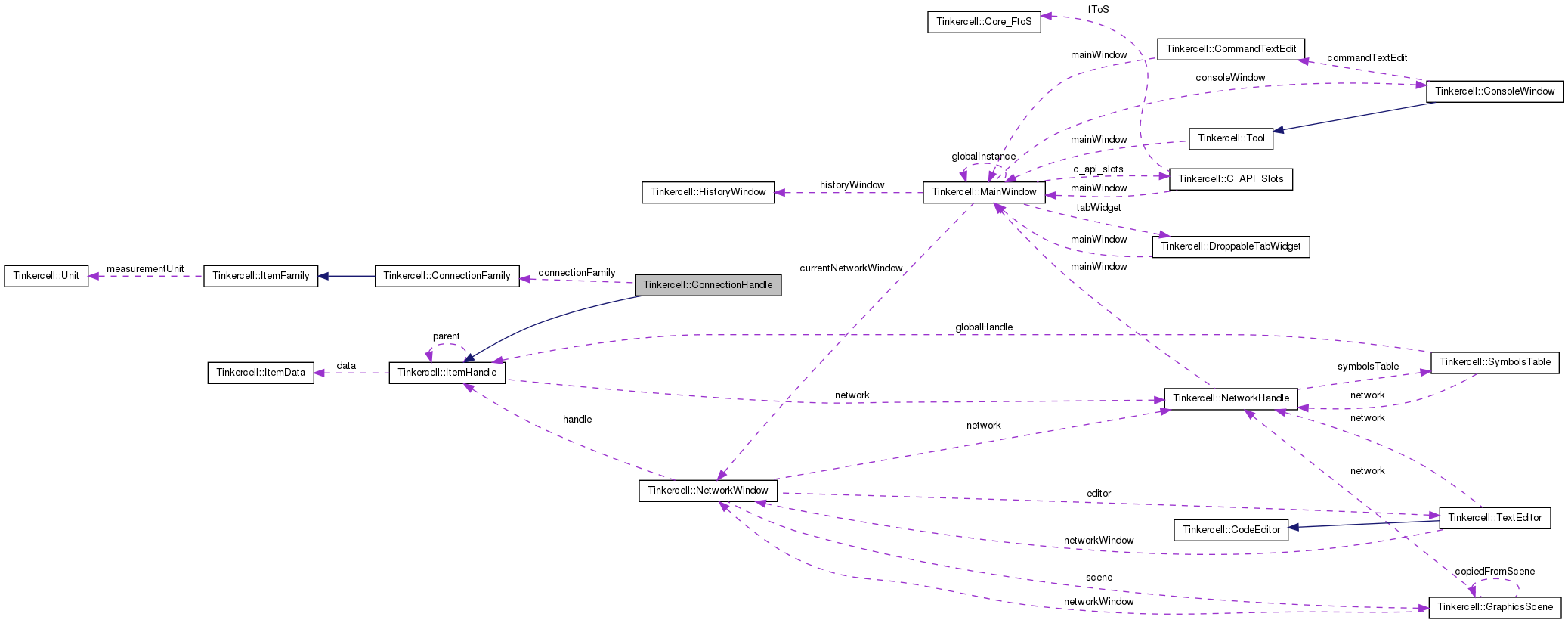

Collaboration diagram for Tinkercell::ConnectionHandle:

[legend]

List of all members.

Public Member Functions
virtual QList< NodeHandle * >	nodes (int role=0) const
	returns all the nodes connected to all the connectors in this handle
virtual void	addNode (NodeHandle *, int role=0)
	add a node to this connection (only applies to connections with NO grpahics items)
virtual void	clearNodes ()
	clear all nodes in connection (only applies to connections with NO graphics items)
virtual QList< NodeHandle * >	nodesIn () const
	returns all the nodes that are on the "input" side of this connection. If this connection is represented by graphics items, then this is determined by looking at which nodes have an arrow-head associated with them in graphics items If there are no graphics items, then this function uses the _nodes list to find the "in" nodes (role = -1).
virtual QList< NodeHandle * >	nodesOut () const
	If this connection is represented by graphics items, then this is determined by looking at which nodes have NO arrow-head associated with them in graphics items If there are no graphics items, then this function uses the _nodes list to find the "out" nodes (role = +1).
	ConnectionHandle (const QString &name=QString(), ConnectionFamily *family=0)
	default constructor -- initializes everything
	ConnectionHandle (ConnectionFamily *family, const QString &name=QString())
	one parameter constructor -- initializes everything
	ConnectionHandle (const ConnectionHandle &)
	copy constructor -- deep copy of data, but shallow copy of graphics items
virtual ConnectionHandle &	operator= (const ConnectionHandle &)
	operator =
	ConnectionHandle (ConnectionFamily family, ConnectionGraphicsItem item)
	two parameter constructor
virtual void	setFamily (ItemFamily *family, bool useCommand=true)
	set the family for this handle
virtual ItemHandle *	clone () const
	clone of this handle
virtual ItemFamily *	family () const
	family for this handle
virtual QList< ItemFamily * >	findValidChildFamilies () const
	find child-families of the current family that this connection can potentially belong with
Static Public Member Functions
static ConnectionHandle *	cast (ItemHandle *)
	checks if the item handle is a connection handle and casts it as a connection item. Returns 0 if it is not a node item
static QList< ConnectionHandle * >	cast (const QList< ItemHandle * > &)
	checks if the item handles are connection handles and casts then as connection items. Returns QList<ConnectionHandle*>
Public Attributes
ConnectionFamily *	connectionFamily
	the family for this connection handle
QList< QPair< NodeHandle *, int > >	nodesWithRoles
	the nodes that are connected by this connection and the role of each node. this list is ONLY used for connections with NO graphics items
Static Public Attributes
static const int	TYPE = 2
	this number is used to identify when an item handle is a connection handle

Detailed Description

The handles are used to bring together data and graphics items. Connection Handle contains pointers to all the graphics items that belong to it, the tools that apply to this item, the data for this item, the family that it belongs with, and pointers to nodes connected (in and out)

Definition at line 302 of file ItemHandle.h.

Constructor & Destructor Documentation

Tinkercell::ConnectionHandle::ConnectionHandle	(	const QString &	name = `QString()`,
		ConnectionFamily *	family = `0`
	)

default constructor -- initializes everything

Definition at line 741 of file ItemHandle.cpp.

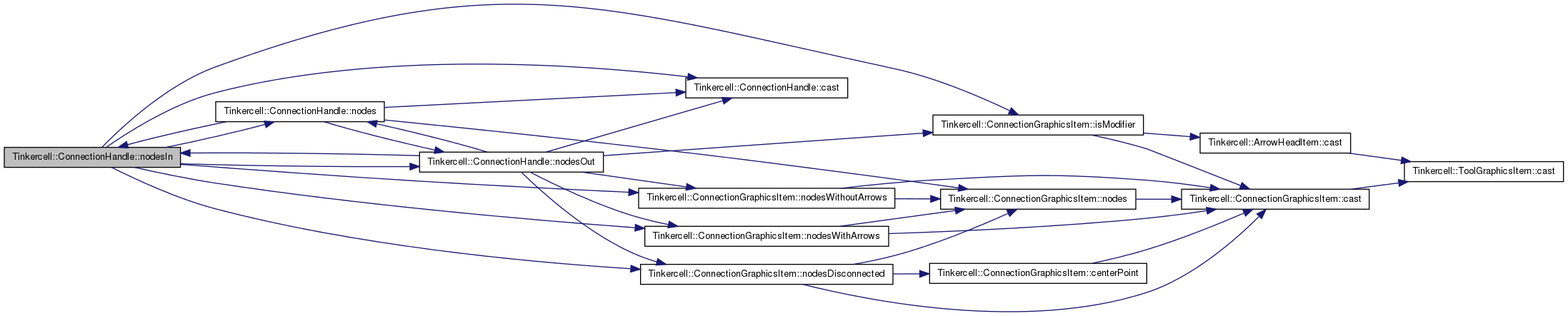

Here is the call graph for this function:

Here is the caller graph for this function:

Tinkercell::ConnectionHandle::ConnectionHandle	(	ConnectionFamily *	family,
		const QString &	name = `QString()`
	)

one parameter constructor -- initializes everything

Parameters:

ConnectionFamily*	connection family
QString	name

Definition at line 749 of file ItemHandle.cpp.

Here is the call graph for this function:

Tinkercell::ConnectionHandle::ConnectionHandle ( const ConnectionHandle & copy )

copy constructor -- deep copy of data, but shallow copy of graphics items

Definition at line 788 of file ItemHandle.cpp.

Tinkercell::ConnectionHandle::ConnectionHandle	(	ConnectionFamily *	family,
		ConnectionGraphicsItem *	item
	)

two parameter constructor

Parameters:

ConnectionFamily*	initial family
ConnectionGraphicsItem*	connection graphics item

Definition at line 755 of file ItemHandle.cpp.

Here is the call graph for this function:

Member Function Documentation

void Tinkercell::ConnectionHandle::addNode	(	NodeHandle *	h,
		int	role = `0`
	)		`[virtual]`

add a node to this connection (only applies to connections with NO grpahics items)

Parameters:

NodeHandle*	node
int	role of this node. -1 is for "in" nodes. +1 is for "out" nodes. Use any other values for specific purposes

Definition at line 936 of file ItemHandle.cpp.

ConnectionHandle * Tinkercell::ConnectionHandle::cast ( ItemHandle * item ) [static]

checks if the item handle is a connection handle and casts it as a connection item. Returns 0 if it is not a node item

Parameters:

ItemHandle* item

Definition at line 724 of file ItemHandle.cpp.

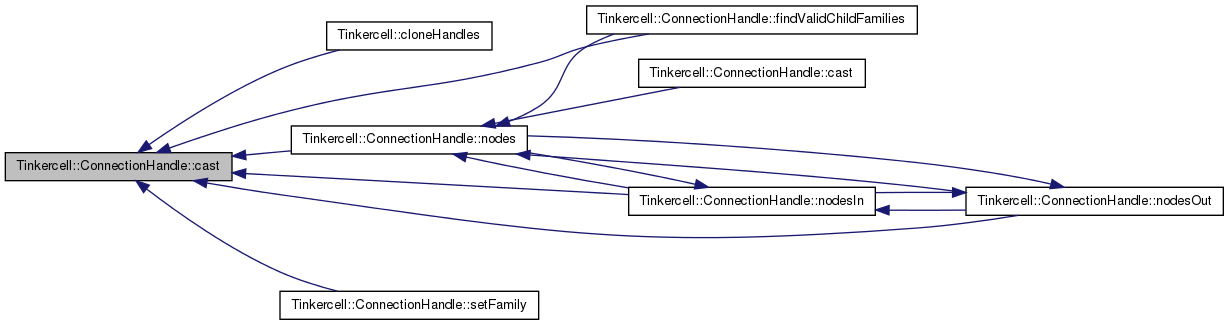

Here is the caller graph for this function:

QList< ConnectionHandle * > Tinkercell::ConnectionHandle::cast ( const QList< ItemHandle * > & items ) [static]

checks if the item handles are connection handles and casts then as connection items. Returns QList<ConnectionHandle*>

Parameters:

Returns QList<ItemHandle*> items

Definition at line 731 of file ItemHandle.cpp.

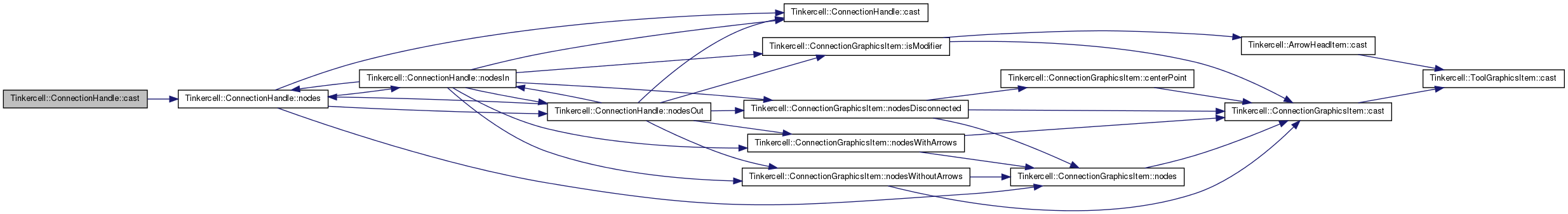

Here is the call graph for this function:

void Tinkercell::ConnectionHandle::clearNodes ( ) [virtual]

clear all nodes in connection (only applies to connections with NO graphics items)

Definition at line 942 of file ItemHandle.cpp.

ItemHandle * Tinkercell::ConnectionHandle::clone ( ) const [virtual]

clone of this handle

Returns:: ItemFamily* connection handle as item handle

Reimplemented from Tinkercell::ItemHandle.

Definition at line 802 of file ItemHandle.cpp.

Here is the call graph for this function:

ItemFamily * Tinkercell::ConnectionHandle::family ( ) const [virtual]

family for this handle

Returns:: ItemFamily* connection family as item family

Reimplemented from Tinkercell::ItemHandle.

Definition at line 807 of file ItemHandle.cpp.

Here is the caller graph for this function:

QList< ItemFamily * > Tinkercell::ConnectionHandle::findValidChildFamilies ( ) const [virtual]

find child-families of the current family that this connection can potentially belong with

Returns:: QList<ItemFamily*> valid connection families

Definition at line 947 of file ItemHandle.cpp.

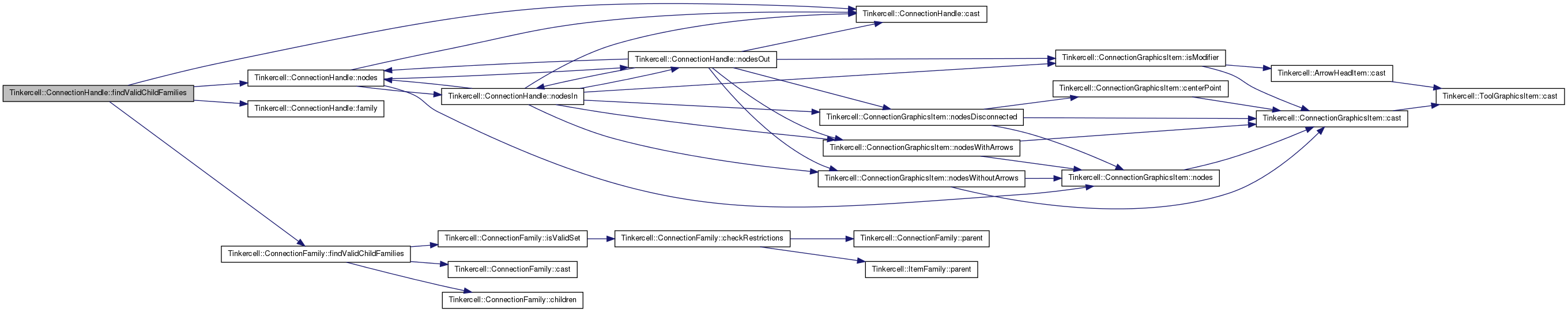

Here is the call graph for this function:

QList< NodeHandle * > Tinkercell::ConnectionHandle::nodes ( int role = 0 ) const [virtual]

returns all the nodes connected to all the connectors in this handle

Returns:: QList<NodeHandle*> list of node handles

Definition at line 812 of file ItemHandle.cpp.

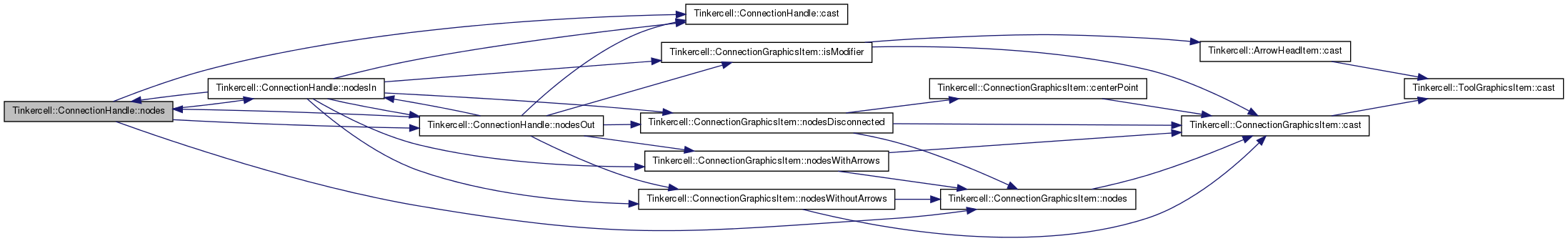

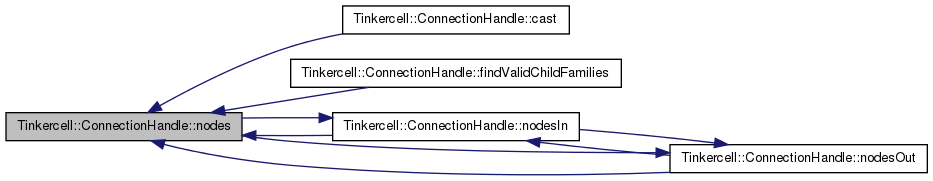

Here is the call graph for this function:

Here is the caller graph for this function:

QList< NodeHandle * > Tinkercell::ConnectionHandle::nodesIn ( ) const [virtual]

returns all the nodes that are on the "input" side of this connection. If this connection is represented by graphics items, then this is determined by looking at which nodes have an arrow-head associated with them in graphics items If there are no graphics items, then this function uses the _nodes list to find the "in" nodes (role = -1).

Returns:: QList<NodeHandle*> list of node handles

Definition at line 846 of file ItemHandle.cpp.

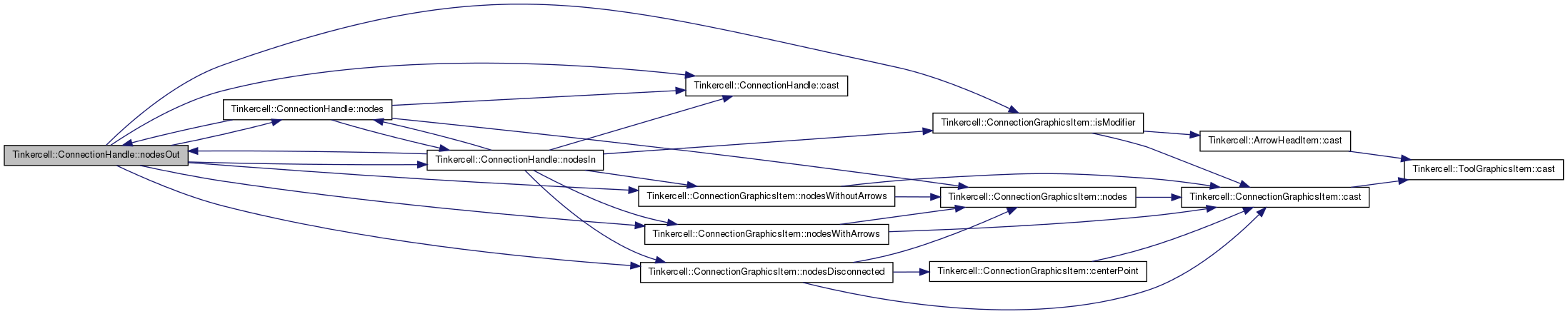

Here is the call graph for this function:

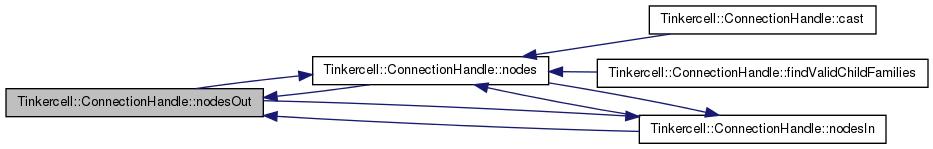

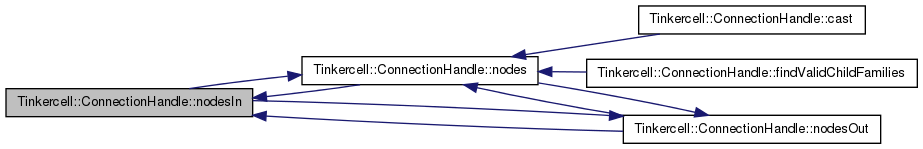

Here is the caller graph for this function:

QList< NodeHandle * > Tinkercell::ConnectionHandle::nodesOut ( ) const [virtual]

If this connection is represented by graphics items, then this is determined by looking at which nodes have NO arrow-head associated with them in graphics items If there are no graphics items, then this function uses the _nodes list to find the "out" nodes (role = +1).
