A graphics nodes item that draws connection between two or more nodes and the arrow heads at the ends. More...

#include <ConnectionGraphicsItem.h>

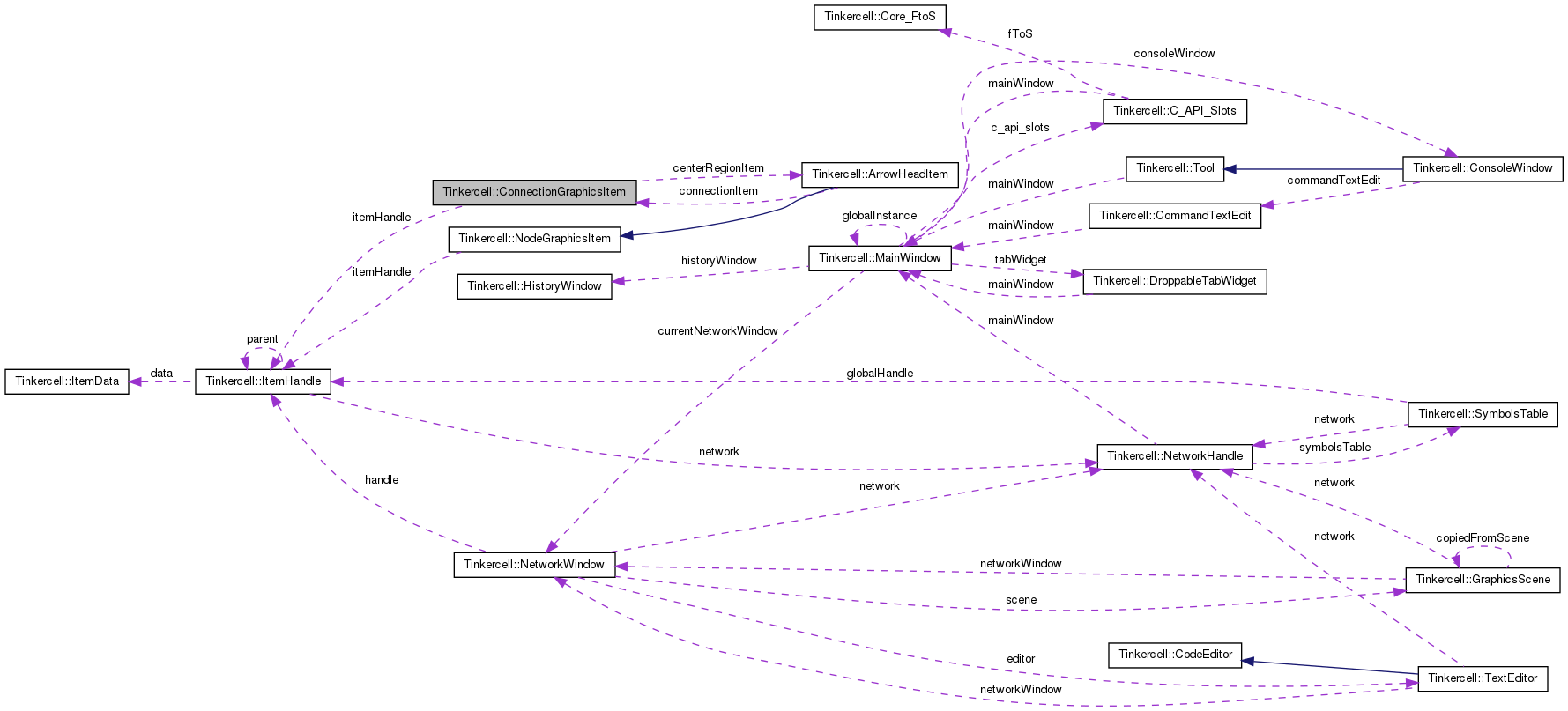

Collaboration diagram for Tinkercell::ConnectionGraphicsItem:

Classes
class	ControlPoint
	A control point with a pointer to a ConnectionGraphicsItem. More...
class	CurveSegment
	A set of control points and two arrow heads. More...
Public Types
enum	LineType { line, bezier }
	line or beizier More...
enum	{ Type = UserType + 5 }
	for enabling dynamic_cast More...
Public Member Functions
	ConnectionGraphicsItem (QGraphicsItem *parent=0)
	ConnectionGraphicsItem (const QList< NodeGraphicsItem * > &, const QList< NodeGraphicsItem * > &, QGraphicsItem *parent=0)
	ConnectionGraphicsItem (const ConnectionGraphicsItem &copy)
virtual ConnectionGraphicsItem &	operator= (const ConnectionGraphicsItem &copy)
virtual ConnectionGraphicsItem &	copyPoints (const ConnectionGraphicsItem &copy)
virtual ConnectionGraphicsItem *	clone () const
	make a copy of this connection item
virtual bool	isValid ()
	returns the bounding rectangle for this reaction figure
virtual ItemHandle *	handle () const
	get the handle of this connection
virtual void	setHandle (ItemHandle *)
	set the handle of this connection
virtual QList< ControlPoint * >	controlPoints (bool includeEnds=false) const
	list of pointers to all the control points
virtual QList< QGraphicsItem * >	controlPointsAsGraphicsItems (bool includeEnds=false) const
	list of pointers to all the control points
virtual QPainterPath	shape () const
	gets a path that represents this reaction
virtual void	setPath (const QPainterPath &path)
	set the path for this connection
virtual void	clear (bool all=false)
	Clear all shapes and control points.
virtual void	refresh (bool arrows=true)
	refresh the path if any controlpoints have moved
virtual void	setPen (QPen pen, bool permanently=false)
	set the color and line width for drawing this connection
virtual QPen	pen () const
	get the pen currently being used to draw this connection
virtual void	setControlPointsVisible (bool visible=true)
	set visibility of control points
void	showControlPoints ()
	show control points. same as setControlPointsVisible(true)
void	hideControlPoints ()
	hide control points. same as setControlPointsVisible(false)
virtual bool	isModifier () const
	check is this connection represents a modifier, i.e. points to the centerRegion of another connection
virtual QList< NodeGraphicsItem * >	nodes () const
	get all nodes that are connected
virtual QList< NodeGraphicsItem * >	nodesWithArrows () const
	get all nodes that have an arrow pointing to them
virtual QList< NodeGraphicsItem * >	nodesWithoutArrows () const
	get all nodes that do NOT have an arrow pointing to them
virtual QList< NodeGraphicsItem * >	nodesDisconnected () const
	get all nodes that are not directle connected to the main connection, such as modifier nodes
virtual QList< QGraphicsItem * >	nodesAsGraphicsItems () const
	get all nodes that are connected
virtual QList< ArrowHeadItem * >	arrowHeads () const
	get all the arrowHeads associated with the nodes. The order is the same order as nodes(), so values can be 0
virtual QList< QGraphicsItem * >	arrowHeadsAsGraphicsItems () const
	get all the arrowHeads associated with the nodes The order is the same order as nodes(), so values can be 0
virtual QList< ArrowHeadItem * >	modifierArrowHeads () const
	get all the arrowHeads NOT associated with the nodes
virtual NodeGraphicsItem *	nodeAt (int index) const
	get the node that connected to the particular path
virtual int	indexOf (QGraphicsItem *node) const
	get the index of the node
virtual void	replaceNodeAt (int, NodeGraphicsItem *)
	replace the node at the particular position with a new node
virtual void	replaceNode (NodeGraphicsItem , NodeGraphicsItem )
	replace one node in the reaction with another
virtual ArrowHeadItem *	arrowAt (int index) const
	get the arrow head at the particular index
virtual ArrowHeadItem *	modifierArrowAt (int index) const
	get the modifier arrow head at the particular index
virtual	~ConnectionGraphicsItem ()
virtual qreal	slopeAtPoint (const QPointF &point)
	get slope at the given point (or closest point)
virtual ControlPoint *	centerPoint () const
	the center point (if one exists)
virtual QPointF	centerLocation () const
	the center point (if one exists)
virtual QRectF	boundingRect () const
	bounding rect
virtual QRectF	sceneBoundingRect () const
	scene bounding rect
virtual int	type () const
	for enabling dynamic_cast
Static Public Member Functions
static ConnectionGraphicsItem *	cast (QGraphicsItem *)
	cast a graphics item to a connection graphics item using qgraphicsitem_cast
static QList < ConnectionGraphicsItem * >	cast (const QList< QGraphicsItem * > &)
	cast a list of graphics item to a list of connection graphics items using qgraphicsitem_cast
static ConnectionGraphicsItem *	topLevelConnectionItem (QGraphicsItem *item, bool includeControlPoints=false)
	gets the connection graphics item from its child item
Public Attributes
QString	name
	just a name used identifying the connection
QString	className
	used for checking type before static casts
QPen	defaultPen
	permanent pen for this control point
QString	groupID
	for identifying which scene this item belongs in
LineType	lineType
	type of line for this reaction - line or beizier
QList< CurveSegment >	curveSegments
	vector of vector of control point
qreal	arrowHeadDistance
	distance from arrow head to the item that it is connected to
bool	controlPointsVisible
	indicates whether to show lines around the curves
QSizeF	centerRegion
	a rectangle that sits at the center of the connector
ArrowHeadItem *	centerRegionItem
	the image on the rectangle that sits at the center of the connector
Static Public Attributes
static const QString	CLASSNAME = QString("ConnectionGraphicsItem")
	used for checking type before static casts
static QString	DefaultMiddleItemFile
	used to initialize the middle item for a connection
static QString	DefaultArrowHeadFile
	used to initialize the arrow heads for a connection
static const int	numLineTypes = 2
	number of different type of shapes available
Protected Member Functions
virtual void	refreshBoundaryPath ()
	update the boundary path
virtual void	adjustEndPoints (bool arrows=true)
	adjust the end control points so that they point straight
Protected Attributes
ItemHandle *	itemHandle
	Tinkercell object that this drawable belongs in.
QGraphicsPathItem *	boundaryPathItem
	path for drawing the boundary region
QGraphicsPathItem *	outerPathItem
	path of the outline (usually white)
QGraphicsPathItem *	mainPathItem
	path of the main curve
QPainterPath	pathShape
	path of the selection region of the entire connection
QRectF	pathBoundingRect
	the boundary rectangle for this path. It is recomputed during each refresh.

Detailed Description

A graphics nodes item that draws connection between two or more nodes and the arrow heads at the ends.

Definition at line 99 of file ConnectionGraphicsItem.h.

Member Enumeration Documentation

anonymous enum

for enabling dynamic_cast

Enumerator:

Type

Definition at line 326 of file ConnectionGraphicsItem.h.

enum Tinkercell::ConnectionGraphicsItem::LineType

line or beizier

Enumerator:

line
bezier

Definition at line 155 of file ConnectionGraphicsItem.h.

Constructor & Destructor Documentation

Tinkercell::ConnectionGraphicsItem::ConnectionGraphicsItem ( QGraphicsItem * parent = 0 )

Constructor: does nothing

Constructor: initialize everything

Definition at line 150 of file ConnectionGraphicsItem.cpp.

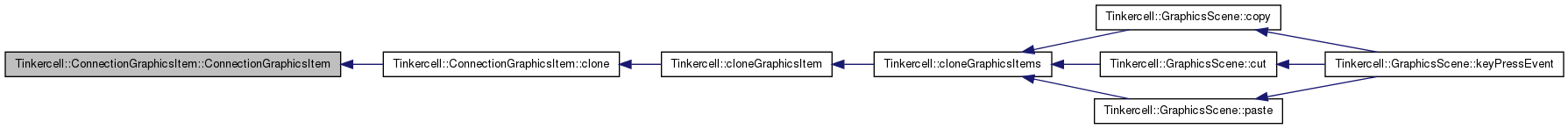

Here is the caller graph for this function:

Tinkercell::ConnectionGraphicsItem::ConnectionGraphicsItem	(	const QList< NodeGraphicsItem * > &	from,
		const QList< NodeGraphicsItem * > &	to,
		QGraphicsItem *	parent = `0`
	)

Constructor: constructs linear curve segments with arrow heads on the second set of nodes

Parameters:

QList<NodeGraphicsItem*>	list of nodes to connect from (no arrow heads)
QList<NodeGraphicsItem*>	list of nodes to connect to (have arrow heads)

Definition at line 1924 of file ConnectionGraphicsItem.cpp.

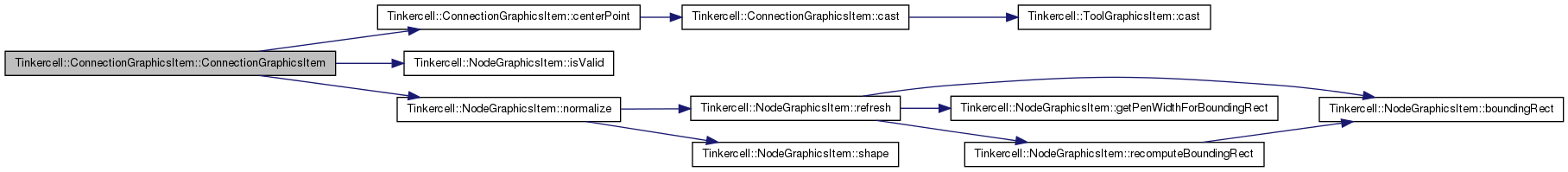

Here is the call graph for this function:

Tinkercell::ConnectionGraphicsItem::ConnectionGraphicsItem ( const ConnectionGraphicsItem & copy )

Copy Constructor: copies handle but not control points

Copy Constructor: deep copy of all pointers

Definition at line 192 of file ConnectionGraphicsItem.cpp.

Here is the call graph for this function:

Tinkercell::ConnectionGraphicsItem::~ConnectionGraphicsItem ( ) [virtual]

Destructor: deletes all control points

Destructor: deletes all shapes and control points

Definition at line 485 of file ConnectionGraphicsItem.cpp.

Here is the call graph for this function:

Member Function Documentation

void Tinkercell::ConnectionGraphicsItem::adjustEndPoints ( bool arrowTransform = true ) [protected, virtual]

adjust the end control points so that they point straight

Parameters:

bool	adjust arrow transformations
void

Returns:: void

Definition at line 653 of file ConnectionGraphicsItem.cpp.

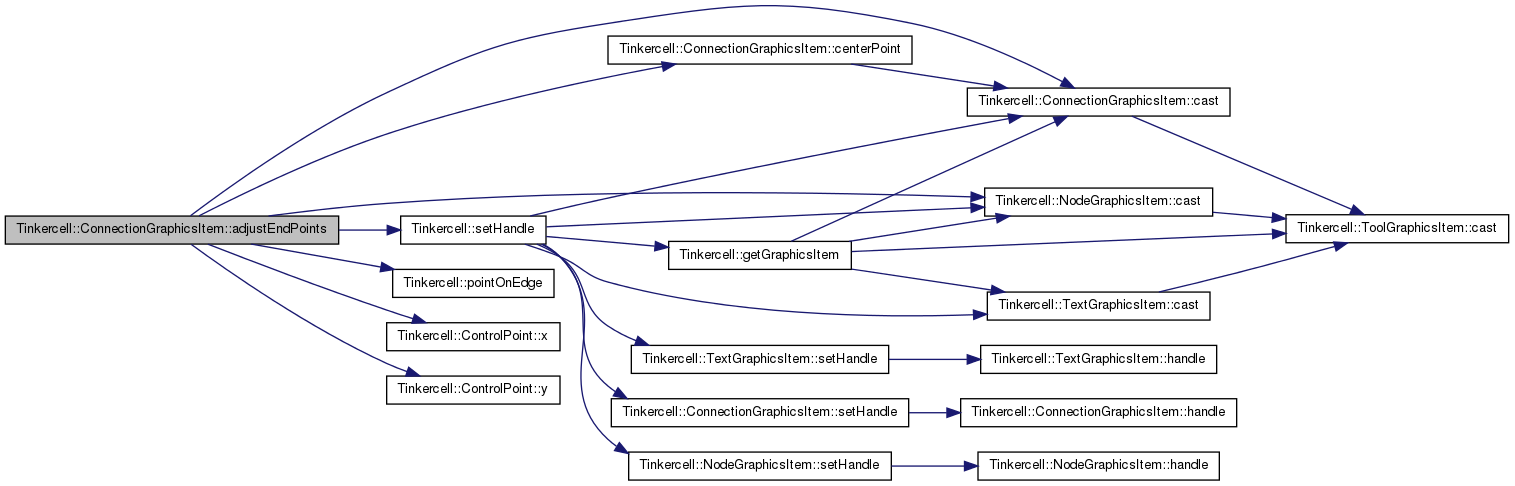

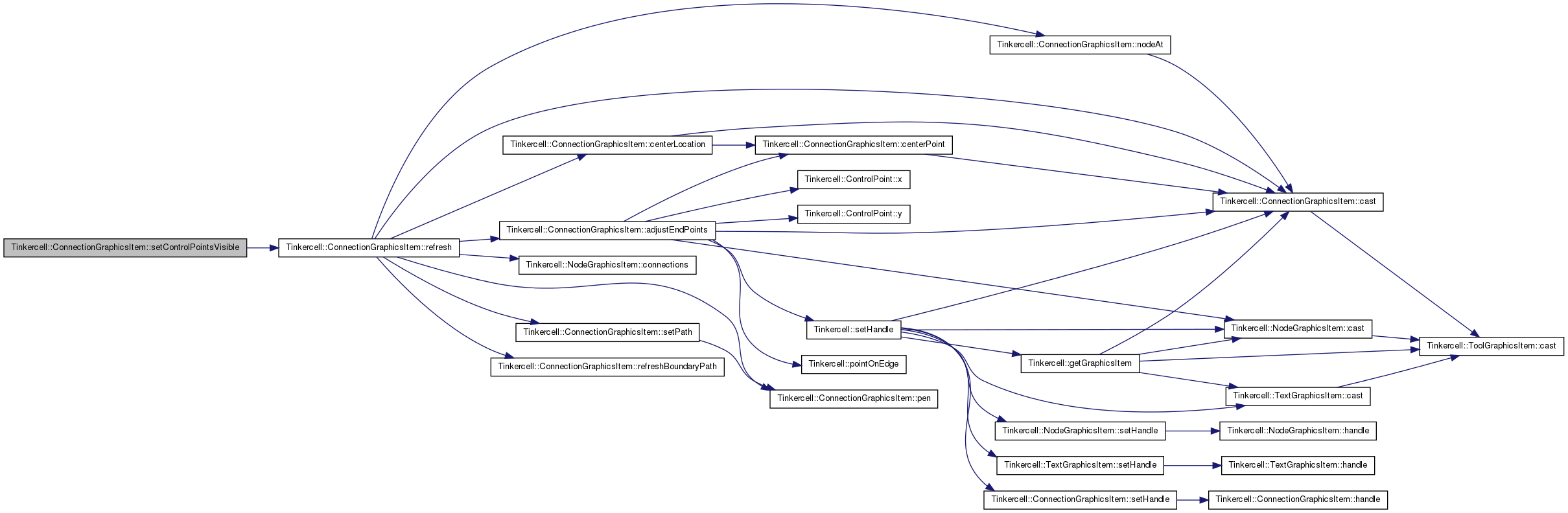

Here is the call graph for this function:

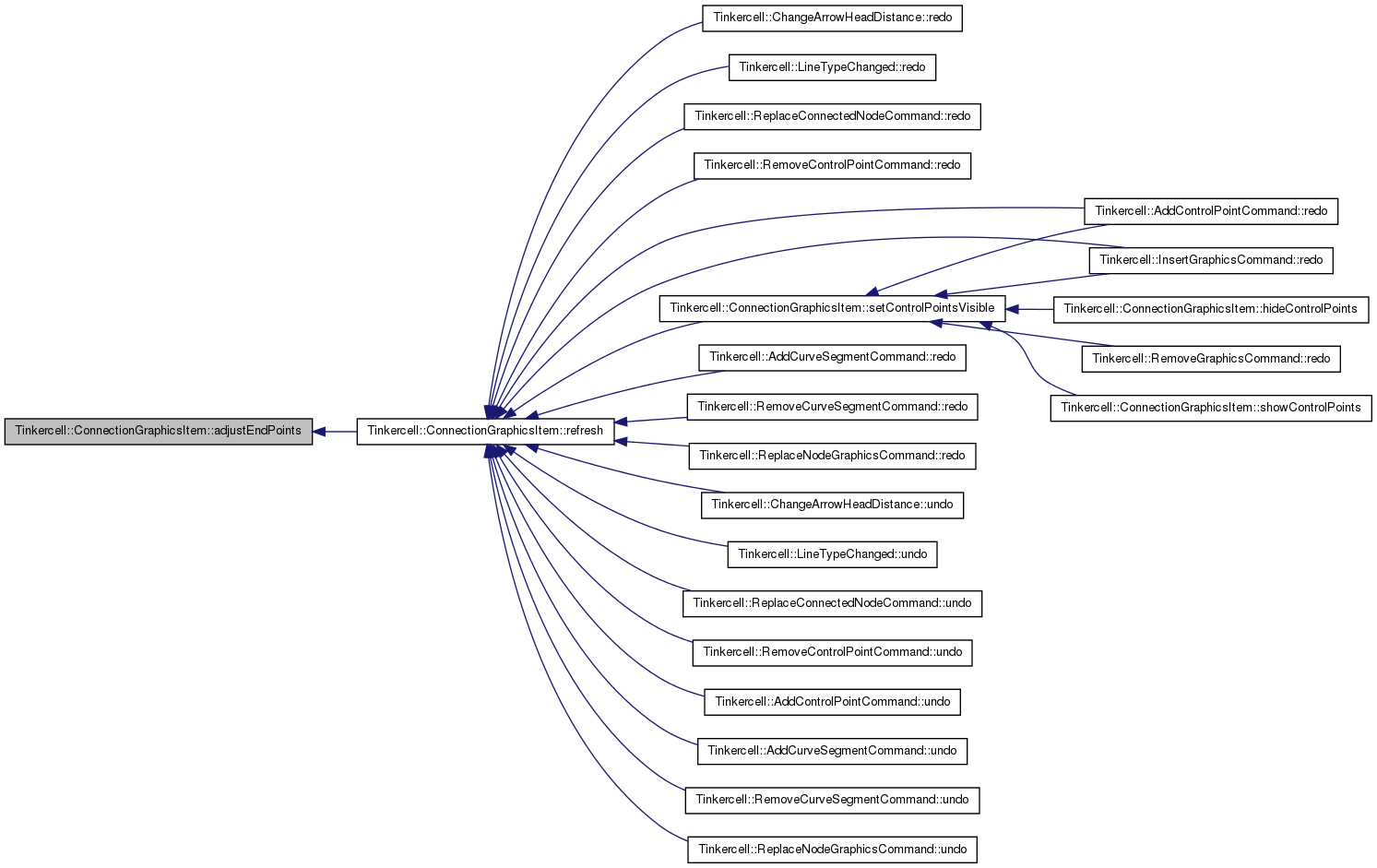

Here is the caller graph for this function:

ArrowHeadItem * Tinkercell::ConnectionGraphicsItem::arrowAt ( int index ) const [virtual]

get the arrow head at the particular index

find the arrow head at the particular index

Parameters:

index less than size of curveSegments

Returns:: node item or 0

Definition at line 1662 of file ConnectionGraphicsItem.cpp.

Here is the call graph for this function:

Here is the caller graph for this function:

QList< ArrowHeadItem * > Tinkercell::ConnectionGraphicsItem::arrowHeads ( ) const [virtual]

get all the arrowHeads associated with the nodes. The order is the same order as nodes(), so values can be 0

get all the arrow heads in the same order as nodes

Returns:: node item list

Definition at line 1511 of file ConnectionGraphicsItem.cpp.

Here is the call graph for this function:

Here is the caller graph for this function:

QList< QGraphicsItem * > Tinkercell::ConnectionGraphicsItem::arrowHeadsAsGraphicsItems ( ) const [virtual]

get all the arrowHeads associated with the nodes The order is the same order as nodes(), so values can be 0

get all the arrow heads in the same order as nodes

Returns:: arrow item list; node item list

Definition at line 1535 of file ConnectionGraphicsItem.cpp.

Here is the call graph for this function:

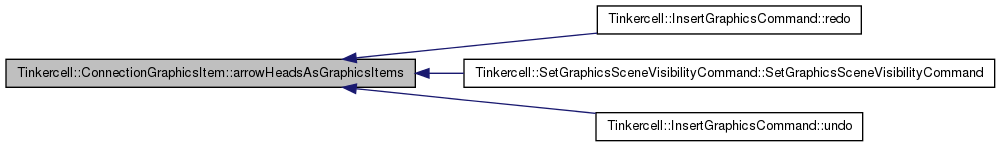

Here is the caller graph for this function:

QRectF Tinkercell::ConnectionGraphicsItem::boundingRect ( ) const [virtual]

bounding rect

Definition at line 1296 of file ConnectionGraphicsItem.cpp.

QList< ConnectionGraphicsItem * > Tinkercell::ConnectionGraphicsItem::cast ( const QList< QGraphicsItem * > & list ) [static]

cast a list of graphics item to a list of connection graphics items using qgraphicsitem_cast

Parameters:

QList<QGraphicsItem*> graphics items

Returns:: QList<ConnectionGraphicsItem*> can be empty if no cast is invalid

Definition at line 1913 of file ConnectionGraphicsItem.cpp.

ConnectionGraphicsItem * Tinkercell::ConnectionGraphicsItem::cast ( QGraphicsItem * q ) [static]

cast a graphics item to a connection graphics item using qgraphicsitem_cast

Parameters:

QGraphicsItem* graphics item

Returns:: ConnectionGraphicsItem* can be 0 if the cast is invalid

Definition at line 1906 of file ConnectionGraphicsItem.cpp.

Here is the call graph for this function:

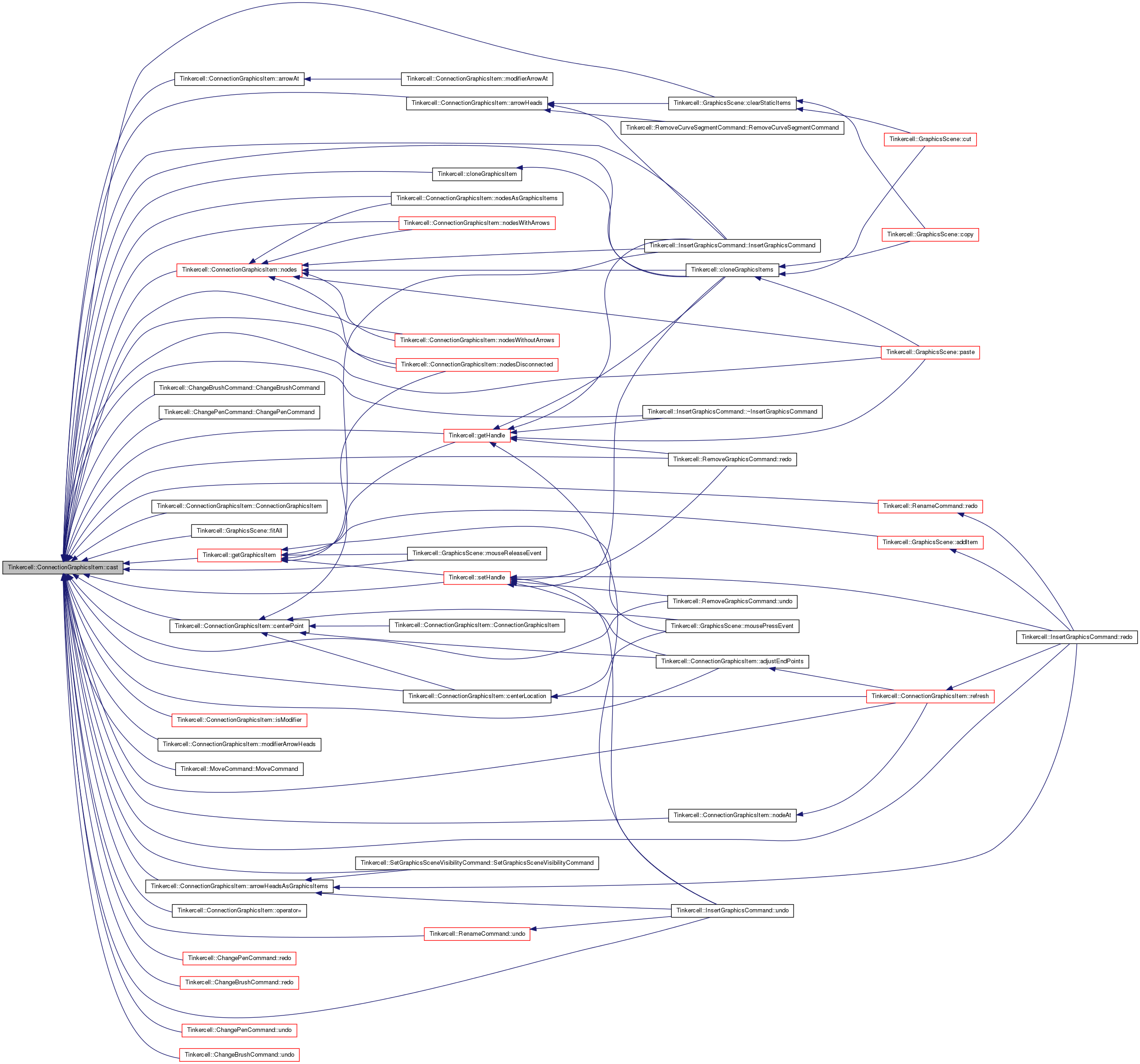

Here is the caller graph for this function:

QPointF Tinkercell::ConnectionGraphicsItem::centerLocation ( ) const [virtual]

the center point (if one exists)

the center location

Definition at line 604 of file ConnectionGraphicsItem.cpp.

Here is the call graph for this function:

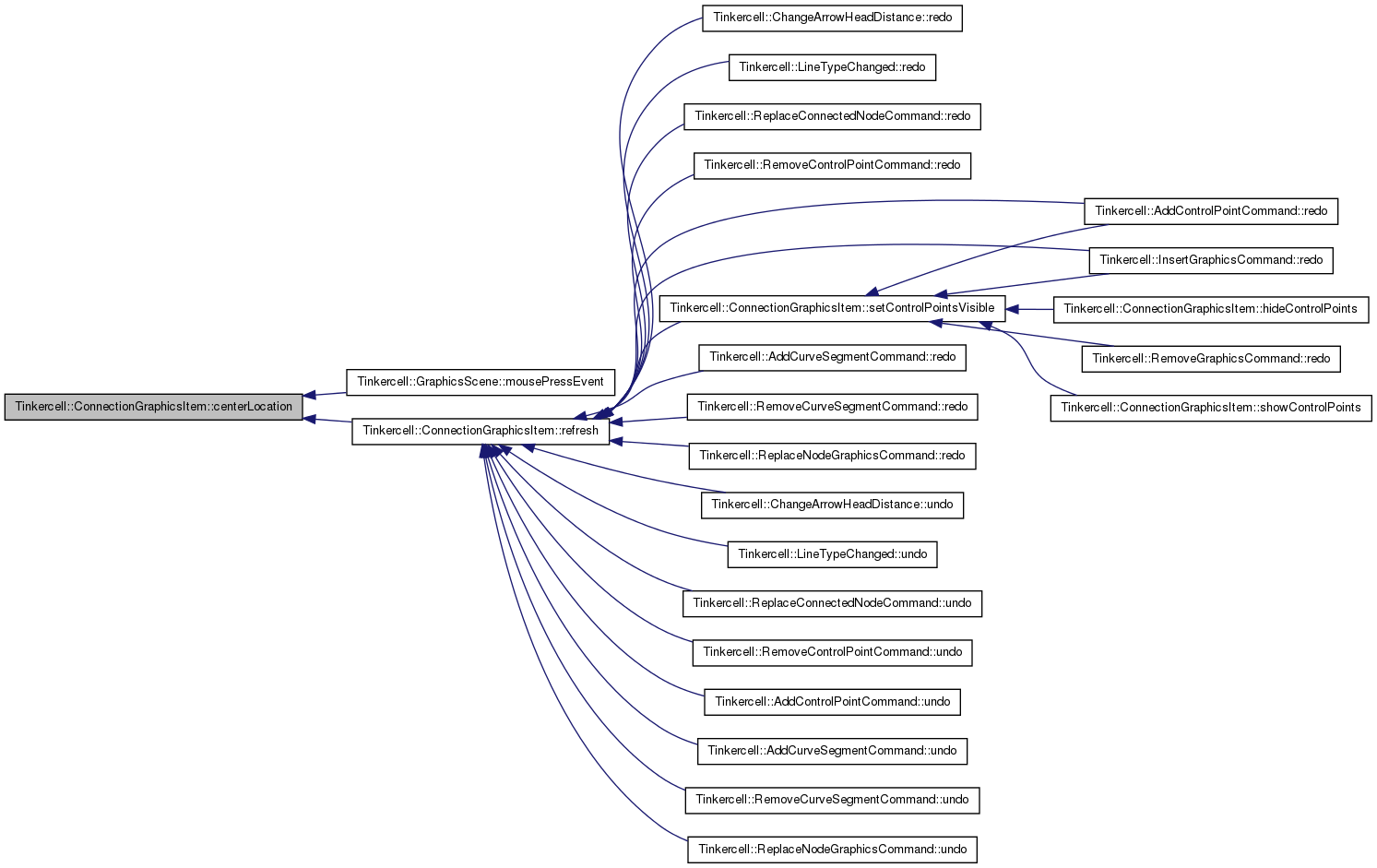

Here is the caller graph for this function:

ConnectionGraphicsItem::ControlPoint * Tinkercell::ConnectionGraphicsItem::centerPoint ( ) const [virtual]

the center point (if one exists)

Definition at line 585 of file ConnectionGraphicsItem.cpp.

Here is the call graph for this function:

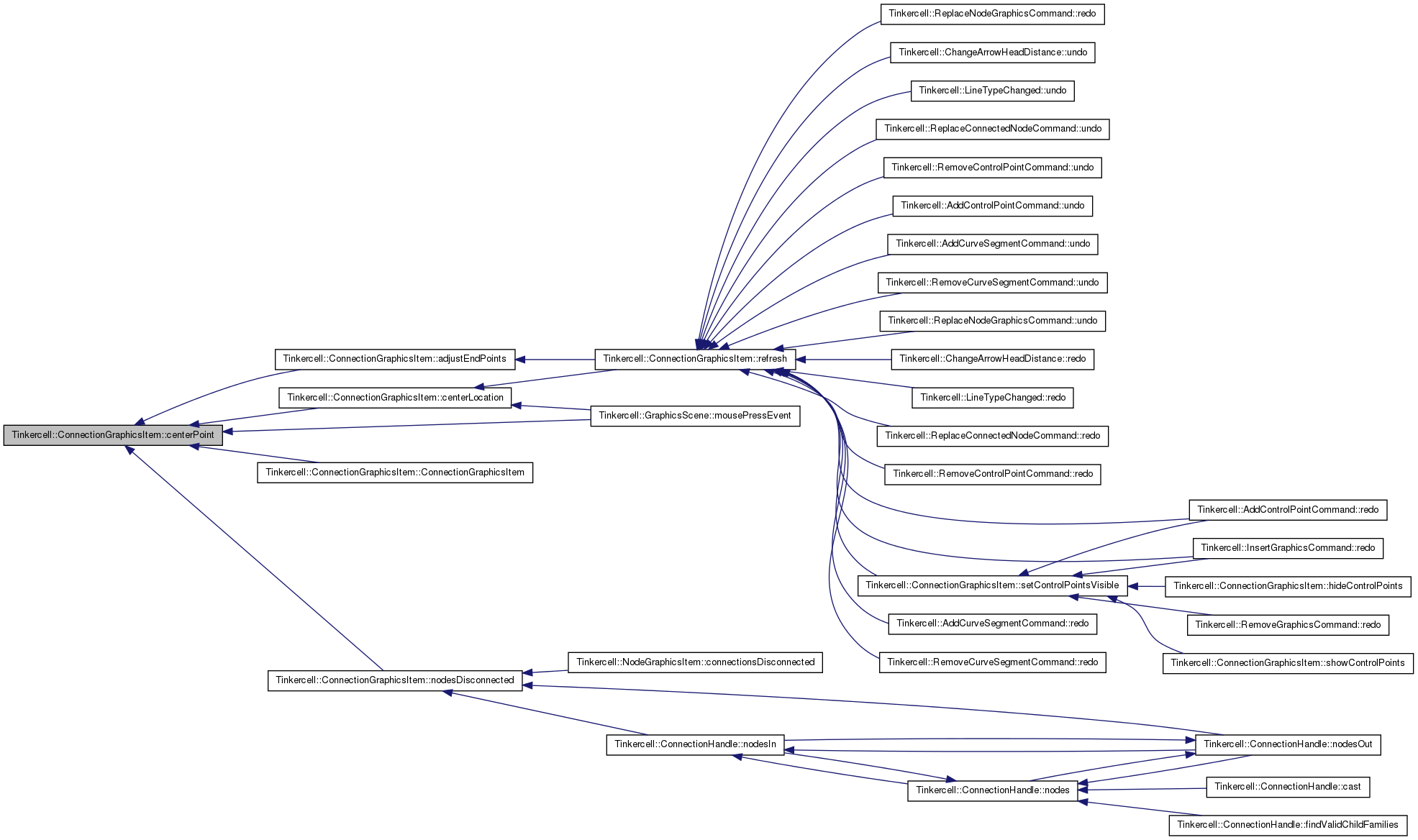

Here is the caller graph for this function:

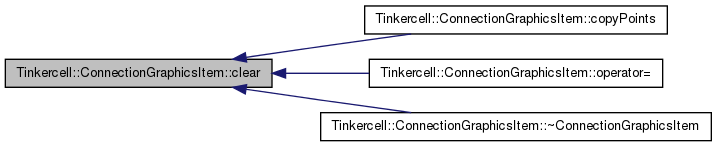

void Tinkercell::ConnectionGraphicsItem::clear ( bool all = false ) [virtual]

Clear all shapes and control points.

Parameters:

void

Returns:: void

Definition at line 1162 of file ConnectionGraphicsItem.cpp.

Here is the caller graph for this function:

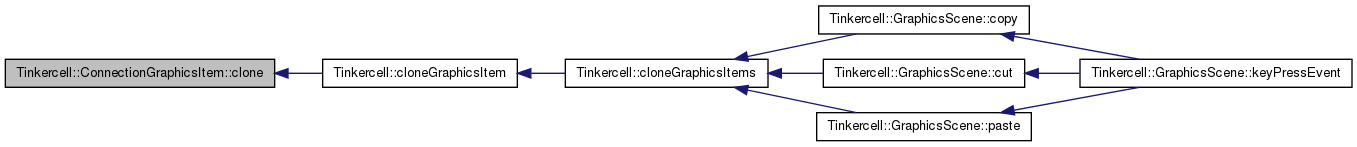

ConnectionGraphicsItem * Tinkercell::ConnectionGraphicsItem::clone ( ) const [virtual]

make a copy of this connection item

make a copy of this item

Definition at line 308 of file ConnectionGraphicsItem.cpp.

Here is the call graph for this function:

Here is the caller graph for this function:

QList< ConnectionGraphicsItem::ControlPoint * > Tinkercell::ConnectionGraphicsItem::controlPoints ( bool includeEnds = false ) const [virtual]

list of pointers to all the control points

Definition at line 1308 of file ConnectionGraphicsItem.cpp.

Here is the caller graph for this function:

QList< QGraphicsItem * > Tinkercell::ConnectionGraphicsItem::controlPointsAsGraphicsItems ( bool includeEnds = false ) const [virtual]

list of pointers to all the control points

Definition at line 1322 of file ConnectionGraphicsItem.cpp.

Here is the caller graph for this function:

ConnectionGraphicsItem & Tinkercell::ConnectionGraphicsItem::copyPoints ( const ConnectionGraphicsItem & copy ) [virtual]

operator =: copy just the control point positions and pen

Definition at line 464 of file ConnectionGraphicsItem.cpp.

Here is the call graph for this function:

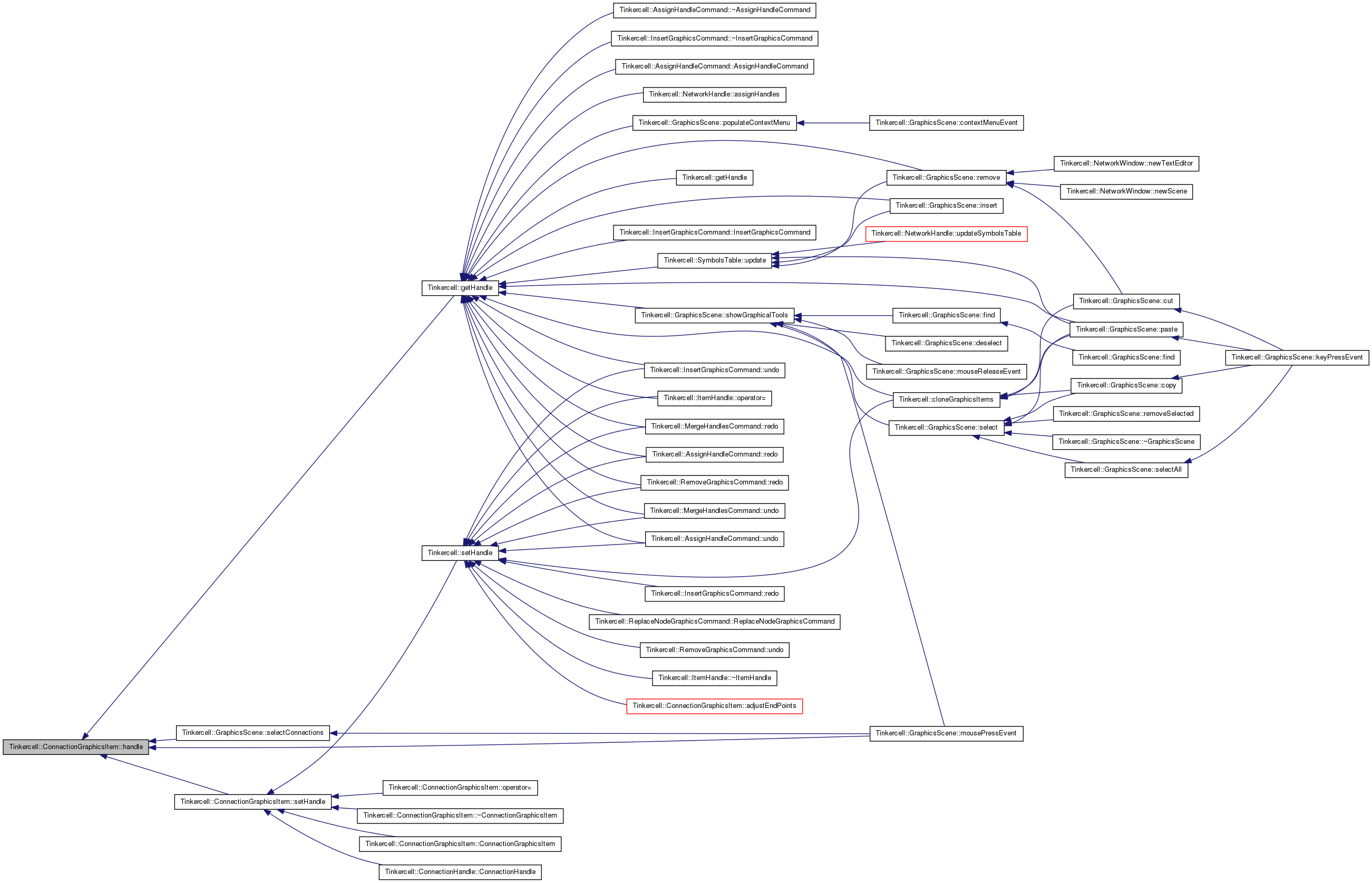

ItemHandle * Tinkercell::ConnectionGraphicsItem::handle ( ) const [virtual]

get the handle of this connection

Definition at line 33 of file ConnectionGraphicsItem.cpp.

Here is the caller graph for this function:

void Tinkercell::ConnectionGraphicsItem::hideControlPoints ( )

hide control points. same as setControlPointsVisible(false)

Returns:: void

Definition at line 1290 of file ConnectionGraphicsItem.cpp.

Here is the call graph for this function:

int Tinkercell::ConnectionGraphicsItem::indexOf ( QGraphicsItem * target ) const [virtual]

get the index of the node

find the index of the node

Parameters:

node	in this connection

Returns:: index, -1 if node not found

Definition at line 1621 of file ConnectionGraphicsItem.cpp.

bool Tinkercell::ConnectionGraphicsItem::isModifier ( ) const [virtual]

check is this connection represents a modifier, i.e. points to the centerRegion of another connection

Returns:: boolean

Definition at line 1365 of file ConnectionGraphicsItem.cpp.

Here is the call graph for this function:

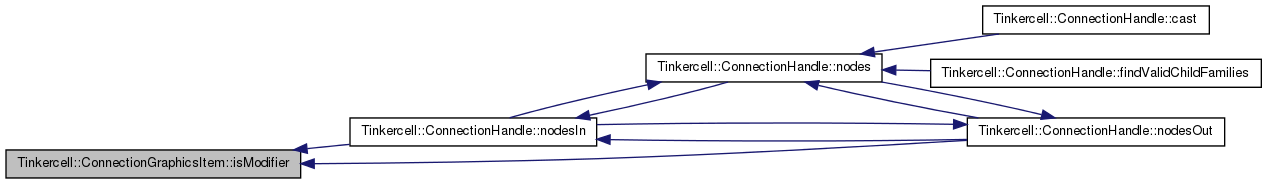

Here is the caller graph for this function:

bool Tinkercell::ConnectionGraphicsItem::isValid ( ) [virtual]

returns the bounding rectangle for this reaction figure

checks that this is a valid drawable

paint method. Call's parent's after drawing boundary true

checks that this is a valid drawable

Definition at line 493 of file ConnectionGraphicsItem.cpp.

ArrowHeadItem * Tinkercell::ConnectionGraphicsItem::modifierArrowAt ( int index ) const [virtual]

get the modifier arrow head at the particular index

find the modifier arrow head at the particular index

Parameters:

index less than size of curveSegments

Returns:: node item or 0

Definition at line 1710 of file ConnectionGraphicsItem.cpp.

Here is the call graph for this function:

QList< ArrowHeadItem * > Tinkercell::ConnectionGraphicsItem::modifierArrowHeads ( ) const [virtual]

get all the arrowHeads NOT associated with the nodes

find all the modifier arrow heads in the same order as nodes

Returns:: graphics item list; node item list

Definition at line 1559 of file ConnectionGraphicsItem.cpp.

Here is the call graph for this function:

NodeGraphicsItem * Tinkercell::ConnectionGraphicsItem::nodeAt ( int index ) const [virtual]

get the node that connected to the particular path

find the node that connected to the particular path

Parameters:

index less than size of curveSegments

Returns:: node item or 0

Definition at line 1584 of file ConnectionGraphicsItem.cpp.

Here is the call graph for this function:

Here is the caller graph for this function:

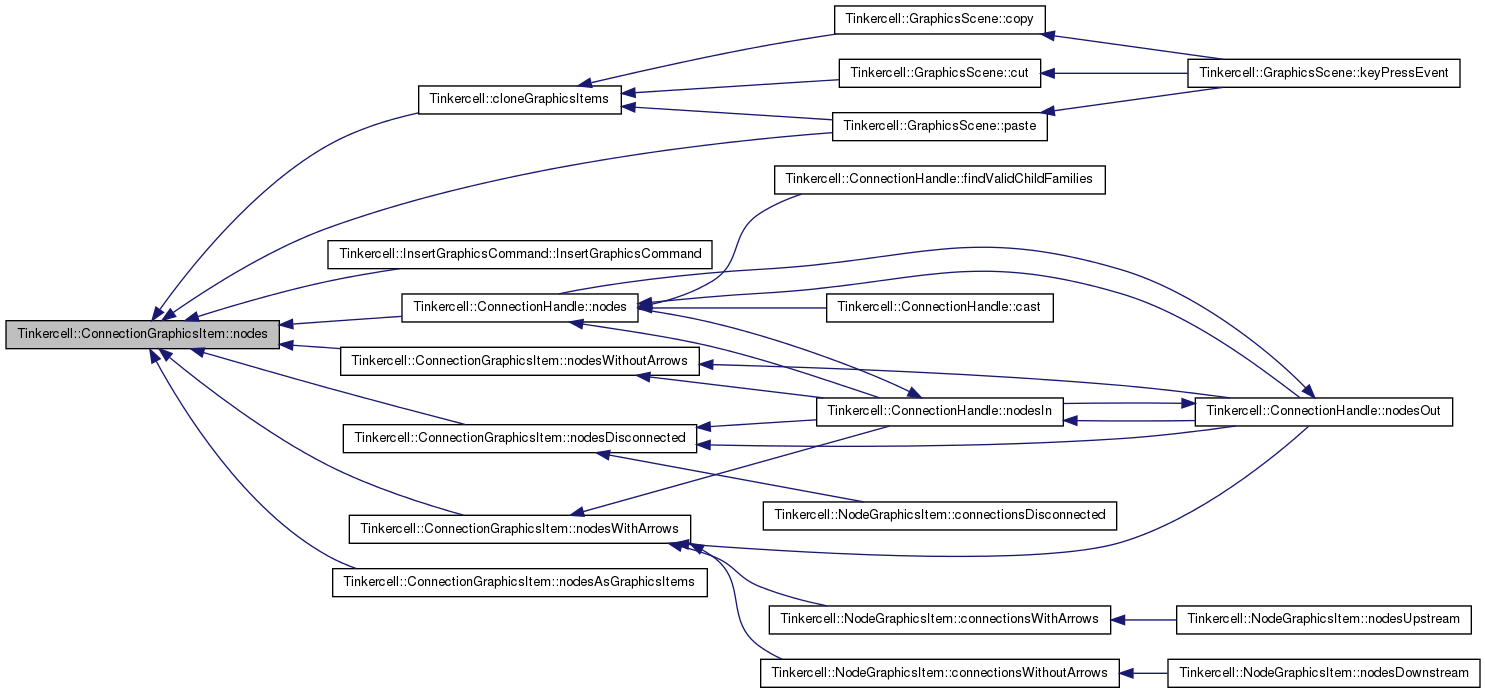

QList< NodeGraphicsItem * > Tinkercell::ConnectionGraphicsItem::nodes ( ) const [virtual]

get all nodes that are connected

find all the nodes that are connected

Returns:: node item list; node item list or 0

Definition at line 1394 of file ConnectionGraphicsItem.cpp.

Here is the call graph for this function:

Here is the caller graph for this function:

QList< QGraphicsItem * > Tinkercell::ConnectionGraphicsItem::nodesAsGraphicsItems ( ) const [virtual]

get all nodes that are connected

find all the nodes that are connected

Returns:: graphics item list; node item list or 0

Definition at line 1487 of file ConnectionGraphicsItem.cpp.

Here is the call graph for this function:

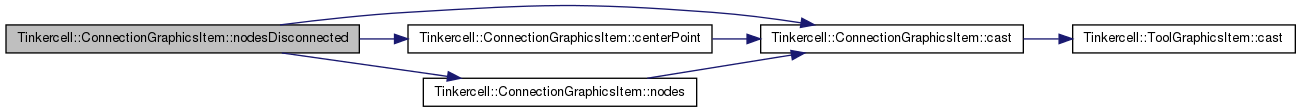

QList< NodeGraphicsItem * > Tinkercell::ConnectionGraphicsItem::nodesDisconnected ( ) const [virtual]

get all nodes that are not directle connected to the main connection, such as modifier nodes

find all the nodes that are connected

Returns:: node item list; node item list or 0

Definition at line 1467 of file ConnectionGraphicsItem.cpp.

Here is the call graph for this function:

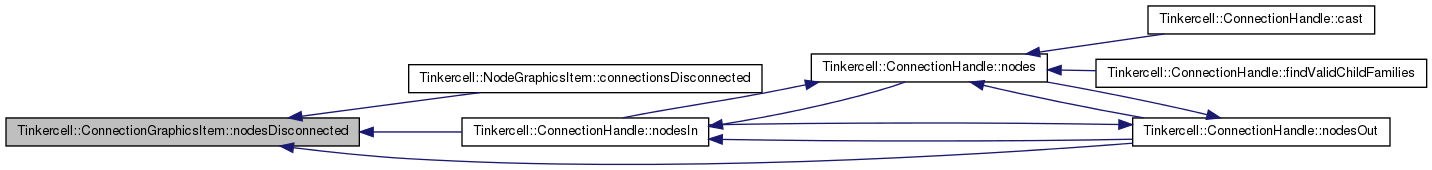

Here is the caller graph for this function:

QList< NodeGraphicsItem * > Tinkercell::ConnectionGraphicsItem::nodesWithArrows ( ) const [virtual]

get all nodes that have an arrow pointing to them

find all the nodes that are connected

Returns:: node item list; node item list or 0

Definition at line 1419 of file ConnectionGraphicsItem.cpp.

Here is the call graph for this function:

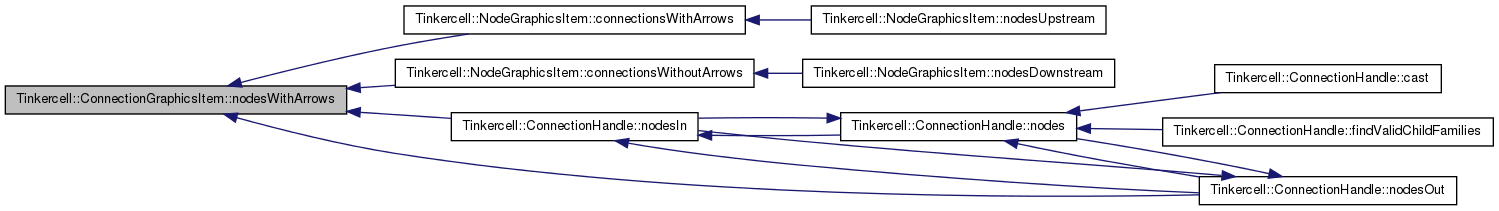

Here is the caller graph for this function:

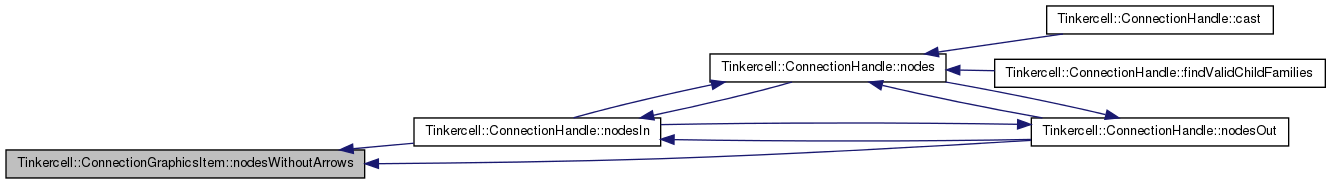

QList< NodeGraphicsItem * > Tinkercell::ConnectionGraphicsItem::nodesWithoutArrows ( ) const [virtual]

get all nodes that do NOT have an arrow pointing to them

find all the nodes that are connected

Returns:: node item list; node item list or 0

Definition at line 1443 of file ConnectionGraphicsItem.cpp.

Here is the call graph for this function:

Here is the caller graph for this function:

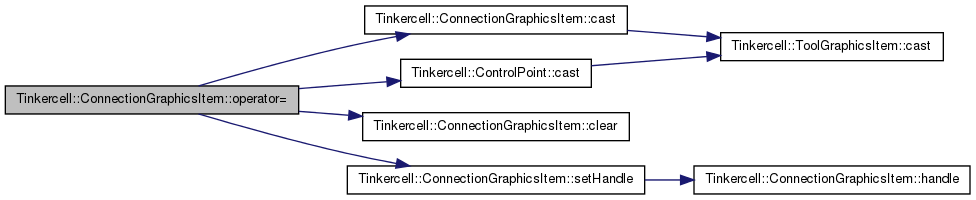

ConnectionGraphicsItem & Tinkercell::ConnectionGraphicsItem::operator= ( const ConnectionGraphicsItem & copy ) [virtual]

operator =: remove everything from original connection and copy everything from the given connection

operator =: copy just the control point positions and pen

Definition at line 316 of file ConnectionGraphicsItem.cpp.

Here is the call graph for this function:

QPen Tinkercell::ConnectionGraphicsItem::pen ( ) const [virtual]

get the pen currently being used to draw this connection

Returns:: QPen pen

Definition at line 426 of file ConnectionGraphicsItem.cpp.

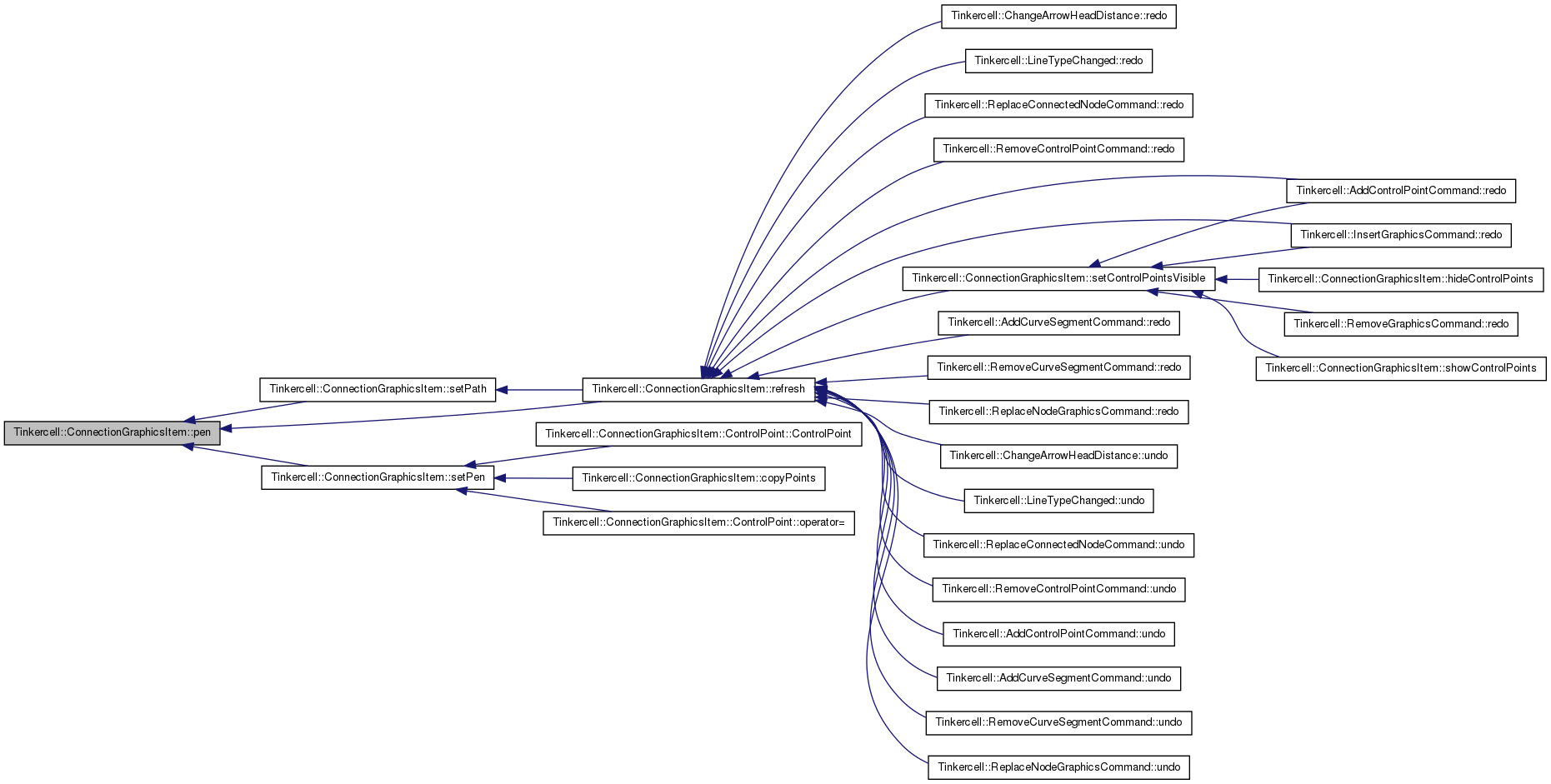

Here is the caller graph for this function:

void Tinkercell::ConnectionGraphicsItem::refresh ( bool arrowTransform = true ) [virtual]

refresh the path if any controlpoints have moved

Parameters:

bool	tranform arrow heads

Returns:: void

Parameters:

void

Returns:: void

Definition at line 945 of file ConnectionGraphicsItem.cpp.

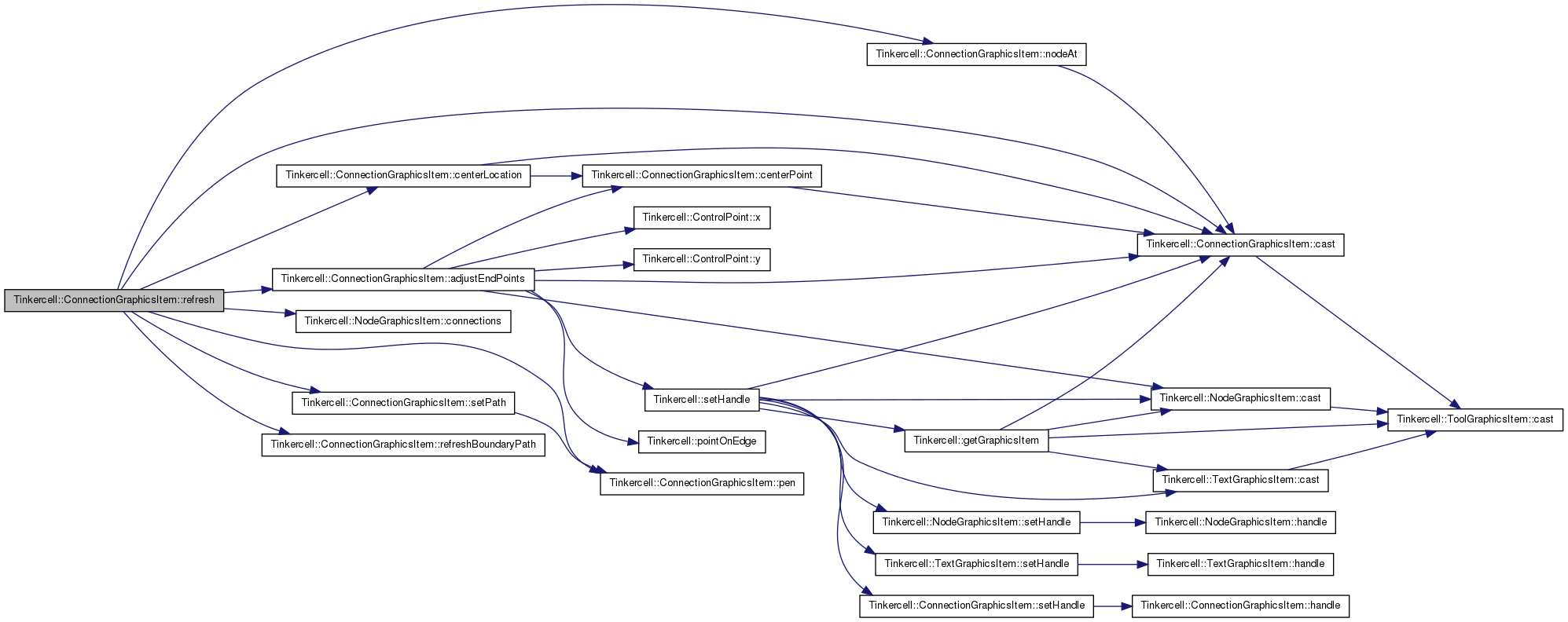

Here is the call graph for this function:

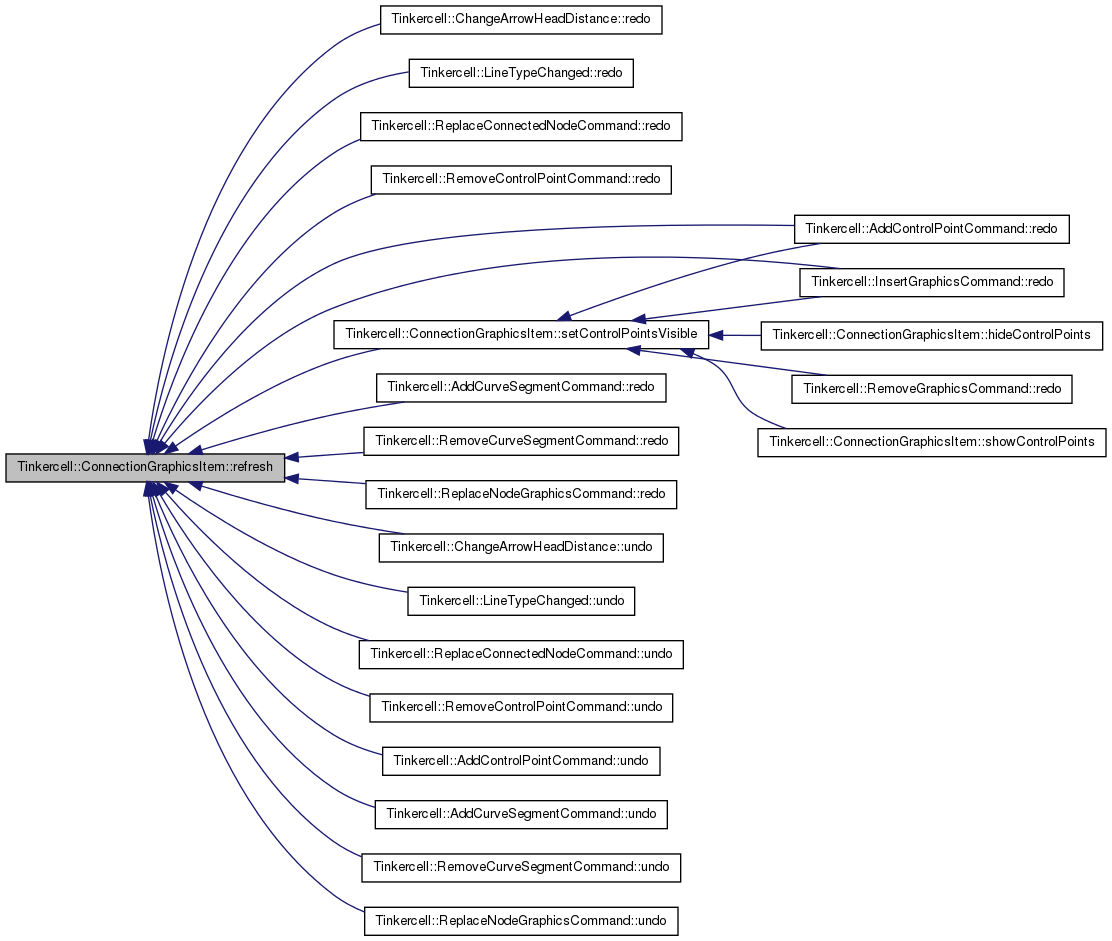

Here is the caller graph for this function:

void Tinkercell::ConnectionGraphicsItem::refreshBoundaryPath ( ) [protected, virtual]

update the boundary path

Definition at line 1133 of file ConnectionGraphicsItem.cpp.

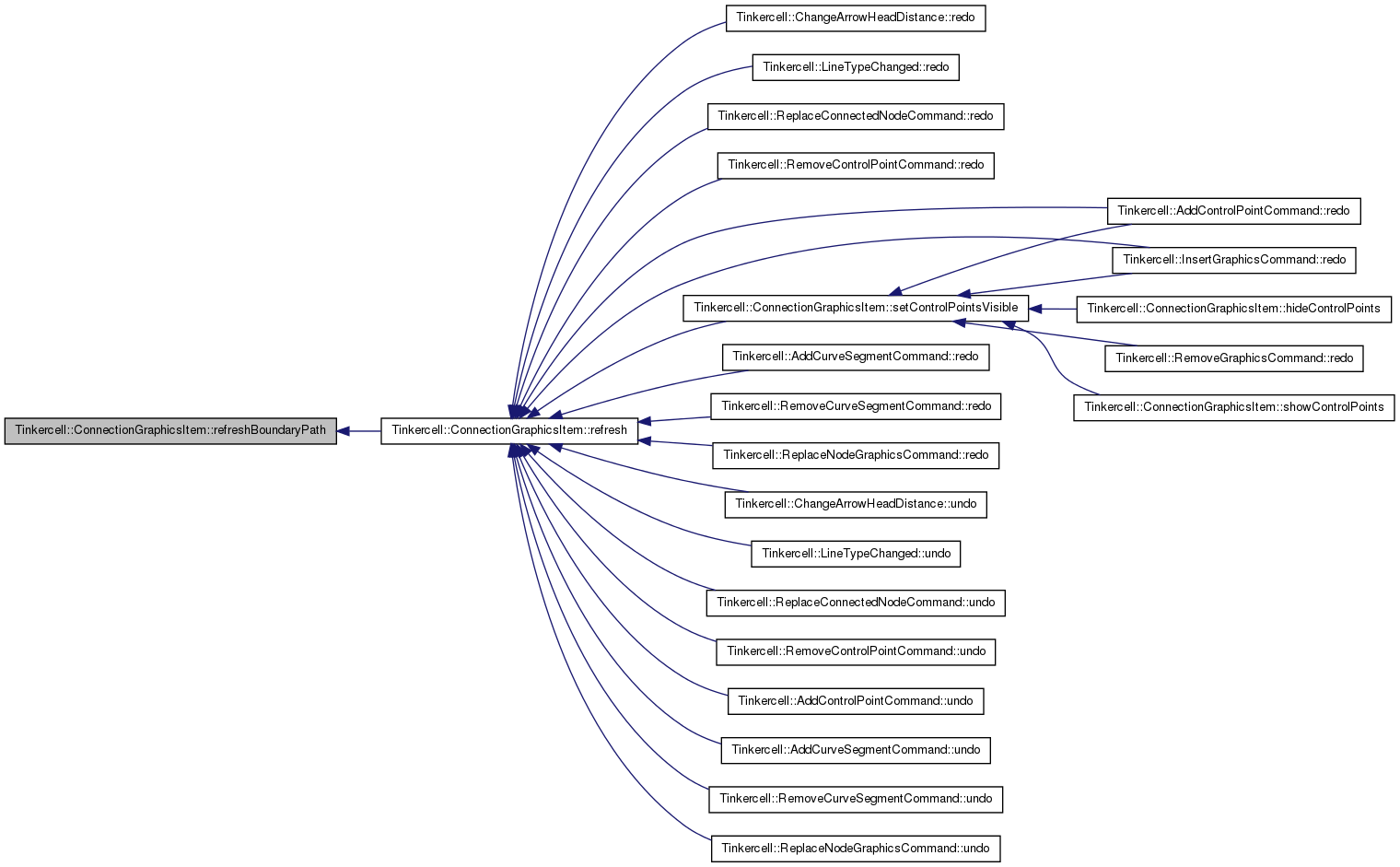

Here is the caller graph for this function:

void Tinkercell::ConnectionGraphicsItem::replaceNode	(	NodeGraphicsItem *	oldNode,
		NodeGraphicsItem *	newNode
	)		`[virtual]`

replace one node in the reaction with another

Parameters:

target	node to replace
new	node

Returns:: void

Definition at line 1720 of file ConnectionGraphicsItem.cpp.

Here is the caller graph for this function:

void Tinkercell::ConnectionGraphicsItem::replaceNodeAt	(	int	index,
		NodeGraphicsItem *	nodeItem
	)		`[virtual]`

replace the node at the particular position with a new node

Parameters:

index	where to insert the new node
new	node

Returns:: void

Definition at line 1736 of file ConnectionGraphicsItem.cpp.

QRectF Tinkercell::ConnectionGraphicsItem::sceneBoundingRect ( ) const [virtual]

scene bounding rect

Definition at line 1302 of file ConnectionGraphicsItem.cpp.

void Tinkercell::ConnectionGraphicsItem::setControlPointsVisible ( bool visible = true ) [virtual]

set visibility of control points

Parameters:

visible = true, invisible = false

Returns:: void

Definition at line 1248 of file ConnectionGraphicsItem.cpp.

Here is the call graph for this function:

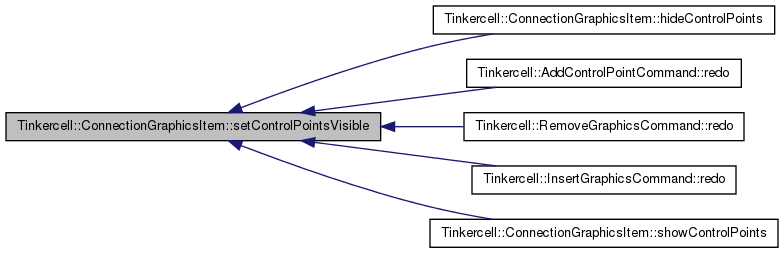

Here is the caller graph for this function:

void Tinkercell::ConnectionGraphicsItem::setHandle ( ItemHandle * handle ) [virtual]

set the handle of this connection

Definition at line 38 of file ConnectionGraphicsItem.cpp.

Here is the call graph for this function:

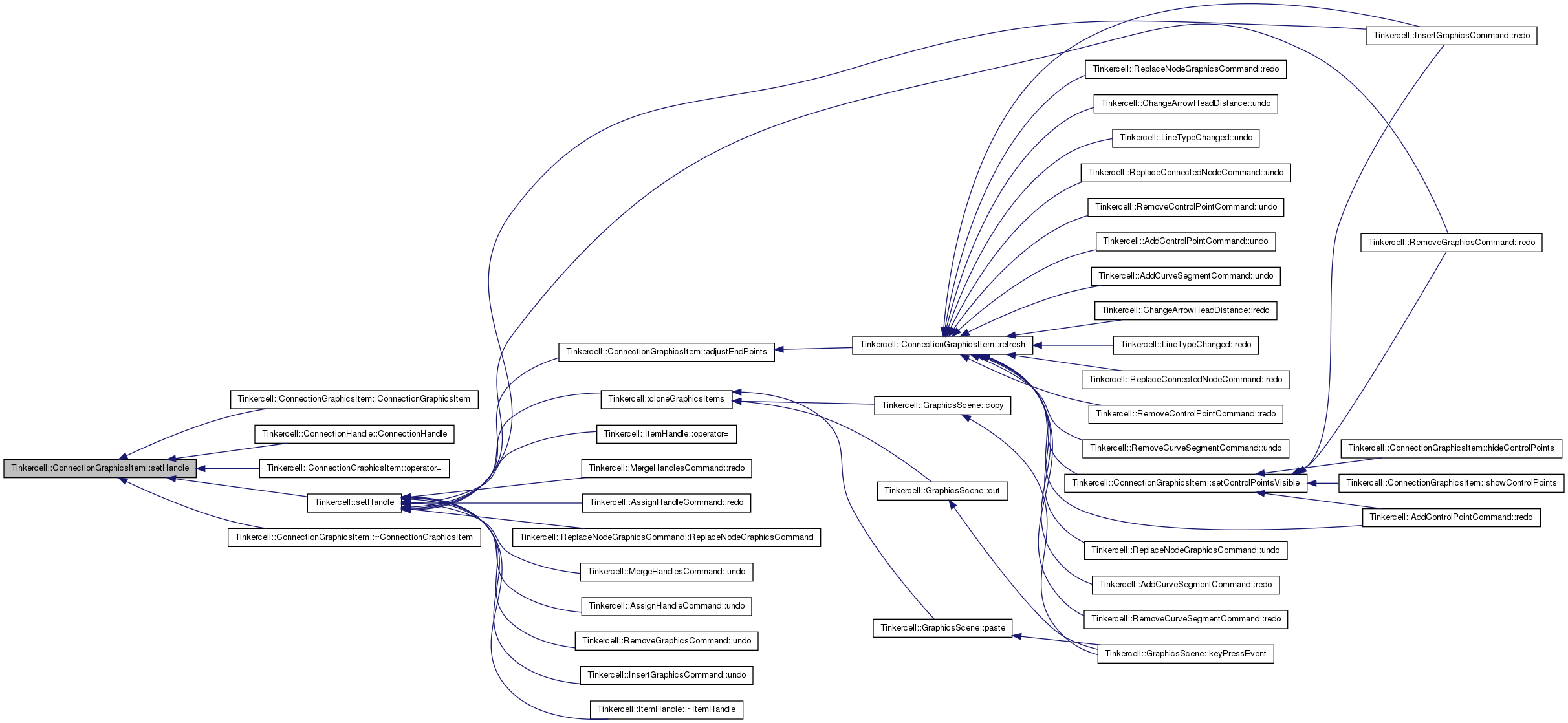

Here is the caller graph for this function:

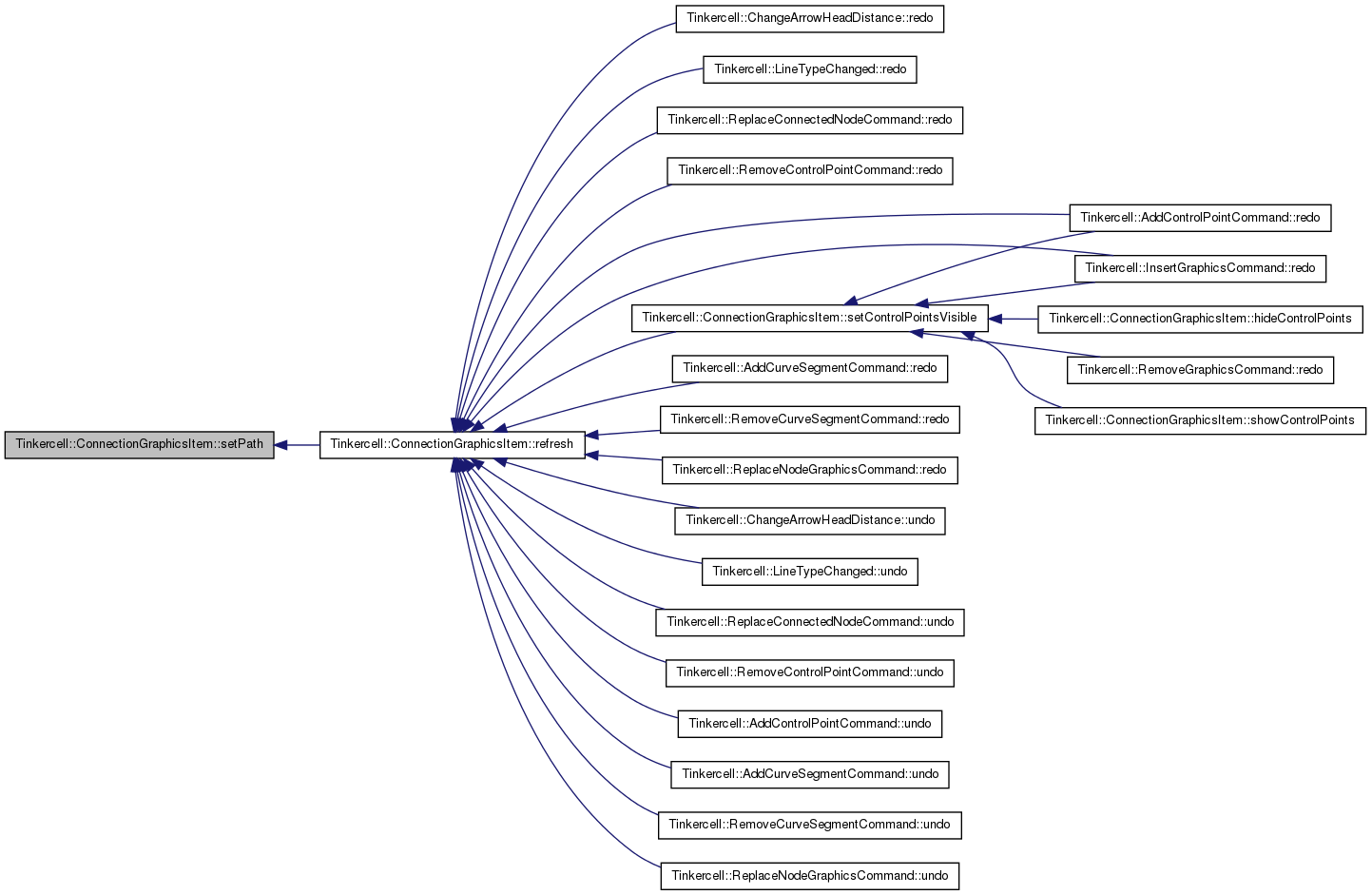

void Tinkercell::ConnectionGraphicsItem::setPath ( const QPainterPath & path ) [virtual]

set the path for this connection

Parameters:

QPainterPath path

Returns:: void

Definition at line 442 of file ConnectionGraphicsItem.cpp.

Here is the call graph for this function:

Here is the caller graph for this function:

void Tinkercell::ConnectionGraphicsItem::setPen	(	QPen	pen,
		bool	permanently = `false`
	)		`[virtual]`

set the color and line width for drawing this connection

Parameters:

QPen	pen
bool	also set the default pen?

Returns:: void

Definition at line 434 of file ConnectionGraphicsItem.cpp.

Here is the call graph for this function:

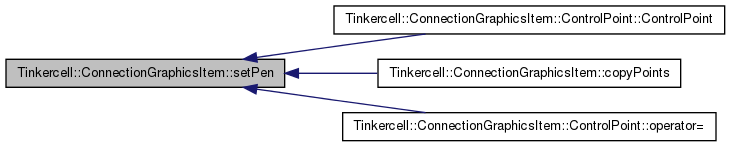

Here is the caller graph for this function:

QPainterPath Tinkercell::ConnectionGraphicsItem::shape ( ) const [virtual]

gets a path that represents this reaction

gets a path that is constructed by uniting all the shape paths

Definition at line 579 of file ConnectionGraphicsItem.cpp.

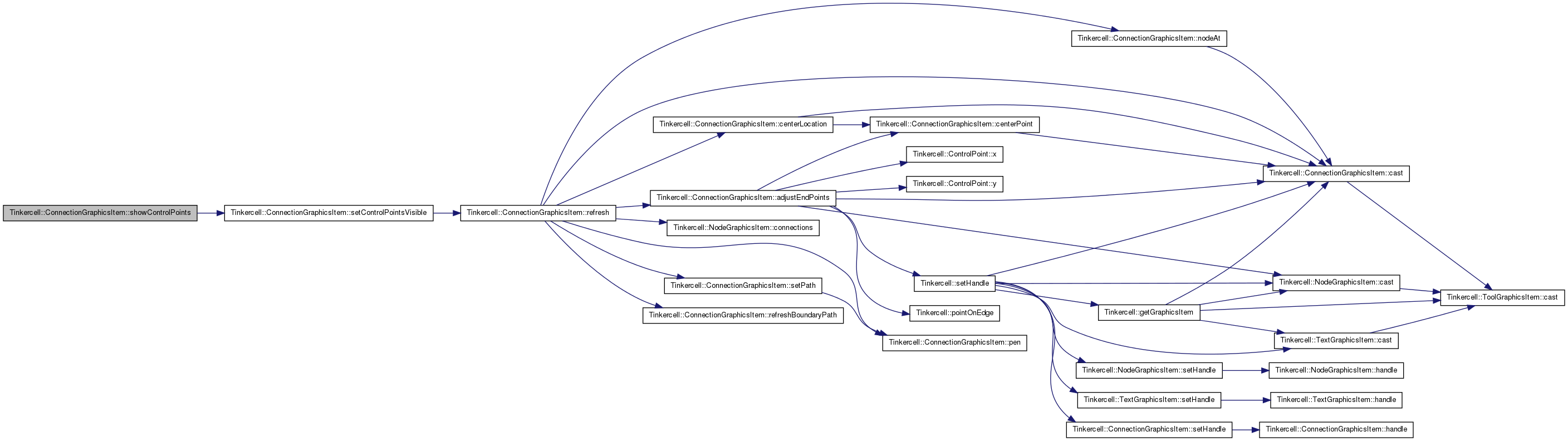

void Tinkercell::ConnectionGraphicsItem::showControlPoints ( )

show control points. same as setControlPointsVisible(true)

Returns:: void

Definition at line 1285 of file ConnectionGraphicsItem.cpp.

Here is the call graph for this function:

qreal Tinkercell::ConnectionGraphicsItem::slopeAtPoint ( const QPointF & point ) [virtual]

get slope at the given point (or closest point)

find slope at the given point (or closest point)

Definition at line 1224 of file ConnectionGraphicsItem.cpp.

ConnectionGraphicsItem * Tinkercell::ConnectionGraphicsItem::topLevelConnectionItem	(	QGraphicsItem *	item,
		bool	includeControlPoints = `false`
	)		`[static]`
