This class is used to run specific functions inside a C dynamic library as a separate thread. Uses CThread to call the C functions. More...

#include <MultithreadedSliderWidget.h>

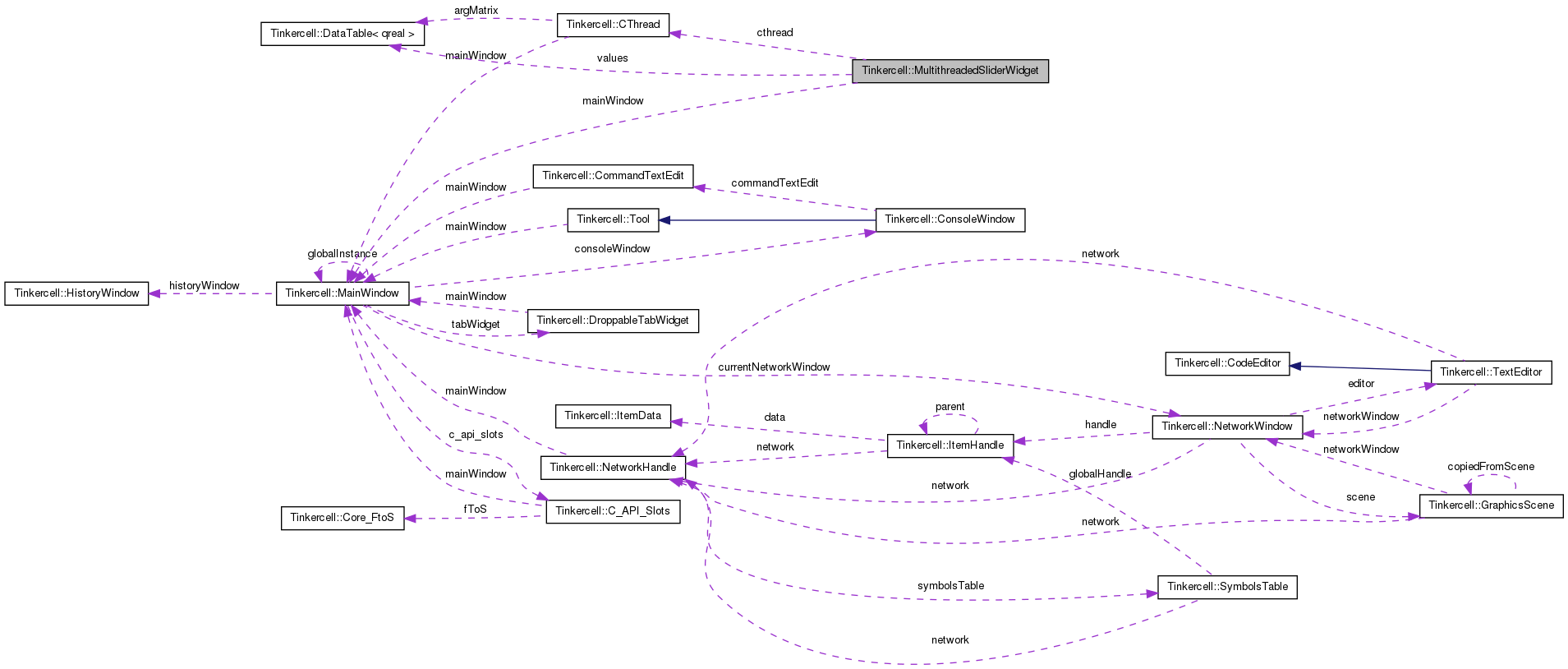

Collaboration diagram for Tinkercell::MultithreadedSliderWidget:

[legend]

List of all members.

Public Slots
virtual void	setSliders (const QStringList &options, const QList< double > &minValues, const QList< double > &maxValues)
	setup the sliders options and initial values
virtual void	setVisibleSliders (const QStringList &options)
	set the sliders visible
virtual void	setVisibleSliders (const QString &substring)
	set the sliders visible if the slider name has the given string as a substring
Signals
void	valuesChanged (DataTable< qreal >)
	the values in the slider have changed
Public Member Functions
	MultithreadedSliderWidget (MainWindow parent, CThread thread=0, Qt::Orientation orientation=Qt::Horizontal)
	constructor
	MultithreadedSliderWidget (MainWindow *parent, const QString &lib, const QString &functionName, Qt::Orientation orientation=Qt::Horizontal)
	constructor
virtual CThread *	thread () const
	the cthread that is run every time the sliders change
virtual void	setThread (CThread *)
	the cthread that is run every time the sliders change
virtual void	setDefaultDataTable (const QString &)
	This is the data table that will be altered when no appropriate data is available. For example, if one of the sliders is labeled "A" and the default table is set to "bla", then changing the slider for "A" will result in change to "A.bla[0,0]".
virtual DataTable< qreal >	data () const
	table containing the variables, current values, min and max
Protected Slots
virtual void	valueChanged ()
	whenver the value text change, the function in the C library is called
virtual void	sliderChanged (int)
	whenver the sliders change, the function in the C library is called
virtual void	minmaxChanged ()
	whenver the text change, the function in the C library is called
virtual void	saveValues ()
	copy the values from the slider to the model
Protected Attributes
CThread *	cthread
	whenver the slides change, cthread->start() is called
Qt::Orientation	orientation
	orientation of the sliders
DataTable< qreal >	values
	table storing slider values
QList< QLabel * >	labels
	slider labels in same order as sliders list
QList< QSlider * >	sliders
	all the sliders
QList< QLineEdit * >	minline
	slider min, max, and values in same order as sliders list
QList< QLineEdit * >	maxline
QList< QLineEdit * >	valueline
QList< double >	min
	slider min and max in same order as sliders list
QList< double >	max
QVBoxLayout *	slidersLayout
	slider layout
QHash< QString, QWidget * >	sliderWidgets
	sliders by name
MainWindow *	mainWindow
	main window
QString	defaultDataTable
	This is the data table that will be altered when no appropriate data is available. For example, if one of the sliders is labeled "A" and the default table is set to "bla", then changing the slider for "A" will result in change to "A.bla[0,0]".

Detailed Description

This class is used to run specific functions inside a C dynamic library as a separate thread. Uses CThread to call the C functions.

Definition at line 32 of file MultithreadedSliderWidget.h.

Constructor & Destructor Documentation

Tinkercell::MultithreadedSliderWidget::MultithreadedSliderWidget	(	MainWindow *	parent,
		CThread *	thread = `0`,
		Qt::Orientation	orientation = `Qt::Horizontal`
	)

constructor

Parameters:

QWidget	* parent
CThread	* the thread that is already setup with the correct library and function
Qt::Orientation	orientation

Definition at line 74 of file MultithreadedSliderWidget.cpp.

Here is the call graph for this function:

Tinkercell::MultithreadedSliderWidget::MultithreadedSliderWidget	(	MainWindow *	parent,
		const QString &	lib,
		const QString &	functionName,
		Qt::Orientation	orientation = `Qt::Horizontal`
	)

constructor

Parameters:

QWidget	* parent
QString	the name of the dynamic library to load
QString	name of function in the library with signature void f(Matrix)
Qt::Orientation	orientation

Definition at line 84 of file MultithreadedSliderWidget.cpp.

Here is the call graph for this function:

Member Function Documentation

DataTable< qreal > Tinkercell::MultithreadedSliderWidget::data ( ) const [virtual]

table containing the variables, current values, min and max

Definition at line 433 of file MultithreadedSliderWidget.cpp.

void Tinkercell::MultithreadedSliderWidget::minmaxChanged ( ) [protected, virtual, slot]

whenver the text change, the function in the C library is called

Definition at line 105 of file MultithreadedSliderWidget.cpp.

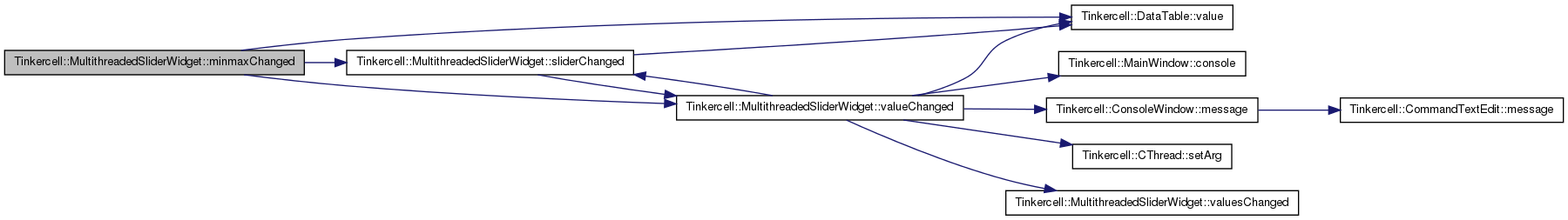

Here is the call graph for this function:

Here is the caller graph for this function:

void Tinkercell::MultithreadedSliderWidget::saveValues ( ) [protected, virtual, slot]

copy the values from the slider to the model

Definition at line 443 of file MultithreadedSliderWidget.cpp.

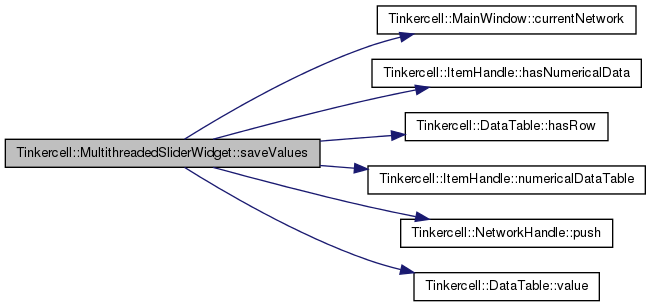

Here is the call graph for this function:

Here is the caller graph for this function:

void Tinkercell::MultithreadedSliderWidget::setDefaultDataTable ( const QString & s ) [virtual]

This is the data table that will be altered when no appropriate data is available. For example, if one of the sliders is labeled "A" and the default table is set to "bla", then changing the slider for "A" will result in change to "A.bla[0,0]".

Definition at line 438 of file MultithreadedSliderWidget.cpp.

void Tinkercell::MultithreadedSliderWidget::setSliders	(	const QStringList &	options,
		const QList< double > &	minValues,
		const QList< double > &	maxValues
	)		`[virtual, slot]`

setup the sliders options and initial values

Parameters:

QStringList	names for the sliders
QList<double>	minimum value for each of the sliders
QList<double>	maximum value for each of the sliders

Definition at line 213 of file MultithreadedSliderWidget.cpp.

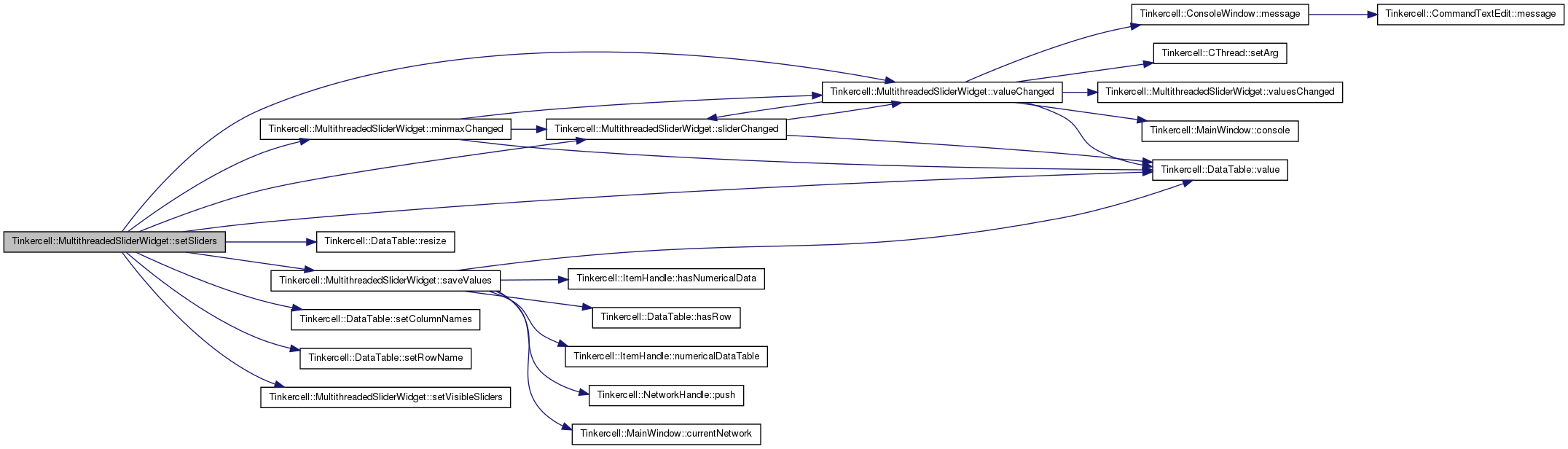

Here is the call graph for this function:

void Tinkercell::MultithreadedSliderWidget::setThread ( CThread * t ) [virtual]

the cthread that is run every time the sliders change

Definition at line 100 of file MultithreadedSliderWidget.cpp.

void Tinkercell::MultithreadedSliderWidget::setVisibleSliders ( const QString & substring ) [virtual, slot]

set the sliders visible if the slider name has the given string as a substring

Parameters:

QString substring for the slider names

Definition at line 25 of file MultithreadedSliderWidget.cpp.

Here is the call graph for this function:

void Tinkercell::MultithreadedSliderWidget::setVisibleSliders ( const QStringList & options ) [virtual, slot]

set the sliders visible

Parameters:

QStringList names for the sliders

Definition at line 41 of file MultithreadedSliderWidget.cpp.

Here is the caller graph for this function:

void Tinkercell::MultithreadedSliderWidget::sliderChanged ( int ) [protected, virtual, slot]

whenver the sliders change, the function in the C library is called

Definition at line 197 of file MultithreadedSliderWidget.cpp.

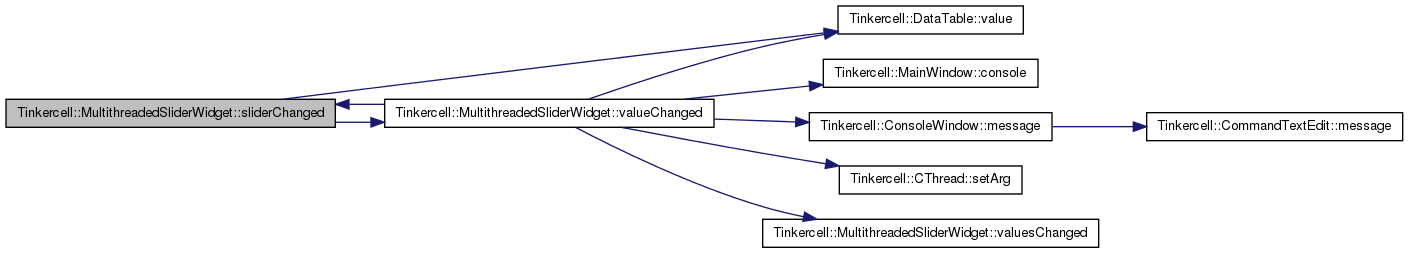

Here is the call graph for this function:

Here is the caller graph for this function:

CThread * Tinkercell::MultithreadedSliderWidget::thread ( ) const [virtual]

the cthread that is run every time the sliders change

Definition at line 95 of file MultithreadedSliderWidget.cpp.

Here is the caller graph for this function:

void Tinkercell::MultithreadedSliderWidget::valueChanged ( ) [protected, virtual, slot]

whenver the value text change, the function in the C library is called

Definition at line 139 of file MultithreadedSliderWidget.cpp.

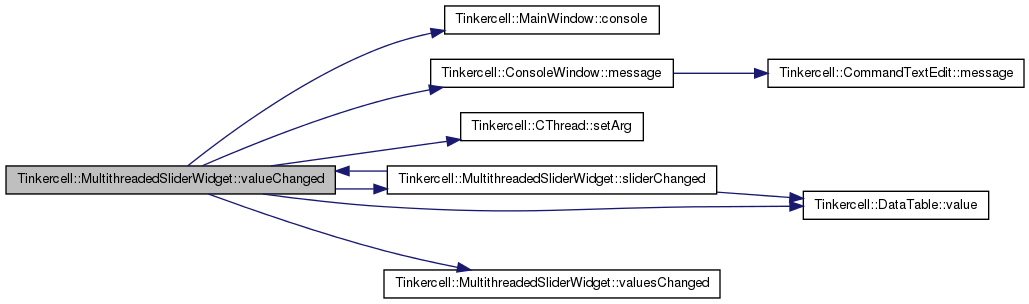

Here is the call graph for this function:

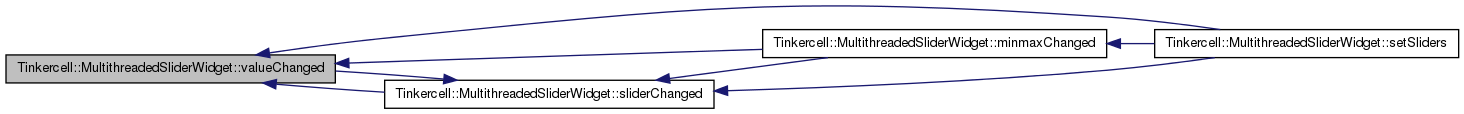

Here is the caller graph for this function:

void Tinkercell::MultithreadedSliderWidget::valuesChanged ( DataTable< qreal > ) [signal]

the values in the slider have changed

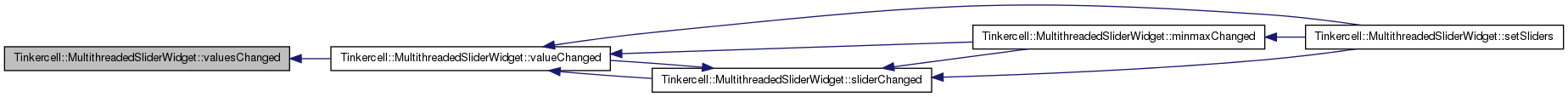

Here is the caller graph for this function:

Member Data Documentation

CThread* Tinkercell::MultithreadedSliderWidget::cthread [protected]

whenver the slides change, cthread->start() is called

Definition at line 133 of file MultithreadedSliderWidget.h.

QString Tinkercell::MultithreadedSliderWidget::defaultDataTable [protected]

This is the data table that will be altered when no appropriate data is available. For example, if one of the sliders is labeled "A" and the default table is set to "bla", then changing the slider for "A" will result in change to "A.bla[0,0]".

Definition at line 175 of file MultithreadedSliderWidget.h.

QList< QLabel* > Tinkercell::MultithreadedSliderWidget::labels [protected]

slider labels in same order as sliders list

Definition at line 145 of file MultithreadedSliderWidget.h.

MainWindow* Tinkercell::MultithreadedSliderWidget::mainWindow [protected]

main window

Definition at line 169 of file MultithreadedSliderWidget.h.

QList<double> Tinkercell::MultithreadedSliderWidget::max [protected]

Definition at line 157 of file MultithreadedSliderWidget.h.

QList< QLineEdit* > Tinkercell::MultithreadedSliderWidget::maxline [protected]

Definition at line 153 of file MultithreadedSliderWidget.h.

QList<double> Tinkercell::MultithreadedSliderWidget::min [protected]
