this command can be used to replace the graphical representation of a node from an xml file More...

Inheritance diagram for Tinkercell::ReplaceNodeGraphicsCommand:

Collaboration diagram for Tinkercell::ReplaceNodeGraphicsCommand:

Public Member Functions
	ReplaceNodeGraphicsCommand (const QString &, NodeGraphicsItem *, const QString &, bool transform=true)
	constructor
	ReplaceNodeGraphicsCommand (const QString &, const QList< NodeGraphicsItem * > &, const QList< QString > &, bool transform=true)
	constructor
void	undo ()
void	redo ()
	~ReplaceNodeGraphicsCommand ()

Detailed Description

this command can be used to replace the graphical representation of a node from an xml file

Definition at line 570 of file UndoCommands.h.

Constructor & Destructor Documentation

Tinkercell::ReplaceNodeGraphicsCommand::ReplaceNodeGraphicsCommand	(	const QString &	text,
		NodeGraphicsItem *	node,
		const QString &	filename,
		bool	transform = `true`
	)

constructor

Parameters:

QString	name of command
NodeGraphicsItem*	the target node
QString	xml file name
bool	whether or not to transform the new graphics item to the original item's angle and size

Definition at line 2784 of file UndoCommands.cpp.

Tinkercell::ReplaceNodeGraphicsCommand::ReplaceNodeGraphicsCommand	(	const QString &	text,
		const QList< NodeGraphicsItem * > &	nodes,
		const QList< QString > &	filenames,
		bool	transform = `true`
	)

constructor

Parameters:

QString	name of command
QList<NodeGraphicsItem*>	the target nodes
QStringList	xml file names
bool	whether or not to transform the new graphics item to the original item's angle and size

Definition at line 2799 of file UndoCommands.cpp.

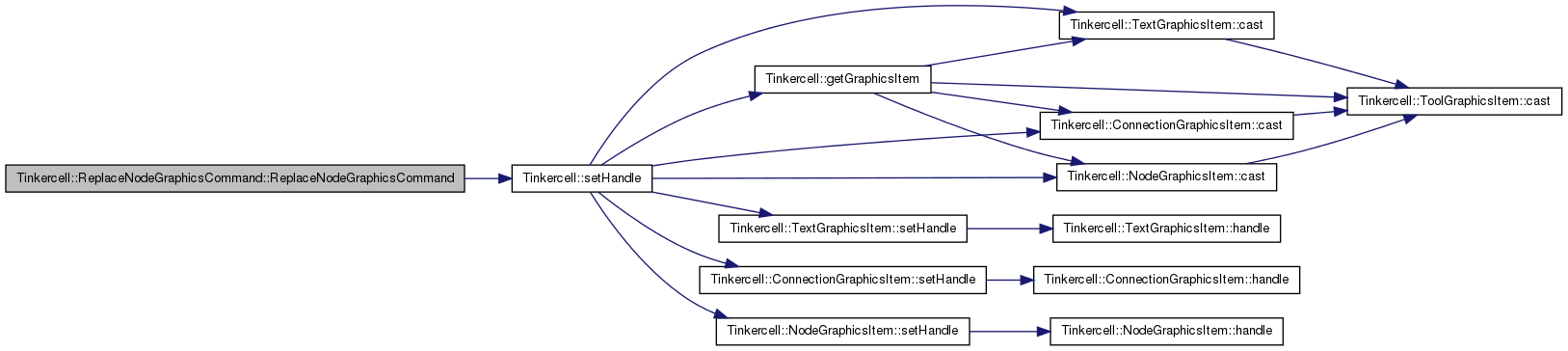

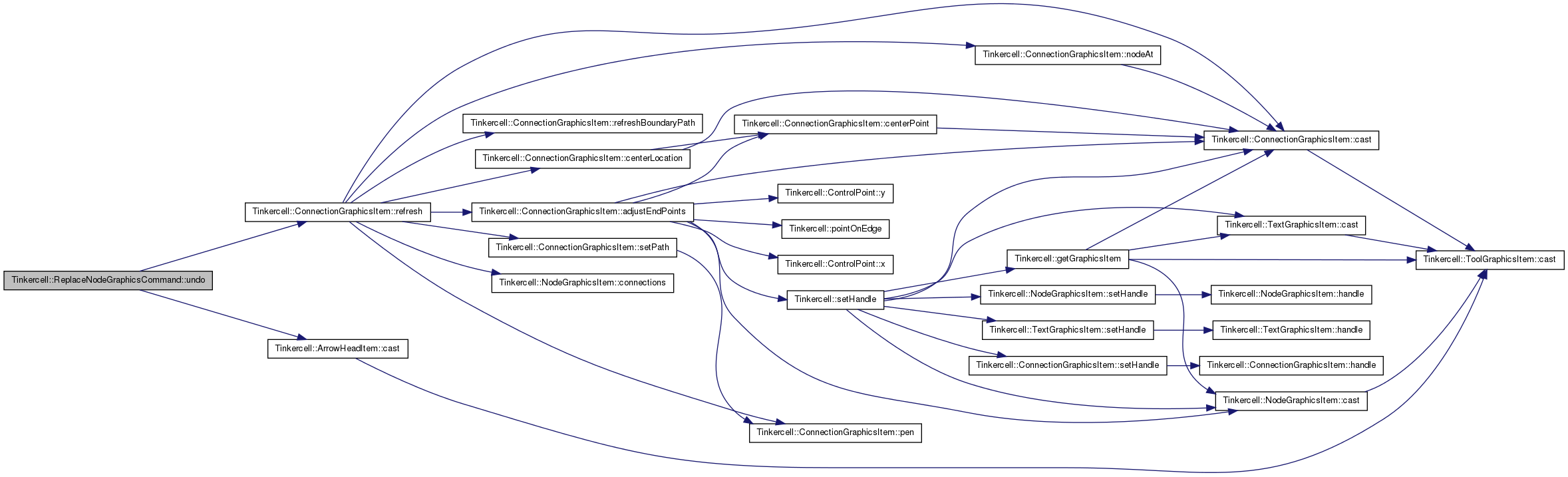

Here is the call graph for this function:
