A command-line type text box that other tools can use for scripting interface. More...

#include <ConsoleWindow.h>

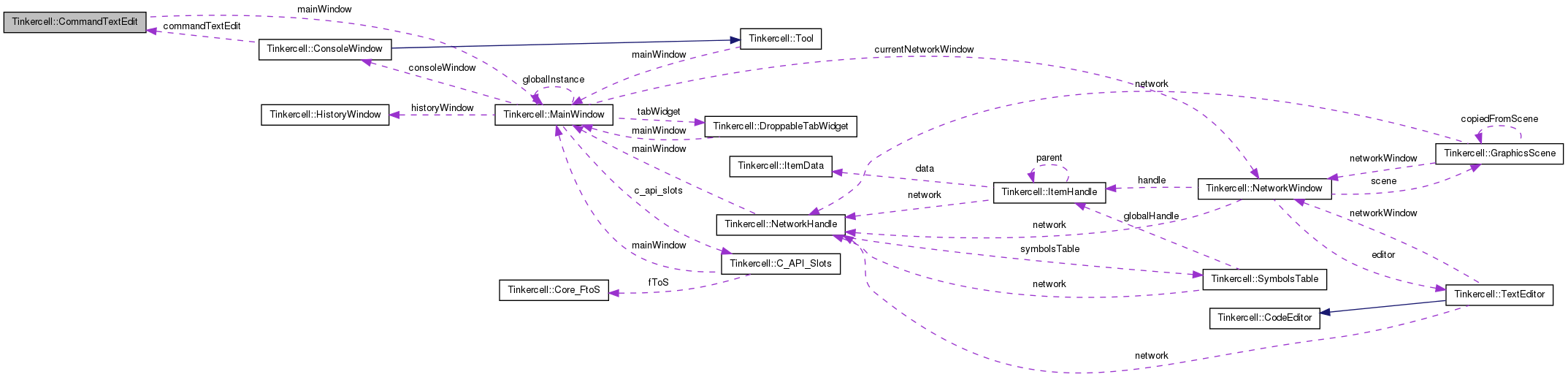

Collaboration diagram for Tinkercell::CommandTextEdit:

Public Slots
virtual void	eval (const QString &)
	evaluate a command (just emits a commandExecuted signal)
virtual void	error (const QString &)
	post an error message to this console text box
virtual void	message (const QString &)
	post a message to this console text box
virtual void	clearText ()
	clear all text
virtual void	freeze ()
	equivalent to setFreeze(true)
virtual void	unfreeze ()
	equivalent to setFreeze(false)
virtual void	setFreeze (bool frozen=true)
	Set frozen state. The text box will not respond to user inputs while it is frozen.
virtual void	setBackgroundColor (const QColor &)
	set background color
virtual void	setPlainTextColor (const QColor &)
	set plain text color
virtual void	setOutputTextColor (const QColor &)
	set output message color
virtual void	setErrorTextColor (const QColor &)
	set error message color
virtual void	setTableTextColor (const QColor &)
	set table headers color
Signals
void	commandExecuted (const QString &command)
	the user requested to execute the given command
void	commandInterrupted ()
	the user requested to interrupt the current process
Public Member Functions
	CommandTextEdit (MainWindow *parent=0)
	default constructor
virtual bool	isFrozen ()
	Whether or not this console in the frozen state. The text box will not add or remove text while it is frozen.
void	setCompleter (QCompleter *c)
	set code completion
QCompleter *	completer () const
	code completion
virtual QString	lastError () const
	last error message
virtual QString	lastMessage () const
	last message
Protected Member Functions
virtual void	keyPressEvent (QKeyEvent *event)
	manages the console-type interface, where the user is not allowed to type outside the >>
virtual void	wheelEvent (QWheelEvent *wheelEvent)
	zoom in or out using mouse wheel
virtual void	focusInEvent (QFocusEvent *e)
	focus returned from code completer
Protected Attributes
QStringList	historyStack
	list of previously executed commands
QStringList	messagesStack
	list of messages pending
QStringList	errorsStack
	list of errors pending
QString	_lastError
	last error message
QString	_lastOutput
	last output message
int	currentHistoryIndex
	current position in the history of commands
int	currentPosition
	current position of the cursor in the text box
bool	frozen
	frozen state = 0 or 1
QTextCharFormat	errorFormat
	font format for error messages
QTextCharFormat	messageFormat
	font format for regular messages
QTextCharFormat	tableHeaderFormat
	font format for table headers
QTextCharFormat	normalFormat
	font format for user inputs
Friends
class	ConsoleWindow

Detailed Description

A command-line type text box that other tools can use for scripting interface.

Definition at line 37 of file ConsoleWindow.h.

Constructor & Destructor Documentation

Tinkercell::CommandTextEdit::CommandTextEdit ( MainWindow * parent = 0 )

default constructor

Definition at line 106 of file ConsoleWindow.cpp.

Member Function Documentation

void Tinkercell::CommandTextEdit::clearText ( ) [virtual, slot]

clear all text

Definition at line 235 of file ConsoleWindow.cpp.

Here is the caller graph for this function:

void Tinkercell::CommandTextEdit::commandExecuted ( const QString & command ) [signal]

the user requested to execute the given command

Here is the caller graph for this function:

void Tinkercell::CommandTextEdit::commandInterrupted ( ) [signal]

the user requested to interrupt the current process

Here is the caller graph for this function:

QCompleter * Tinkercell::CommandTextEdit::completer ( ) const

code completion

Definition at line 74 of file ConsoleWindow.cpp.

Here is the caller graph for this function:

void Tinkercell::CommandTextEdit::error ( const QString & s ) [virtual, slot]

post an error message to this console text box

Definition at line 176 of file ConsoleWindow.cpp.

Here is the caller graph for this function:

void Tinkercell::CommandTextEdit::eval ( const QString & command ) [virtual, slot]

evaluate a command (just emits a commandExecuted signal)

Definition at line 315 of file ConsoleWindow.cpp.

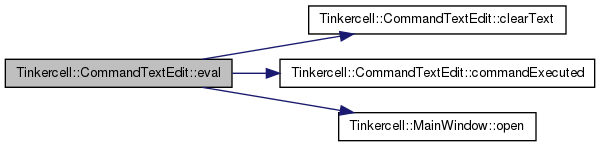

Here is the call graph for this function:

Here is the caller graph for this function:

void Tinkercell::CommandTextEdit::focusInEvent ( QFocusEvent * e ) [protected, virtual]

focus returned from code completer

Definition at line 98 of file ConsoleWindow.cpp.

void Tinkercell::CommandTextEdit::freeze ( ) [virtual, slot]

equivalent to setFreeze(true)

Definition at line 251 of file ConsoleWindow.cpp.

Here is the call graph for this function:

Here is the caller graph for this function:

bool Tinkercell::CommandTextEdit::isFrozen ( ) [virtual]

Whether or not this console in the frozen state. The text box will not add or remove text while it is frozen.

Definition at line 171 of file ConsoleWindow.cpp.

void Tinkercell::CommandTextEdit::keyPressEvent ( QKeyEvent * event ) [protected, virtual]

manages the console-type interface, where the user is not allowed to type outside the >>

Definition at line 357 of file ConsoleWindow.cpp.

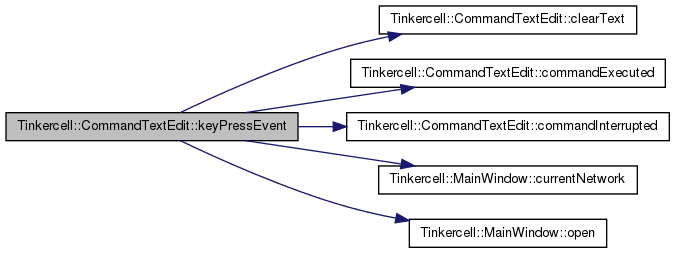

Here is the call graph for this function:

QString Tinkercell::CommandTextEdit::lastError ( ) const [virtual]

last error message

Definition at line 926 of file ConsoleWindow.cpp.

QString Tinkercell::CommandTextEdit::lastMessage ( ) const [virtual]

last message

Definition at line 931 of file ConsoleWindow.cpp.

void Tinkercell::CommandTextEdit::message ( const QString & s ) [virtual, slot]

post a message to this console text box

Definition at line 203 of file ConsoleWindow.cpp.

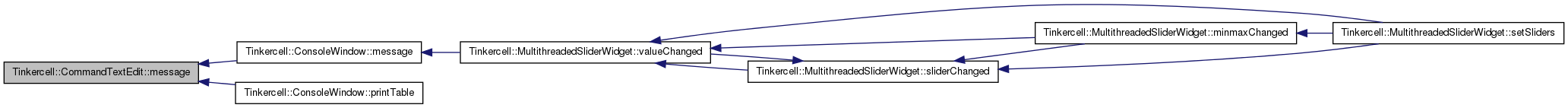

Here is the caller graph for this function:

void Tinkercell::CommandTextEdit::setBackgroundColor ( const QColor & c ) [virtual, slot]

set background color

Definition at line 25 of file ConsoleWindow.cpp.

void Tinkercell::CommandTextEdit::setCompleter ( QCompleter * c )

set code completion

Definition at line 57 of file ConsoleWindow.cpp.

Here is the call graph for this function:

void Tinkercell::CommandTextEdit::setErrorTextColor ( const QColor & c ) [virtual, slot]

set error message color

Definition at line 45 of file ConsoleWindow.cpp.

void Tinkercell::CommandTextEdit::setFreeze ( bool frozen = true ) [virtual, slot]

Set frozen state. The text box will not respond to user inputs while it is frozen.

Definition at line 261 of file ConsoleWindow.cpp.

Here is the caller graph for this function:

void Tinkercell::CommandTextEdit::setOutputTextColor ( const QColor & c ) [virtual, slot]

set output message color

Definition at line 39 of file ConsoleWindow.cpp.

void Tinkercell::CommandTextEdit::setPlainTextColor ( const QColor & c ) [virtual, slot]

set plain text color

Definition at line 32 of file ConsoleWindow.cpp.

void Tinkercell::CommandTextEdit::setTableTextColor ( const QColor & c ) [virtual, slot]

set table headers color

Definition at line 51 of file ConsoleWindow.cpp.

void Tinkercell::CommandTextEdit::unfreeze ( ) [virtual, slot]

equivalent to setFreeze(false)

Definition at line 256 of file ConsoleWindow.cpp.

Here is the call graph for this function:

Here is the caller graph for this function:

void Tinkercell::CommandTextEdit::wheelEvent ( QWheelEvent * wheelEvent ) [protected, virtual]

zoom in or out using mouse wheel

Definition at line 154 of file ConsoleWindow.cpp.

Friends And Related Function Documentation

friend class ConsoleWindow [friend]

Definition at line 140 of file ConsoleWindow.h.

Member Data Documentation

QString Tinkercell::CommandTextEdit::_lastError [protected]

last error message

Definition at line 98 of file ConsoleWindow.h.

QString Tinkercell::CommandTextEdit::_lastOutput [protected]

last output message

Definition at line 100 of file ConsoleWindow.h.

int Tinkercell::CommandTextEdit::currentHistoryIndex [protected]

current position in the history of commands

Definition at line 102 of file ConsoleWindow.h.

int Tinkercell::CommandTextEdit::currentPosition [protected]

current position of the cursor in the text box

Definition at line 104 of file ConsoleWindow.h.

QTextCharFormat Tinkercell::CommandTextEdit::errorFormat [protected]

font format for error messages

Definition at line 108 of file ConsoleWindow.h.

QStringList Tinkercell::CommandTextEdit::errorsStack [protected]

list of errors pending

Definition at line 96 of file ConsoleWindow.h.

bool Tinkercell::CommandTextEdit::frozen [protected]

frozen state = 0 or 1

Definition at line 106 of file ConsoleWindow.h.

QStringList Tinkercell::CommandTextEdit::historyStack [protected]

list of previously executed commands

Definition at line 92 of file ConsoleWindow.h.

QTextCharFormat Tinkercell::CommandTextEdit::messageFormat [protected]

font format for regular messages

Definition at line 110 of file ConsoleWindow.h.

QStringList Tinkercell::CommandTextEdit::messagesStack [protected]

list of messages pending

Definition at line 94 of file ConsoleWindow.h.

QTextCharFormat Tinkercell::CommandTextEdit::normalFormat [protected]

font format for user inputs

Definition at line 114 of file ConsoleWindow.h.

QTextCharFormat Tinkercell::CommandTextEdit::tableHeaderFormat [protected]

font format for table headers

Definition at line 112 of file ConsoleWindow.h.

The documentation for this class was generated from the following files:
