ConnectionGraphicsItem.h File Reference

#include <math.h>
#include <QtDebug>
#include <QString>
#include <QColor>
#include <QPointF>
#include <QPainter>
#include <QGraphicsEllipseItem>
#include <QGraphicsItem>
#include <QStyleOptionGraphicsItem>
#include <QGraphicsScene>
#include "NodeGraphicsItem.h"

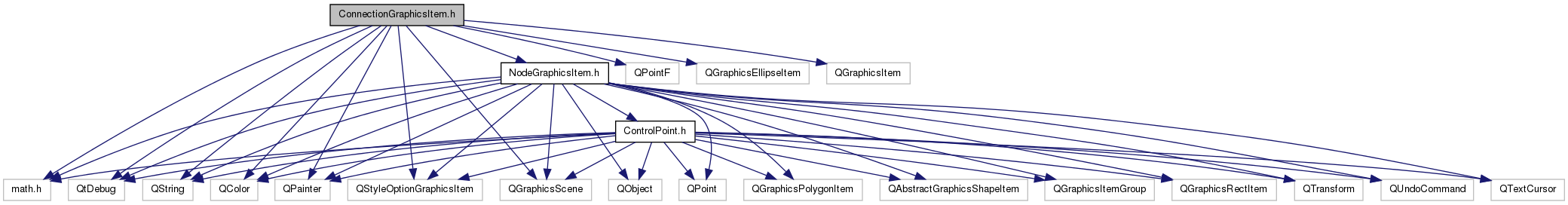

Include dependency graph for ConnectionGraphicsItem.h:

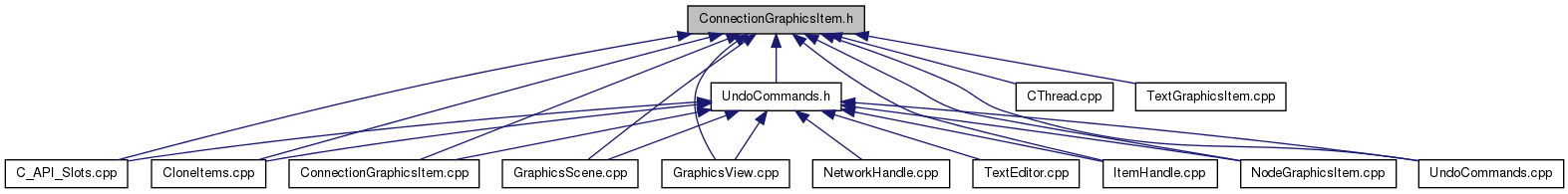

This graph shows which files directly or indirectly include this file:

Go to the source code of this file.

Classes
class	Tinkercell::ArrowHeadItem
	A node graphics item that is used to draw arrow heads on connection items. More...
class	Tinkercell::ConnectionGraphicsItem
	A graphics nodes item that draws connection between two or more nodes and the arrow heads at the ends. More...
class	Tinkercell::ConnectionGraphicsItem::ControlPoint
	A control point with a pointer to a ConnectionGraphicsItem. More...
class	Tinkercell::ConnectionGraphicsItem::CurveSegment
	A set of control points and two arrow heads. More...
Namespaces
namespace	Tinkercell
Functions
QPointF	Tinkercell::pointOnEdge (const QRectF &rect0, const QPointF &p1, qreal dist, bool straight)
	gets the point on the edge of the rect such that it is in the same line as the center of the rect and the point (arg)
QPointF	Tinkercell::pointOnEdge (const NodeGraphicsItem &node, const QPointF &pt, qreal dist, bool straight)
	gets the point on the edge of the shape such that it is in the same line as the center of the rect and the point (arg)
